  • Page 2: Table Of Contents

    COMMENTS ON OPERATION.......................... 42 WORK WITH POWER GENERATORS ......................42 STORAGE, MAINTENANCE, AND TRANSPORT..................43 UTILISATION..............................43 TECHNICAL PARAMETERS..........................44 INSTALLATION GUIDELINES ........................44 TECHNICAL DATA ............................45 LEGAL REGULATIONS AND THE GUARANTEE ..................46 DECLARATION OF CONFORMITY ......................46 www.ever.eu 2010/06/22...

  • Page 3: Introduction

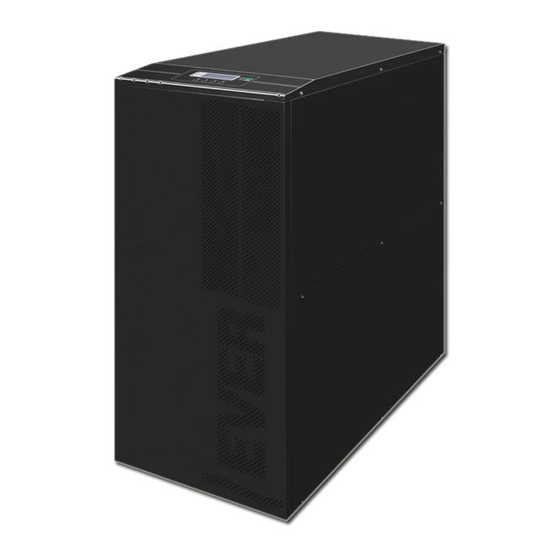

    Thank you for purchasing EVER POWERLINE 33 – an advanced UPS series dedicated to servers, computer networks, and data processing systems. UPS EVER POWERLINE 33 is designed to meet all of your expectations related to protection against power outages in the best way.
  • Page 4 An additional manual bypass connection enables the complete switch of the load to the mains. The receivers are then backed up from the mains with the internal UPS modules bypassed. www.ever.eu 2010/06/22...

  • Page 5: Ups Structure

    3) Input and output sockets 4) DC input safeguard (F5) - optional 5) Cable fixtures 6) UPS fixtures 7) Internal battery safeguard (F1, 8) Expansion card slot 9) EPO interface 10) USB port 11) RS232 port 12) Fans Figure 2: Rear panel www.ever.eu 2010/06/22...

  • Page 6: User Interface

    NORMAL BYPASS BACKUP STANDBY SUSPENDED EMERGENCY INIT STOP HIBRID E – if EPO is started, then signals are turned off. Otherwise, emergency mode signalling is turned on. F – depends on configuration (none or red). * - blinking www.ever.eu 2010/06/22...
  • Page 7 (50/50) Overheating slow beeps and pauses (50/50) EPO start beeps and pauses (1 sec./5 sec.) All LCD pages are based on a tree hierarchy shown in the below figure. Figure 4: LCD page hierarchy www.ever.eu 2010/06/22...
  • Page 8 (Configuration 3/4) rectifier block No communication with P) message ended by KasujAwarieProst i:BrakKomFal (Configuration 3/4) inverter block Incorrect phase order in i:ZlaKolejnoscFazByp BYPASS Exceeded BYPASS i:ZasBypPozaZakres parameters i:OtwartyObwAku Open battery circuit Exceeded inverter block i:ZasProstPozaZakres parameters Screen: www.ever.eu 2010/06/22...

  • Page 9: Main Menu

    . ESC moves one level up. POMIARY submenu The POMIARY submenu has two pages with five thematic groups: PROSTOWNIK, BYPASS, WYJSCIE, AKUMULATOR, TEMPERATURA. The menu is navigated similarly to the menu presented above. www.ever.eu 2010/06/22...
  • Page 10 PFLn - rectifier input power factor for line n Screen: PROSTOWNIK 5/5 Description: UPS input parameters Type: read Parameters: - total rectifier input active power - total rectifier input apparent power - rectifier input frequency (for line L1) Screen: www.ever.eu 2010/06/22...
  • Page 11 Per cent value – load level for line n. Screen: BYPASS 5/5 Description: BYPASS input parameters Type: read Parameters: - total BYPASS input active power - total BYPASS input apparent power - BYPASS frequency (for line L1) Per cent value – load level Screen: www.ever.eu 2010/06/22...
  • Page 12 Per cent value – load level for line n. Screen: WYJŚCIE 5/5 Description: UPS output parameters Type: read Parameters: - total output active power - total output apparent power - output frequency (for line L1) Per cent value – load level Screen: www.ever.eu 2010/06/22...
  • Page 13 TestAku is on; 100% (default) means full capacity of batteries Screen: TEMPERATURA 1/1 Description: Temperature parameters - temperature of internal UPS components Type: read Parameters: T0, T1, T2, T3 - temperature of internal UPS components Screen: www.ever.eu 2010/06/22...

  • Page 14: Kontrola Submenu

    - not saved, try again -- Zla wartość -- - parameter exceeds the permitted level The messages are displayed briefly at the bottom of the page, and then the page moves up one level. That rule applies to all changed parameters. www.ever.eu 2010/06/22...
  • Page 15 Screen: KONTROLA 3/4 Description: Control flag settings Type: read/save Parameters: UPS->Bypass - manual switch to BYPASS Bypass->UPS - manual switch to regular mode KasujAwarieProst - cancel EMERGENCY mode (rectifier error) KasujAwarieFal - cancel EMERGENCY mode (inverter error) Screen: www.ever.eu 2010/06/22...

  • Page 16: Konfiguracja Submenu

    A given change of a parameter can be cancelled by pressing ESC. KONFIGURACJA 1/5 Description: UPS parameters Type: read/save Parameters: UWyLn - output voltage for line n; after changing the parameter during inverter-based operation, the output voltage changes with the change of the operation mode Screen: www.ever.eu 2010/06/22...
  • Page 17 Parameters: frequencies for the mains fGornyProg - maximum frequency limit for the mains Opoz.STB - delay when changing to STANDBY after switch by user Poj. z STB. - minimum charge of batteries enabling start up after discharge Screen: www.ever.eu 2010/06/22...

  • Page 18: Alarmy Submenu

    EMERGENCY mode. ALARMY 1/3 Description: UPS alerts Type: read Parameters: Short circuit - short circuit in output during inverter-based operation PrzegrzaniePr - temperature to high in internal components (rectifier) PrzegrzanieFal - temperature to high in internal components (inverter) www.ever.eu 2010/06/22...

  • Page 19: Statystyka Submenu

    STATYSTYKA submenu has four pages. The menu is navigated similarly to the menu presented above. Pages are selected using ▲▼, and confirmed by pressing . The pages show information on the history of operation. STATYSTYKA 1/4 Description: Statistics Type: Read Parameters: www.ever.eu 2010/06/22...
  • Page 20 - period of operation with overload Normalna - period of operation in NORMAL mode Rezerwowa - period of operation in BACKUP mode Screen: STATYSTYKA 4/4 Description: Statistics Type: Read Parameters: Bypass - period of operation in BYPASS mode www.ever.eu 2010/06/22...

  • Page 21: Ustawienia Panelu Submenu

    Screen: USTAWIENIA PANELU 2/2 Description: User interface settings Type: read/save Parameters: Ustawienia czasu - clock settings Press to edit. Clock parameters are changed similarly as written above. Screen: www.ever.eu 2010/06/22...

  • Page 22: Identyfikacja Submenu

    – rectifier block Type: read Parameters: – hardware version – firmware version – communication protocol version Screen: IDENTYFIKACJA 3/3 Description: Device information – inverter block Type: read Parameters: – hardware version – firmware version – communication protocol version Screen: www.ever.eu 2010/06/22...

  • Page 23: Zdarzenia Submenu

    K PrzegProstOn / PrzegProstOff K PrzegFalownikOn / PrzegFalownikOff K OczekNaLadMinOn / OczekNaLadMinOff K AkuRozladowanyOn / AkuRozladowanyOff K SerwisOn / SerwisOff K BrakKomProstOn / BrakKomProstOff K ZlaKolFazBypOn / ZlaKolFazBypOff K ZasBypPozaZakrOn / ZasBypPozaZakrOff K OtwartyObwAkuOn / OtwartyObwAkuOff K ZasPrPozaZakrOn / ZasPrPozaZakrOff Screen: www.ever.eu 2010/06/22...

  • Page 24: Health And Safety

    NOTE! POWERLINE 33 power supply units are not intended for use with medical equipment to support life and/or health. www.ever.eu 2010/06/22...

  • Page 25: Installation

    PowerSoft Personal software and manual on CD, • RS232 computer communication cable, • USB computer communication cable, • set of safeguard fuse links, type 22x58 (2 pcs), • user manual, • installation guidelines, • guarantee card, • assembly fixtures – (2 pcs) www.ever.eu 2010/06/22...

  • Page 26: Assembly

    Additional battery packs will extend the battery mode work time. The battery packs have additional safeguard located on the rear panel. NOTE! If the safeguard fuse link is damaged, replace it with a new one that is compliant with the device specification. www.ever.eu 2010/06/22...

  • Page 27: Connection Of Modules

    10. Turn the device on based on the start-up procedure (Note! Remember to set the appropriate battery parameters (KONFIGURACJA 5/5)). Displayed data related to the number of connected batteries will be updated automatically after charging the batteries. Until then, the displayed numbers may not reflect the actual status. www.ever.eu 2010/06/22...

  • Page 28: Disconnection Of Modules

    Turn the device on based on the start-up procedure (Note! Remember to set the appropriate battery parameters (KONFIGURACJA 5/5)). NOTE! It is forbidden to leave any unconnected cable ends. They could be energised with a voltage level that is dangerous to health and/or life. www.ever.eu 2010/06/22...

  • Page 29: Connecting The Ups

    The installation must enable the disconnection of the power supply from the mains. NOTE! The UPS should only be connected by qualified and authorised personnel who are licensed in line with the applicable laws. www.ever.eu 2010/06/22...

  • Page 30: Electric Installation

    The electric system must comply with the installation guidelines that are applicable to the power supply unit. The guidelines are a separate document enclosed with the product. NOTE! The batteries reach full efficiency after approx. one month of NORMAL mode operation. www.ever.eu 2010/06/22...

  • Page 31: Start (Power From Mains)

    10) Configure the power supply unit (if the initial use or to apply changes). 11) Turn the unit on by using the interface (KONTROLA 1/4; UPS). Perform steps 4 and 5 only if an additional battery pack is connected. Once finished, the power supply unit can operate normally. www.ever.eu 2010/06/22...

  • Page 32: Turn Off And Disconnect

    Close mounts F1, F2, and F5 in the power supply unit, and F1 and F2 in the modules, if the fuse links have been removed. The fuse links must not be stored in the power supply unit, unless it is installed. OPERATION MODES Figure 3: Operation mode scheme www.ever.eu 2010/06/22...
  • Page 33 Instruction manual for POWERLINE 33 series UPS www.ever.eu 2010/06/22...
  • Page 34 Once turned off logically, the unit switches to STOP or SUSPENDED. BYPASS BYPASS is switched when the unit is overloaded or the mode is forced in the user interface (KONTROLA 3/4; UPS->BYPASS). Outputs are then fed with power from the BYPASS line. www.ever.eu 2010/06/22...

  • Page 35: Other Functional Components

    If the short circuit lasts longer than the predefined limit (hundreds of milliseconds), the unit switches to EMERGENCY mode. Overcurrent switches F3 and F4 are applied in modes that use a BYPASS line. Figure 4: Input protection www.ever.eu 2010/06/22...
  • Page 36 The connection with the optional external battery pack (F5) is protected with fuse links. When the casing is open, all three poles are disconnected: hot, cold, and neutral. Figure 6: External module protection www.ever.eu 2010/06/22...

  • Page 37: Epo

    Figure 7: Manual BYPASS switch Switch in the UPS position – normal operation. Switch in the BYPASS position – BYPASS lines connected to the output clips. The switch can be changed at any time. www.ever.eu 2010/06/22...

  • Page 38: Work With Computers

    RS232 and USB ports are plated to ensure separation from the other unit blocks. SNMP/HTTP NETWORK MANAGEMENT CARD An EVER network management card is optional and can be installed by the user. It is a device that is used to integrate the UPS with the Ethernet-type computer network.

  • Page 39: Card Installation

    11) Connect safeguard F2 by closing the casing. 12) Connect safeguard F5 by closing the casing. 13) Set safeguards F3 and F4 to ON. 14) Turn the unit on using the interface (KONTROLA 1/4;UPS). Figure 8: Card installation www.ever.eu 2010/06/22...

  • Page 40: Powersoft Personal Installation And Configuration

    To install PowerSoft with Windows (a list of operating systems verified for compatibility with the software is available at www.ever.eu), simply launch the software installer and proceed in line with the displayed instructions. When installing, choose the UPS model that is connected to the computer running the software. That setting can also be changed later when the software is installed.

  • Page 41: Software Update

    –Uv powersoftlite-x.x.x In Debian and FreeBSD, it is recommended to uninstall the older version and then install the new one. Instructions for the above operations are provided in the software manual available at www.ever.eu. www.ever.eu 2010/06/22...

  • Page 42: Comments On Operation

    If the generator voltage frequency changes exceed the tolerance level, the power supply unit will see it as an irregularity and switch to the appropriate operation mode, according to the rules of its operation described above. www.ever.eu 2010/06/22...

  • Page 43: Storage, Maintenance, And Transport

    The power supply unit must be stored and transported in conditions compliant with the installation guidelines, as described in a separate document enclosed with the device. Otherwise, EVER Sp. z o.o. shall not be liable for any mechanical damage resulting from the transport of the device. UTILISATION...

  • Page 44: Technical Parameters

    270 kg front: > 200 mm Operating distance sides: > 100 mm rear: > 300 mm Notes: Weight for the typical battery set-up 1x 2x 32x VRLA 12V /7Ah. Weight depends on the type and number of batteries. www.ever.eu 2010/06/22...

  • Page 45: Technical Data

    The permitted maximum load of the power supply unit decreases with the height above the sea level above the limit specified above. Weight for the typical battery set-up 1x 2x 32x VRLA 12V /7Ah. Weight depends on the type and number of batteries. www.ever.eu 2010/06/22...

  • Page 46: Legal Regulations And The Guarantee

    EVER Sp. z o.o. shall not be liable for any direct, indirect, extraordinary, coincidental, or consequential losses resulting from the use of the power supply unit, even if the possible occurrence of such losses has been notified.
