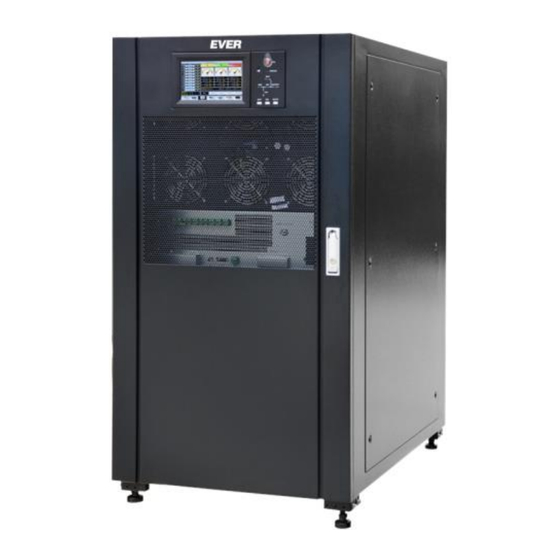

Summary of Contents for Ever POWERLINE DARK 33

  • Page 2: Table Of Contents

    CONNECTING THE UPS ................................35 Connecting elements – POWERLINE DARK 33 60 – 120 kVA....................35 Connecting elements – POWERLINE DARK 33 150 – 200 kVA ....................36 Starting the UPS (power supply from the main lines) ....................... 38 Start-up (no voltage on the main lines) – cold start ........................40 Switching from MAINS mode to BYPASS mode (service bypass) .....................

  • Page 3: Introduction

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual INTRODUCTION Thank you for choosing the EVER POWERLINE DARK 33 UPS. The UPS was designed to provide the best protection to the connected devices against power failures and their consequences. This manual contains information about operating the UPS and safety precautions. We recommend carefully reading the manual before using the EVER POWERLINE DARK 33 UPS to better understand how to use it properly.

  • Page 4: General Features Of The Ups Unit

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual GENERAL FEATURES OF THE UPS UNIT Alongside their excellent performance and reliability, POWERLINE DARK 33 UPS units offer a number of other advantages: • On-line operation with real double conversion, sine wave output voltage (ensuring top quality VFI--SS-111 parameters).
  • Page 5 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Manual Bypass Static Bypass Bypass Main Output Rectifier Inverter AC/DC DC/AC Battery Charge/ Discharge Figure 1: Simplified block diagram of the UPS. The rectifier converts the mains AC into DC. The direct current bus is the main source of power for the inverter, which, in turn, generates sine alternating current that powers the connected receivers.

  • Page 6: Safety Instructions And Recommendations

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual SAFETY INSTRUCTIONS AND RECOMMENDATIONS A) General considerations CAUTION! Before commencing the various procedures described in this manual, make sure to read the general (and specified here) safety instructions, OHS information, environmental precautions and legal stipulations, and observe them.
  • Page 7 CAUTION! Severe burns may result from the high current occurring during short circuits. CAUTION! There are no user-serviceable parts inside the UPS. CAUTION! POWERLINE DARK 33 UPS units are not intended to operate directly with medical equipment, life-supporting equipment or any other equipment that may have effect on health.
  • Page 8 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual CAUTION! Only TN-S or TN-C-S mains configurations are allowed at the UPS unit's input, and only a TN-S configuration is allowed at the UPS unit’s output. CAUTION! No extension cords may be used for connecting the UPS.
  • Page 9 UPS unit. • The instructions should be followed step by step. If any problems arise when following the instructions presented in the document, contact the EVER service department (www.ever.eu). • Never disconnect the grounding at the UPS unit or at the terminals of the building's electrical system, as this will disable the UPS unit's protective grounding.
  • Page 10 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual may pose a risk. All external battery packs must be disconnected before commencing service or maintenance works. Make sure there is no dangerous voltage on the unit’s internal DC elements. • WARNING: Only properly authorized and qualified service technicians who have legally required protection gear may replace batteries.
  • Page 11 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual • The UPS should be operated and stored in conditions conforming to its specification. The UPS should be stored in dry, well ventilated rooms. • If the UPS is to be stored for a longer time, the batteries should be recharged at least every 6 months.

  • Page 12: Technical Description

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual TECHNICAL DESCRIPTION THE UPS UNIT DESIGN AND COMPONENTS Depending on the UPS model, its elements are shown in Figures 2a - 2b, respectively. a) Model 60 - 120 kVA b) Model 150 - 200 kVA...

  • Page 13: User Interface

    (with LED indicators) and three function keys. The elements of the front panel of the POWERLINE DARK 33 60 - 200 kVA UPS are shown in Fig. 3, along with their description. Table 1 shows the meaning of LED indicators and the signalisation of each operating mode.
  • Page 14 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual (damaged, overloaded or overheated), EOD (battery cut-off voltage). Red LED flashing Low battery power Light off Batteries and charger in good operating condition, batteries charged. Green LED on The UPS is operating in the BYPASS mode.
  • Page 15 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Table 3. Functions of the control panel keys Function UPS emergency shut-down. Long press, cut off the load power (shut down the rectifier, inverter, static bypass and battery) UPS is switched to the bypass mode (make sure to switch the button in the back of the door upwards).

  • Page 16: User Interface Menu Structure

    USER INTERFACE MENU STRUCTURE Fig. 5 presents the main menu structure of the POWERLINE DARK 33 60 – 200 kVA UPS. The main menu has six branches (menu options); Cabinet, Power unit - Module, Setting, Log, Operate and Scope. To switch between menus and submenus, press the corresponding menu or submenu icon.
  • Page 17 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Fig. 6: Bypass submenu screen Table 5. Description of individual windows on the display Window no. Function Name of the currently selected submenu in the Cabinet module. Values of parameters for the currently selected submenu.

  • Page 18: Module

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Fig. 9: Load submenu screen Fig. 10: Battery submenu screen Module The Module menu (power module) is divided into five submenus, similarly to the Cabinet menu: Input, Output, Load, Info, S-Code. Individual screens show parameters (values of current, voltage, power, temperature and error codes) for individual power modules installed in the UPS.
  • Page 19 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Table 6. Description of individual windows on the display Window no. Function Name of the currently selected submenu in the Module menu. Values of parameters for the currently selected submenu. Submenu selection: Input, Output, Load, Info, S-Code.
  • Page 20 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Table 7. Description of individual parameters of the Module menu Submenu Contents Parameter Input voltage of individual phases of the selected power module. Input current of individual phases of the selected power INPUT module.

  • Page 21: Setting

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Setting The Setting menu is divided into eight submenus, through which the user can adjust the UPS settings. The screen is presented in Fig. 16. Table 8 presents the list of user- adjustable parameters.

  • Page 22: Log

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Submenu Parameter name Description Setting the number of batteries （12V） Battery Number Battery Capacity Entering the capacity of the used batteries (Ah) Setting the charging voltage in the float mode –...
  • Page 23 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Fig. 17: Log screen Table 9. List of events and alarms. Message Meaning Fault Clear Deleting alarms Log Clear Removing entries from the event log Load On UPS Operation in the mains (normal) mode...
  • Page 24 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Input Neutral Lost No neutral lead Bypass Fan Fail Bypass fan fail Manual Shut-down Power module manual shut-down Manual Boost Charge Forcing batteries to charge in boost mode Manual Float Charge...

  • Page 25: Operate

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Operate The Operate menu is divided into two groups of keys: function button and test command. Fig. 18 presents the view of the screen. Table 10 presents the description of functions of individual keys.

  • Page 26: Scope

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual TEST COMMAND Button Function Button Function Battery Test The UPS tests the batteries. While Battery The UPS tests the batteries. While testing the battery, the UPS Maintenance testing the battery, the UPS switches...

  • Page 27: Ups Operating Mode

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual UPS OPERATING MODE MAINS mode (normal) For the UPS to operate in MAINS (normal) mode, the voltage in power supply lines (basic lines) must satisfy the mains correctness criteria (correct voltage and frequency values).
  • Page 28 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual ECO (economic) mode A high efficiency mode. For the UPS to operate in ECO mode, the mains correctness criteria must be satisfied for the basic lines and the bypass line. The UPS switches to BACKUP mode if the parameters of any of the lines are no longer correct.

  • Page 29: Protections

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual FREQUENCY CONVERTER mode In FREQUENCY CONVERTER mode, the UPS can generate a constant output voltage frequency of 50 Hz or 60 Hz. If the mains supply is interrupted or the power supply lines fail to meet the mains correctness criteria, the UPS switches to BACKUP mode, supplying power to receivers connected to the UPS output.

  • Page 30: Epo

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual EPO (Emergency Power Off) is a system which interrupts power supply from the UPS output to receivers in extreme situations or in emergency (e.g. fire). The system can be activated in two ways:...

  • Page 31: Installing The Ups Unit

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual CAUTION! Given the method of packaging the product, pay special attention when unpacking it. A falling device may pose a risk to health or life. The UPS is packaged in a way that ensures safe transport (also with a forklift truck).
  • Page 32 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual be provided to ensure the UPS unit’s correct operation. Consequently, the UPS unit’s ventilating openings must be always uncovered and the distance between the UPS and other items should be no less than 50 cm. For maintenance purposes, make sure there is at least 80 cm of free space in front of the device for easy access.

  • Page 33: External Batteries

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual EXTERNAL BATTERIES The POWERLINE DARK 33 60-200 kVA UPS units have not internal batteries. The battery power is provided by connecting an external battery pack, that is not a part of the device, to the UPS terminals connectors batteries.

  • Page 34: Disconnecting An External Battery Pack

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual CAUTION! POWERLINE DARK 33 150kVA – 200kVA UPS unit are equipped with bypass switches only. In order to disconnect power from the UPS, disconnect the protection devices in the external switching board.

  • Page 35: Connecting The Ups

    CAUTION! No disconnected wires may be left. These wires may be live with voltage that is dangerous to health and life. CONNECTING THE UPS Connecting elements – POWERLINE DARK 33 60 – 120 kVA Fig. 27: Connecting elements. – main line input terminals INPUT –...

  • Page 36: Connecting Elements - Powerline Dark 33 150 - 200 Kva

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Connecting elements – POWERLINE DARK 33 150 – 200 kVA Fig. 28: Connecting elements. – main line input terminals MAIN INPUT – input phase lines A, B, C – bypass line input terminals BYPASS INPUT –...
  • Page 37 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Connecting is done by bolting the ends of specific wires to the terminals. Use wires with correct diameters as per the installation guidelines. The wires should end with metal eye connectors.

  • Page 38: Starting The Ups (Power Supply From The Main Lines)

    1. Make sure that Q1, Q2 and Q4 protection devices are switched to OFF; if not, switch them to OFF (only applies to 60 kVA - 120 kVA models). CAUTION! POWERLINE DARK 33 150kVA – 200kVA UPS unit are equipped with bypass switches only. Input line (main and bypass line) protection devices and output devices must be installed in the external switching board providing power to the UPS.
  • Page 39 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Table 12. Status of LED indicators during the start of the inverter. Indicator Status Indicator Status Rectifier LED (REC) Green LED on Inverter LED (INV) Green LED flashing Battery LED (BAT)

  • Page 40: Start-Up (No Voltage On The Main Lines) - Cold Start

    5. Switch the UPS unit’s Q4 output protection and Q1, Q2 input protection devices (the main and the bypass lines) to ON. For POWERLINE DARK 33 150kVA – 200kVA UPS units activate protection devices in the external switching board. The inverter starts supplying the energy stored in the batteries to the output.

  • Page 41: Switching From Bypass (Service) Mode To Mains (Normal) Mode

    2. Switch the external battery pack DC protection to OFF. 3. Remove the cover of the bypass system (MAINTENANCE BYPASS) Q3 protection for POWERLINE DARK 33 60kVA – 120kVA or Q2 for POWERLINE DARK 33 150kVA – 200kVA. 4. Switch the MAINTENANCE BYPASS protection to ON.

  • Page 42: Switching The Ups Off

    5. Switch the external battery pack DC protection to ON. 6. Switch the MAINTENANCE BYPASS protection (Q3 for POWERLINE DARK 33 60kVA – 120kVA or Q2 for POWERLINE DARK 33 150kVA – 200kVA) to OFF. 7. Install the bypass protection (MAINTENANCE BYPASS) cover on the UPS.

  • Page 43: Power Modules

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual POWER MODULES Depending on the model, EVER POWERLINE DARK 33 UPS units are equipped with the following power modules: Table 15. UPS configuration. Power module POWERLINE DARK 33 30 kVA Model 60k, Model 120k...

  • Page 44: Ups Unit's Additional Functions

    UPS UNIT’S ADDITIONAL FUNCTIONS DRY CONTACTS The EVER POWERLINE DARK 33 UPS is equipped with dry contacts (J2 – J10), which can be used to signal and control specifically assigned operating states of the UPS. Ambient and battery temperature detection To read the battery and ambient temperature, connect temperature sensors (R25= 5kΩ, B25/50=3275) to terminals J2 and J3, respectively.

  • Page 45: Powering From A Generator

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual - in NC configuration, to pins J4-1 and J4-2 - in NO configuration, to pins J4-3 and J4-4 If the UPS is not connected to an external circuit, a jumper must be placed on pins J4- 1 and J4-2.

  • Page 46: Battery Low

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Table 16. J6 and J7 pinout Pin no. Name Description Output signal for triggering (disconnecting) the battery switch if J6-1 BCB_DRV EPO is triggered or the battery is in deep discharge state. +18 V 20 mA signal is generated.

  • Page 47: Alarms

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Alarms J9 terminal can signal the presence of an alarm. The presence of at least one alarm closes or opens the relay’s contacts (depending on the configuration of the connector). Fig. 36 presents the manner of making the connection. Table 18 presents the pinout and the relevant description.

  • Page 48: Communication With External

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Table 19. J10 terminal pinout Pin no. Name Description A relay informing that there is no mains - normally closed (J10-1 J10-1 UTI_FAIL_NC and J10-3). Opening of the relay indicates that there is no mains.

  • Page 49: Snmp/Http Network Management Card

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual SNMP/HTTP NETWORK MANAGEMENT CARD The management card is optional and can be installed by the user. The card integrates the UPS with Ethernet. The network card is installed in a special slot in the UPS. The card can be used to manage the UPS from any PC in a network.
  • Page 50 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual Fig. 38: Installation of the management card Technical Assistance, phone: +48 61 6500 400 www.ever.eu Type 01 2023-11-29 15:12...

  • Page 51: Operating Instructions

    Spilled electrolyte is harmful to skin and eyes and may also be toxic. OPERATION OF THE UPS WITH POWER GENERATORS The POWERLINE DARK 33 series UPS units are ON-LINE devices that synchronize their operation with the mains voltage. By design, the UPS tolerates, to a certain extent, changes of the mains voltage and changes of the frequency in relation to the default frequency of 50 Hz (see the technical parameters table).

  • Page 52: Storage, Maintenance And Transport

    The UPS should be stored and transported in conditions conforming to the installation guidelines covered in a separate document attached to the UPS. If these requirements are not satisfied, EVER Sp. z o.o. will not be liable for any mechanical damage arising during transportation.

  • Page 53: Disposal

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual DISPOSAL The disposal / recycling of UPS units and/or batteries should be entrusted to a specialist waste contractor with suitable licence or authorization to engage in waste disposal / recycling. Handling used electric and electronic equipment reduces the harmful consequences for human health and natural environment caused by the presence of dangerous components and improper storage or processing such equipment.

  • Page 54: Technical Parameters

    EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual TECHNICAL PARAMETERS Table 20. Technical parameters table POWERLINE DARK 33 PARAMETERS \ TYPE Model 60k Model 80k Model 100k Model 120k Model 150k Model 200k T/PWDATO- T/PWDATO- T/PWDATO- T/PWDATO- T/PWDATO- T/PWDATO-...
  • Page 55 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual POWERLINE DARK 33 PARAMETERS \ TYPE Model 60k Model 80k Model 100k Model 120k Model 150k Model 200k 60 kVA 80 kVA 100 kVA 120 kVA 150 kVA 200 kVA Output Power (Apparent / Active)
  • Page 56 EVER POWERLINE DARK 33 60-200 kVA UPS Operating Manual POWERLINE DARK 33 PARAMETERS \ TYPE Model 60k Model 80k Model 100k Model 120k Model 150k Model 200k 60 kVA 80 kVA 100 kVA 120 kVA 150 kVA 200 kVA Output Power (Apparent / Active)

  • Page 57: Legal Regulations And Warranty

    Apart from the stipulations in the warranty card, EVER Sp. z o.o. shall not be liable for any direct, indirect, specific, accidental or consequential losses resulting from the use of the UPS, even if the possibility of such losses was not advised.
