  • Page 2: Table Of Contents

    BATTERY MAINTENANCE..........................31 CLEANING ..............................31 UPS STORAGE ............................... 31 BATTERY TESTING............................32 BATTERY REPLACEMENT .......................... 32 External UPS battery pack replacement........................ 32 TROUBLESHOOTING............................36 TRANSPORT AND STORAGE ........................... 37 LAWS, REGULATIONS AND THE WARRANTY..................... 37 WARRANTY ..............................37 www.ever.eu 2011/04/19...

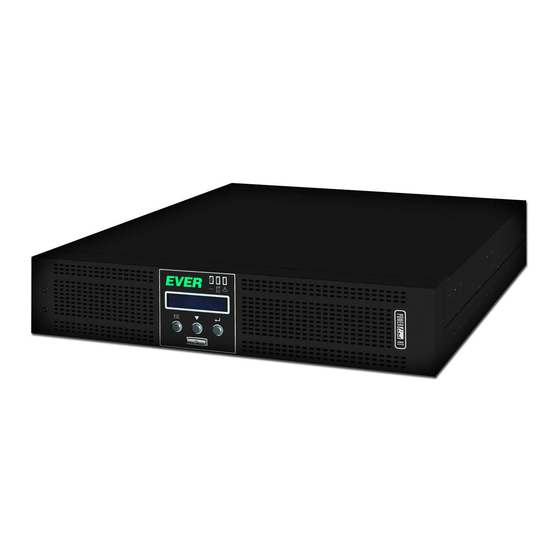

  • Page 3: Product Introduction

    ● The UPS ensures an internal bypass to allow the receivers to obtain power grid input when the UPS is damaged. ● The UPS is fitted with an internal battery charger, which recharges the battery when the grid parameters are acceptable, with the exception of the "backup mode", or "battery testing mode". www.ever.eu 2011/04/19...
  • Page 4 If the device is used as a frequency converter, the ECO mode cannot be activated, and the bypass mode cannot be used. NOTE: The frequency conversion mode can be switched on/off only when the device is in the standby mode. www.ever.eu 2011/04/19...
  • Page 5 Automatic restart - if the function is switched on, after the autonomous power supply time has lapsed, the device automatically starts when the grid power supply resumes. If it doesn't, it is necessary to start the device manually. www.ever.eu 2011/04/19...

  • Page 6: Symbols Used

    Compatibility with power generators – the UPS can work with most power generators available on the market. SYMBOLS USED Some or all of the symbols below may be used in this instruction manual. It is recommended that the user is familiar with the symbols and their meanings. www.ever.eu 2011/04/19...

  • Page 7: Instructions About Front Panel Indicators

    INSTRUCTIONS ABOUT FRONT PANEL INDICATORS Control panel There are several switches and LED indicators on the front panel, which notify the operator of the current UPS status and options to change the UPS mode: Fig. 2: Front panel www.ever.eu 2011/04/19...
  • Page 8 Standby mode - correct input power ● Standby mode - no correct input power Bypass mode (output connected) ● ● Power grid mode ● ● Backup mode ● ECO mode ● ● Critical error mode ● ● Continuous light www.ever.eu 2011/04/19...
  • Page 9 Instruction manual for Powerline RT Menu and functions Functions available in the menu and submenu are explained below. Fig.3: Menu www.ever.eu 2011/04/19...
  • Page 10 This is not a calendar date. The time follows the format: DDDD:HH:MM:SS, where DDDD is the consecutive day of the device's work, HH – hours, MM – minutes, SS – seconds. The next screen is the next event. www.ever.eu 2011/04/19...
  • Page 11 PRE-ALARM LEVEL Selection of the battery charging level (75%, 50%, 25% or 0%) below which 4.13 SELECTION Battery low signal is activated MENU 5.- ABOUT Function Displays rated power of the UPS, software version and UPS working time www.ever.eu 2011/04/19...

  • Page 12: Rear Panel

    Instruction manual for Powerline RT REAR PANEL POWERLINE RT 1000 1) RS232 port 2) USB port 3) ROO/EPO terminals 4) Fan 5) RJ11 port – battery module detection 6) Supply interface to connect an external battery pack 7) SNMP card socket 8) Input circuit protection –...
  • Page 13 RJ11 port – battery module detection RS232 port Input circuit protection – automatic fuse Power supply input socket Non-controlled output sockets Controlled output sockets (group 1 and 2) 10) ROO/EPO terminals 11) USB port 12) Earthing bolt Fig.5: Rear panel www.ever.eu 2011/04/19...
  • Page 14 7) Input circuit protection – automatic fuse 8) Power supply input socket 9) Non-controlled 16A output sockets 10) Controlled 10A output sockets (group 1 and 2) 11) 16A output sockets 12) ROO/EPO terminals 13) USB port 14) Earthing bolt Fig.6: Rear panel www.ever.eu 2011/04/19...
  • Page 15 Instruction manual for Powerline RT POWERLINE RT 1000 BATTERY PACK 1) Battery pack power supply interface 2) RJ11 port - signal lead 3) Battery pack power supply interface 4) Current protection Fig.7: Rear panel www.ever.eu 2011/04/19...
  • Page 16 Instruction manual for Powerline RT POWERLINE RT 2000/3000 BATTERY PACK 1) Battery pack power supply interface 2) RJ11 port - signal lead 3) Battery pack power supply interface 4) Current protection Fig. 8: Rear panel www.ever.eu 2011/04/19...

  • Page 17: Product Specifications

    Instruction manual for Powerline RT PRODUCT SPECIFICATIONS Table 3. Technical parameters PARAMETERS / MODEL POWERLINE RT 1000 POWERLINE RT 2000 POWERLINE RT 3000 Output power 1000 VA / 800 W 2000 VA / 1600 W 3000 VA / 2400 W...

  • Page 18: Battery Packs

    If the altitude above sea level increases beyond the provided limit the permitted load power of the batter back-up decreases. Battery packs Table 4 Technical parameters BATTERY PACK BATTERY PACK PARAMETERS / MODEL POWERLINE RT 1000 POWERLINE RT 2000/3000 Rack / Tower Casing (Rack Kit optionally available) Battery configuration...
  • Page 19 A detailed description is attached to the interface cards available as accessories. Available interface cards: - SNMP adapter card (Manage UPS) to integrate the UPS with the network (option) - AS400 card. (option) www.ever.eu 2011/04/19...
  • Page 20 3. When downloading the required files from the Internet, enter the following serial number: 511C1-01220-0100-478DF2A to install the software. After restarting the computer, WinPower software appears as a green socket icon in the system tray, next to the clock. 4. Software installation can also be performed using the supplied CD. www.ever.eu 2011/04/19...

  • Page 21: Installation

    UPS is kept away from water, flammable gases and corrosion agents. NOTE! The device should be installed in well-ventilated places. Do not cover ventilation openings in the UPS casing, keep the relevant distances from other objects to ensure appropriate air circulations. www.ever.eu 2011/04/19...
  • Page 22 UPS at any time, emergency breaker should be installed between the UPS output terminals and receivers. To enhance your safety, this can be an RCD device. ● Battery NOTE! When serially connecting several battery packs, adhere to the "same voltage, same type" rule. www.ever.eu 2011/04/19...

  • Page 23: Unpacking And Control

    After unpacking, check the contents of the package. The package should include: CONTENTS OF THE PACKAGES The packages contain: a) UPS POWERLINE RT 1000, 2000: - UPS unit, - 2 sets of tower bases for vertical installation, - 1 x power supply cord - CEE7/7 - IEC 320 C13, 10A,...
  • Page 24 - 1 x RJ cable - RS232, - CD with software, - warranty card, e) POWERLINE RT 1000 & 2000/3000 battery pack: - 1 battery pack, - 1 power connection cable, - 1 battery pack detection cable for automatic detection of connected packs (RJ11),...

  • Page 25: Ups And External Battery Pack Vertical Installation

    Install two sets of tower bases with the spacer supplied with the UPS and place the device between the bases as shown on the picture. Then secure the UPS and the battery pack with the supplied plates and screws. Fig.11: UPS Plus connection to an external battery pack www.ever.eu 2011/04/19...

  • Page 26: Power Supply Connection

    7.Make a "chain" of battery packs using battery pack detection cables until you connect the last pack. 8.Set battery pack circuit protection (in each pack) to "ON" When all external battery packs are connected, make the necessary power supply output/input connections as described below. www.ever.eu 2011/04/19...

  • Page 27: Ups Power Connection

    NOTE: Never disconnect the earthing cable at the UPS device or on terminals of the building wiring, because this will remove the earthing connection used to protect the UPS system and all receivers connected to it. www.ever.eu 2011/04/19...

  • Page 28: Starting The Ups

    On/Off button until you hear a beep. 2) The UPS will respond with several sound messages, and the GRID MODE message, along with the UPS load indication will appear on the LCD. The connected receivers are power-supplied. www.ever.eu 2011/04/19...

  • Page 29: Regular Ups Start Procedure

    Follow the same procedure for the UPS to return to the grid mode, this time selecting SWITCH TO GRID. If the UPS is in the standby or frequency conversion mode, switching to the bypass mode is not possible. www.ever.eu 2011/04/19...

  • Page 30: Eco Mode Procedure

    The UPS will disconnect all outputs and switch off. REMOTE POWER SUPPLY OFF (EPO) / REMOTE ON/OFF (ROO) Three-output connector for EPO/ROO circuits is on the rear panel of the device - see picture. Fig.12: Remote UPS on/off diagrams www.ever.eu 2011/04/19...

  • Page 31: Battery Maintenance

    You do not need to unpack the device to charge the batteries. The UPS should be simply connected with a cord to the power grid, using special openings in the packaging, and the batteries should be charged for about five hours. After charging, the charging date should be entered on the UPS packaging. www.ever.eu 2011/04/19...

  • Page 32: Battery Testing

    The replacement is performed in the maintenance access area. The battery maintenance should be ensured or supervised by personnel familiar with battery operation, using the appropriate precautions. During the replacement, the same type and quantity of batteries, or battery sets, should be used. www.ever.eu 2011/04/19...
  • Page 33 The battery test should be performed periodically (every 6 to 12 months) in order to check general battery performance. In order to replace the internal batteries, manually set the UPS to the bypass mode (see "Bypass mode procedures" and follow the sequence of actions shown on the pictures: www.ever.eu 2011/04/19...
  • Page 34 Instruction manual for Powerline RT Fig.13: POWERLINE RT 1000 Fig.14: POWERLINE RT 2000/3000 www.ever.eu 2011/04/19...
  • Page 35 European Union, a used product should be handed over to a special waste handling outlet. This concerns both the device itself, and all the accessories marked with this symbol. Such products should not be disposed of together with unsorted municipal waste. www.ever.eu 2011/04/19...

  • Page 36: Troubleshooting

    Communication error between the UPS and Computer interface is used Check whether other software/service has a computer by another process or is access to the computer interface, try to damaged. select another serial interface Disruptions on data cable Relay the cable/reinstall the cabling www.ever.eu 2011/04/19...

  • Page 37: Transport And Storage

    EVER Sp. z o.o. shall not be liable for any direct, indirect, extraordinary, coincidental, or consequential losses resulting from the use of the power supply unit, even if the possible occurrence of such losses has been notified.

This manual is also suitable for:

Powerline rt 2000Powerline rt 3000

Table of Contents
