Ever SINLINE RT Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SINLINE RT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ever SINLINE RT

Summary of Contents for Ever SINLINE RT

  • Page 2: Table Of Contents

    Output installation ..............................41 TOWER VERSION UPS INSTALLATION ........................42 Installation of the UPS with a battery module (applies to SINLINE RT XL UPS units) ........43 RACK VERSION UPS INSTALLATION ........................46 Installation of the UPS with a battery module (applies to SINLINE RT XL UPS units) ........48 DISCONNECTING THE BATTERY MODULE (applies to SINLINE RT XL) ............

  • Page 3: Introduction

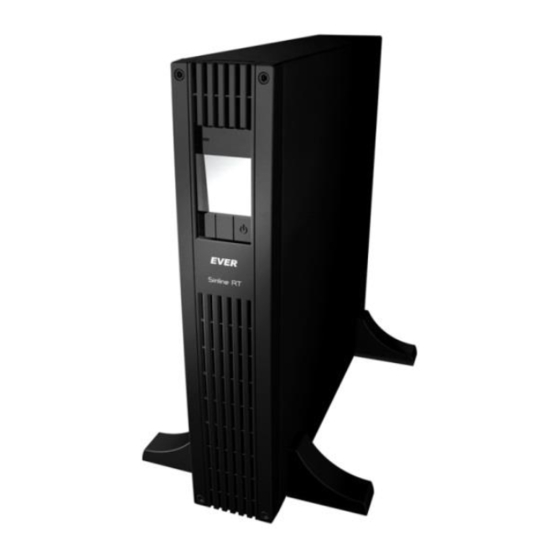

    Please read this manual carefully and thoroughly prior to using the EVER SINLINE RT / SINLINE RT XL unit. This will help to operate the unit correctly and safely. The UPS unit has been designed, engineered and manufactured in Poland.

  • Page 4: General Features Of The Ups Unit

    EVER UPS SINLINE RT / RT XL series instruction manual GENERAL FEATURES OF THE UPS UNIT The SINLINE RT / SINLINE RT XL units are LINE-INTERACTIVE (VI) class units designed to work with equipment supplied from ~ 230 VAC single-phase electric power mains.
  • Page 5 EVER UPS SINLINE RT / RT XL series instruction manual Moreover, the SINLINE RT XL units have the following features:  Output active power is equal to apparent power (PF=1).  Manageable outputs - customized operation for specific needs of the more demanding receivers.

  • Page 6: Safety Instructions And Recommendations

    EVER UPS SINLINE RT / RT XL series instruction manual SAFETY INSTRUCTIONS AND RECOMMENDATIONS A) General remarks CAUTION! Before starting the procedures described in this manual, please read the general safety instructions (including the instructions found in this document), health & safety information, environmental protection information and legal regulations that may apply.
  • Page 7 CAUTION! There are no user-serviceable parts inside the UPS unit. CAUTION! SINLINE RT / SINLINE RT XL UPS units are not intended for use directly with medical equipment, life support systems or equipment that may affect health.
  • Page 8 EVER UPS SINLINE RT / RT XL series instruction manual circuit protection. CAUTION! Only TN-S or TN-C-S configuration is allowed on the UPS unit's input side, and only TN-S configuration is allowed on the UPS unit's output side. CAUTION! No extension cords should be used for connecting the UPS unit.
  • Page 9 EVER UPS SINLINE RT / RT XL series instruction manual lead. The summary leakage current may trigger protective devices (RCD) and result in disconnecting power to the loads.  When connecting and disconnecting signal cables, all actions should be performed with one hand only (if feasible). This is to avoid electric shock when touching two surfaces with different electrical potentials.
  • Page 10 EVER UPS SINLINE RT / RT XL series instruction manual D) Maintenance, repair and breakdown information  Dangerously high voltages are present in the UPS unit. Only qualified service technicians may perform maintenance works.  CAUTION - Risk of electric shock! Even if the unit has been disconnected from the mains (from terminals of the electrical power supply), parts inside the UPS unit remain connected to the batteries, which may create hazards.
  • Page 11 EVER UPS SINLINE RT / RT XL series instruction manual E) Transport and packaging requirements  Exercise particular care when transporting the device.  Heavy equipment must be moved by at least two or more persons.  UPS units may be transported only in their original packaging boxes to ensure adequate protection against shocks, vibrations and impact.

  • Page 12: Technical Description

    EVER UPS SINLINE RT / RT XL series instruction manual TECHNICAL DESCRIPTION UNPACKING THE PRODUCT The UPS unit must be properly examined upon delivery or handover. Although the product is carefully packaged, the appliance could have been damaged due to shocks experienced during transport.

  • Page 13: Elements Of The Ups - Rear Panel

    EVER UPS SINLINE RT / RT XL series instruction manual ELEMENTS OF THE UPS - REAR PANEL Figures 1 - 4 present the elements found in rear panels of SINLINE RT / SINLINE RT XL units. 1. Output sockets PN-E-93201 (10 A) 2.
  • Page 14 EVER UPS SINLINE RT / RT XL series instruction manual 1. Signaling LED 2. LCD display 3. Multi-function buttons: A, B, C Fig. 5. View of the front panel of SINLINE RT / SINLINE RT XL units Table 1. Functions of the control panel buttons Button Function...
  • Page 15 EVER UPS SINLINE RT / RT XL series instruction manual Canceling Press the button to cancel the currently displayed message. messages Increasing the value Press the button to increase the value of the edited parameter. of parameters Press the button shortly to scroll down between information screens.

  • Page 16: Lcd Display Icons

    EVER UPS SINLINE RT / RT XL series instruction manual Event Sound signal Visual signal Enforced switching to Red LED pulsating with sound alarm in sequences: dual visual and sound signal / 2.5 STANDBY mode (from s pause. The sound signal is on only if the MUTE function is inactive.

  • Page 17: Description Of Lcd Display Icons

    EVER UPS SINLINE RT / RT XL series instruction manual DESCRIPTION OF LCD DISPLAY ICONS Table 3. Description of LCD display icons Symbol Description 1 – UPS output load indicator Load level signaling. Further segments of the icon light up while the load increases.
  • Page 18 EVER UPS SINLINE RT / RT XL series instruction manual 8 – Messages AVR system activity signalization (increasing value). AVR system activity signalization (decreasing value). Low battery charge level. The icon is displayed in case of an overload of the UPS.

  • Page 19: User Interface Menu Structure

    EVER UPS SINLINE RT / RT XL series instruction manual USER INTERFACE MENU STRUCTURE The menu structure of SINLINE RT / SINLINE RT XL UPS units is show in Fig. 7. All screens shown on the LCD display are described in further sections of the manual.

  • Page 20: Description Of Screens Shown In The Lcd Display

    (for the list of recommended battery types, please go to www.ever.eu). In case when batteries other than recommended are used, indications may become imprecise, which means the actual available time of backup operation may differ from the indicated time (Au.tm).
  • Page 21 EVER UPS SINLINE RT / RT XL series instruction manual INPUT Description: The UPS unit’s input parameters Type: Readout Parameters: Voltage - input voltage value – input frequency value Freq. Screen: OUTPUT Description: The UPS unit’s output parameters Type: Readout...
  • Page 22 EVER UPS SINLINE RT / RT XL series instruction manual – number of received packets 58920 / number of faulty packets REC58920/ received 0 Screen: UPS MODE Description: Information about the UPS unit's operating mode Type: Readout Parameters: – information needed to contact the service Code –...

  • Page 23: Main Menu

    EVER UPS SINLINE RT / RT XL series instruction manual ALARMS Description: UPS unit's alarm messages Type: Readout Parameters: – information needed to contact the service Code – list of active alarms If there are no active alarms, the message none <none>...
  • Page 24 EVER UPS SINLINE RT / RT XL series instruction manual If the UPS is active (logically on) and the user wants to switch the UPS off logically or completely (power off), prior to executing the command, an additional window prompting the user to confirm the command will be displayed. The command will be executed once it is confirmed by pressing the key.

  • Page 25: Configuration Submenu

    EVER UPS SINLINE RT / RT XL series instruction manual CONFIGURATION Submenu The CONFIGURATION submenu uses two screens divided into five subject groups: UPS, DISPLAY, ACOU SIGNALL, NETWORK CARD, LANGUAGE; these can be used to change the UPS unit's parameters.
  • Page 26 UPS If there are no external battery modules, set the value to 0. CAUTION! Setting a different value may damage the UPS unit's battery. The option is available in SINLINE RT XL UPS units. – activating / deactivating a group of output sockets (white) Output Control The option can be selected in MAINS and BACK-UP mode.
  • Page 27 EVER UPS SINLINE RT / RT XL series instruction manual Screens: DISPLAY 1/1 Description: User interface parameter settings Type: Readout/Saving Parameters: – the level of brightness for the LCD display Backlight lvl – the level of contrast for the LCD display Contrast Rack/TowerMode –...
  • Page 28 EVER UPS SINLINE RT / RT XL series instruction manual Screen: NETWORK CARD 1/2 Description: Network card parameter settings Type: Readout/Saving Parameters: – activating the built-in network card The option must be Card enable active for the HTTP and SNMP protocols to operate.
  • Page 29 EVER UPS SINLINE RT / RT XL series instruction manual – manual configuration of network card parameters The Manual card's IP address, subnet mask and default gateway parameters must be configured correctly. – the device's IP address IP address – subnet mask Subnet mask –...

  • Page 30: Informations Submenu

    EVER UPS SINLINE RT / RT XL series instruction manual View of the screen: INFORMATIONS submenu The INFORMATIONS submenu is divided into two subject groups: IDENTIFICATION and CONTACT DATA. Navigation within this menu is similar to the way shown earlier.

  • Page 31: Measurements Submenu

    EVER UPS SINLINE RT / RT XL series instruction manual Screens: MEASUREMENTS submenu The MEASUREMENTS submenu is divided into five screens with data for the mains input parameters, UPS unit's output parameters and UPS unit's internal blocks parameters. Navigation within this menu is similar to the way shown earlier.
  • Page 32 EVER UPS SINLINE RT / RT XL series instruction manual Screen: MEASUREMENTS 3/5 Description: Frequency and UPS load measurement Type: Readout Parameters: Output load – UPS load level in % level Frequency – input frequency value Input Frequency – output frequency value...

  • Page 33: Statistics Submenu

    EVER UPS SINLINE RT / RT XL series instruction manual MEASUREMENTS 5/5 Description: Battery parameters Type: Readout Parameters: – battery voltage value Battery voltage Screen: STATISTICS submenu The STATISTICS submenu is divided into three screens. Navigation within this menu is similar to the way shown earlier (use the keys).
  • Page 34 EVER UPS SINLINE RT / RT XL series instruction manual STATISTICS 2/3 Description: Statistical data Type: Readout Parameters: – number of events associated with UPS overload Overload – number of events associated with short circuit states at the UPS unit’s output when operating in BACK-UP (BATTERY)

  • Page 35: Ups Operation Modes

    EVER UPS SINLINE RT / RT XL series instruction manual UPS OPERATION MODES Fig. 8: Correlations between individual UPS modes of operation INI Mode (INITIALISATION) An initial state which occurs after the hardware platform is initialized with start- up values.
  • Page 36 EVER UPS SINLINE RT / RT XL series instruction manual STANDBY Mode Switching to the STANDBY mode may only be effected from the BACK-UP mode in case of the batteries becoming discharged or by overriding from an external control system. The switching takes place after a time defined in the control software expires.

  • Page 37: Protections And Safeguards

    EVER UPS SINLINE RT / RT XL series instruction manual EMERGENCY Mode The UPS unit may switch to the EMERGENCY mode either as a result of an overload, a shorted output, internal fault(s), exceeding the permissible temperature range of the inverter or internal batteries, triggered EPO or the presence of reversed voltage.

  • Page 38: Against Overvoltage (Anti-Surge)

    UPS unit switches over to EMERGENCY mode. EPO (expansion card - optional equipment for SINLINE RT XL UPS units) The Remote Emergency Power Off (Remote EPO) functionality cuts the power supply from the UPS output to loads in extreme situations or in emergency (e.g. fire).

  • Page 39: Installation

    UPS may only be connected to a ~230V mains socket equipped with a grounding bolt. All SINLINE RT / SINLINE RT XL series UPS units were designed to operate as free standing units (tower versions) and for installation in 19" rack cabinets (rack versions).

  • Page 40: Input Installation

    EVER UPS SINLINE RT / RT XL series instruction manual Input installation To make sure the UPS connection is made according to the manual, proper pin configuration of the power socket must be ensured (Fig. 9). Fig. 9: Power socket pin configuration Fig.

  • Page 41: Output Installation

    CAUTION! Only TN-S configuration is allowed for the UPS output installation. Fig. 11: SINLINE RT / SINLINE RT XL output installation SINLINE RT / SINLINE RT XL output socket pin configuration is shown in Fig. 12. Sockets PN-E-93201 (10 A) Sockets IEC 320 C13 (10 A) Socket IEC 320 C19 (16 A) Fig.

  • Page 42: Tower Version Ups Installation

    EVER UPS SINLINE RT / RT XL series instruction manual TOWER VERSION UPS INSTALLATION To install the UPS as a free-standing unit (tower) follow these steps: 1. Switch off the UPS and disconnect the power cord from the mains socket.

  • Page 43: Installation Of The Ups With A Battery Module (Applies To Sinline Rt Xl Ups Units)

    EVER UPS SINLINE RT / RT XL series instruction manual Installation of the UPS with a battery module (applies to SINLINE RT XL UPS units) To install the UPS with a battery module as a free-standing unit follow these steps: 1.
  • Page 44 EVER UPS SINLINE RT / RT XL series instruction manual Fig. 18: Attaching the feet kit to the UPS and the module 6. Use bolts and metal brackets to attach the UPS to the external battery module, stabilizing the devices (Fig. 19).
  • Page 45 EVER UPS SINLINE RT / RT XL series instruction manual 9. Disconnect the conductors from the front panel (Fig. 21). Fig. 21: Disconnecting the conductors 10. Connect the yellow and green earthing conductor between the battery module and the UPS (Fig. 22).

  • Page 46: Rack Version Ups Installation

    EVER UPS SINLINE RT / RT XL series instruction manual Fig. 24: UPS front panel Fig. 25: Module front panel Fig. 26: Cutting out the caps 13. Connect the conductors to the UPS unit's front panel. 14. Place the battery module's connecting conductors and the earthing conductor in the gap between the front panels.
  • Page 47 EVER UPS SINLINE RT / RT XL series instruction manual 2. Assemble a set of installation rails, depending on the depth of the cabinet (Fig. 27). Fig. 27: Assembling the rails (Rack Kit) 3. Attach the installation rails to the interior of the cabinet with bolts (Fig. 28).

  • Page 48: Installation Of The Ups With A Battery Module (Applies To Sinline Rt Xl Ups Units)

    EVER UPS SINLINE RT / RT XL series instruction manual Installation of the UPS with a battery module (applies to SINLINE RT XL UPS units) CAUTION! Taking into account the considerable weight of the devices, we recommend that two persons work together to install the UPS and the battery module in the rack cabinet.
  • Page 49 EVER UPS SINLINE RT / RT XL series instruction manual 6. Disconnect the conductors from the front panel (Fig. 33). Fig. 33: Disconnecting the conductors 7. Connect the yellow and green earthing conductor between the battery module and the UPS (Fig. 34).

  • Page 50: Disconnecting The Battery Module (Applies To Sinline Rt Xl)

    EVER UPS SINLINE RT / RT XL series instruction manual Fig. 36: UPS front panel Fig. 37: Module front panel Fig. 38: Cutting out the caps 10. Connect the conductors to the UPS unit's front panel. 11. Place the battery module's connecting conductors and the earthing conductor in the gap between the front panels.

  • Page 51: First Start-Up Of The Ups

    3. Connect the UPS to the mains socket with a power cord. 4. Press and keep the key on the UPS unit's front panel depressed for over 1 second to switch the device on. The LCD will show the welcome screen (EVER Power Systems).

  • Page 52: Starting Up The Ups Unit (Power Supply From The Mains)

    EVER UPS SINLINE RT / RT XL series instruction manual After these steps are completed, the unit begins normal operation. CAUTION! The battery reaches full capacity after approximately a month of mains operation mode. CAUTION! To maximize the performance of the battery, we recommend formatting it by discharging and recharging the battery three times.

  • Page 53: Switching The Ups Off

    EVER UPS SINLINE RT / RT XL series instruction manual 3. Make sure no active alarms or messages are displayed on the screen. If any such alarms or messages are present, check their meaning in the "Diagnostics of errors reported by the UPS".

  • Page 54: Replacing The Ups Unit's Internal Battery

    EVER UPS SINLINE RT / RT XL series instruction manual REPLACING THE UPS UNIT'S INTERNAL BATTERY The battery should be replaced if the icon is shown in the display or the operating time in back-up (battery) mode is too short. To order a new battery, contact service support.

  • Page 55: Replacing The Battery In The Ups

    EVER UPS SINLINE RT / RT XL series instruction manual REPLACING THE BATTERY IN THE UPS SINLINE RT 1000 - 1200 and SINLINE RT XL 650 - 850 CAUTION! Battery replacement can be conducted only when the UPS is in horizontal position (Rack version). Performing the operation in any other position may cause damage to the device.

  • Page 56: Sinline Rt 1600 - 3000 And Sinline Rt Xl 1250 - 2250

    12. Connect the conductors to the UPS unit's front panel. 13. Install the UPS unit's front panel. SINLINE RT 1600 - 3000 and SINLINE RT XL 1250 - 2250 CAUTION! Battery replacement can be conducted only when the UPS is in horizontal position (Rack version).
  • Page 57 EVER UPS SINLINE RT / RT XL series instruction manual Fig. 42: Layout and connection of the batteries 7. While sliding out the batteries one by one, disconnect the conductors connecting the batteries 1 - 4 in series, namely connections from the negative (-) terminal of battery no.

  • Page 58: Sinline Rt Xl 3000

    EVER UPS SINLINE RT / RT XL series instruction manual SINLINE RT XL 3000 CAUTION! Battery replacement can be conducted only when the UPS is in horizontal position (Rack version). Performing the operation in any other position may cause damage to the device.

  • Page 59: Replacing The Batteries In The Battery Module

    EVER UPS SINLINE RT / RT XL series instruction manual b) the black conductors connecting the batteries 5 - 8 in series, namely connections from the negative (-) terminal of battery no. 5 and the positive (+) terminal of the next battery, up to the positive (+) terminal of battery no. 8, c) the black conductor from the negative (-) terminal of battery no.
  • Page 60 EVER UPS SINLINE RT / RT XL series instruction manual 6. Disconnect the earthing conductor from the battery module. 7. Remove the bolts fixing the battery drawer (Fig. 45). Fig. 45: Disassembling the battery compartment drawer 8. Use the belt to carefully slide out the battery drawer (Fig. 46).
  • Page 61 EVER UPS SINLINE RT / RT XL series instruction manual Table 4. Division of batteries into packs SECTION 1 SECTION 2 SECTION 3 SECTION 4 Battery module for Connection of the Connection of the Connection of the Connection of the SINLINE RT XL batteries no.

  • Page 62: Communication With Pc

    EVER UPS SINLINE RT / RT XL series instruction manual 14. Connect the earthing conductor from the UPS to the battery module. 15. Connect the battery module's terminal to the UPS battery terminal. 16. Connect the conductors to the front panel (Fig. 21).

  • Page 63: Expansion Cards (Applies To Sinline Rt Xl Ups Units)

    EXPANSION CARDS (applies to SINLINE RT XL UPS units) EPO CARD The EPO card for SINLINE RT XL UPS units is optional and can be installed by the user. The card allows the user to remotely cut off the supply of power to devices connected to the UPS in emergency situations, such as a fire.
  • Page 64 EVER UPS SINLINE RT / RT XL series instruction manual 3. Undo the screws of the expansion slot cover (Fig. 49a). 4. Insert the card, making sure it is aligned properly (Fig. 49b). 5. Install the card slot cover to the rear panel (Fig.

  • Page 65: Operating Instructions

    The algorithm to calculate expected battery operating time offers the highest precision when the recommended types of batteries are used (for the list of recommended battery types, please see www.ever.eu). If batteries other than recommended are used, indications may become imprecise, which means the actual available time of backup operation may differ from the indicated time (Au.tm.).

  • Page 66: Interaction With Electrical Generators

    INTERACTION WITH ELECTRICAL GENERATORS The SINLINE RT / SINLINE RT XL UPS units are LINE INTERACTIVE (VI) class units designed to synchronize voltage with the mains voltage. The unit has been designed to tolerate voltage fluctuations in the range of ~ 178 - 281 V and changes of the frequency of ±...

  • Page 67: Disposal

    The device should be transported in its original packaging, under conditions specified in the product specification. EVER Sp. z o.o. shall not be liable for mechanical damages arising during the transport of the appliance without its original packaging. DISPOSAL...
  • Page 68 EVER UPS SINLINE RT / RT XL series instruction manual Customer Service Department to arrange maintenance and/or replacement of batteries or the complete UPS unit. Pomoc Techniczna, tel.: +48 61 6500 400 www.ever.eu 2017-04-26 12:41...

  • Page 69: Technical Parameters - Sinline Rt Series

    EVER UPS SINLINE RT / RT XL series instruction manual TECHNICAL PARAMETERS - SINLINE RT series SINLINE RT SINLINE RT SINLINE RT SINLINE RT SINLINE RT PARAMETERS \ TYPE 1000 1200 1600 2000 3000 W/SRTLRT- W/SRTLRT- W/SRTLRT- W/SRTLRT- W/SRTLRT- Part number...
  • Page 70 EVER UPS SINLINE RT / RT XL series instruction manual SINLINE RT SINLINE RT SINLINE RT SINLINE RT SINLINE RT PARAMETERS \ TYPE 1000 1200 1600 2000 3000 W/SRTLRT- W/SRTLRT- W/SRTLRT- W/SRTLRT- W/SRTLRT- Part number 001K00/00 001K20/00 001K60/00 002K00/00 003K00/00...

  • Page 71: Technical Parameters - Sinline Rt Xl Series

    EVER UPS SINLINE RT / RT XL series instruction manual TECHNICAL PARAMETERS - SINLINE RT XL series SINLINE SINLINE SINLINE SINLINE SINLINE SINLINE PARAMETERS \ TYPE RT XL RT XL RT XL RT XL RT XL 650 RT XL 850...
  • Page 72 EVER UPS SINLINE RT / RT XL series instruction manual SINLINE SINLINE SINLINE SINLINE SINLINE SINLINE PARAMETERS \ TYPE RT XL RT XL RT XL RT XL RT XL 650 RT XL 850 1250 1650 2250 3000 W/SRTXR W/SRTXR W/SRTXR...

  • Page 73: Diagnostics Of Errors Reported By The Ups

    EVER UPS SINLINE RT / RT XL series instruction manual DIAGNOSTICS OF ERRORS REPORTED BY THE UPS SINLINE RT / SINLINE RT XL UPS units are designed for long-term operation. Even if, despite the unit's high reliability, problems occur, it will alarm the user about them.
  • Page 74 EVER UPS SINLINE RT / RT XL series instruction manual The UPS is in The battery is discharged and waits until Once the power supply is back and the STOP mode and minimal charge is reached. No power battery reaches the minimal charge level, the is logically on ( supply.

  • Page 75: Legal Regulations And Warranty

    EVER Sp. z o.o. shall not be liable for any direct, indirect, extraordinary, coincidental, or consequential losses resulting from the use of the UPS unit, even if the user has not been notified of the possibility of such losses being incurred.
