Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download

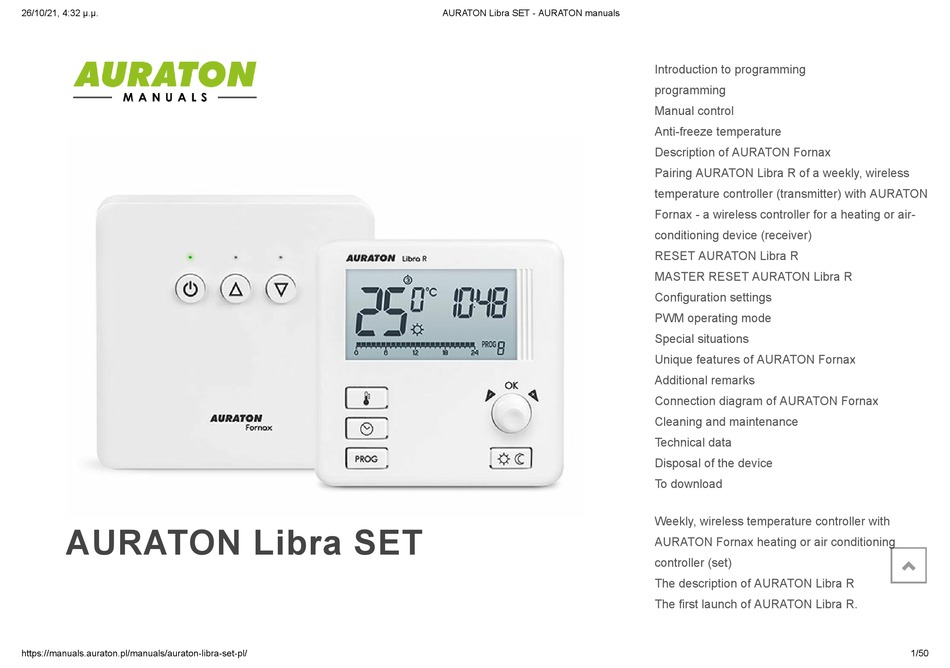

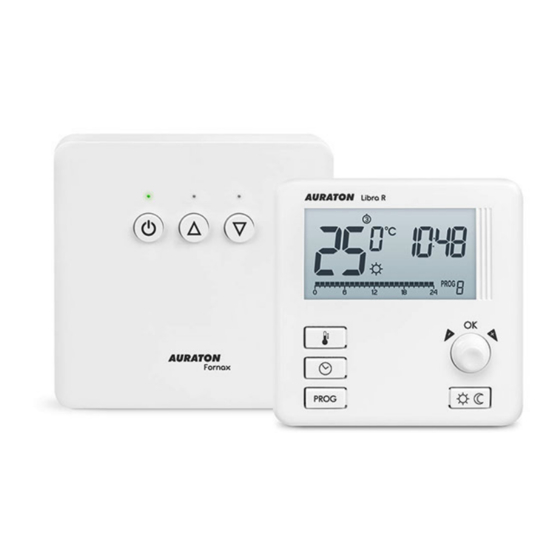

Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.
1/50
