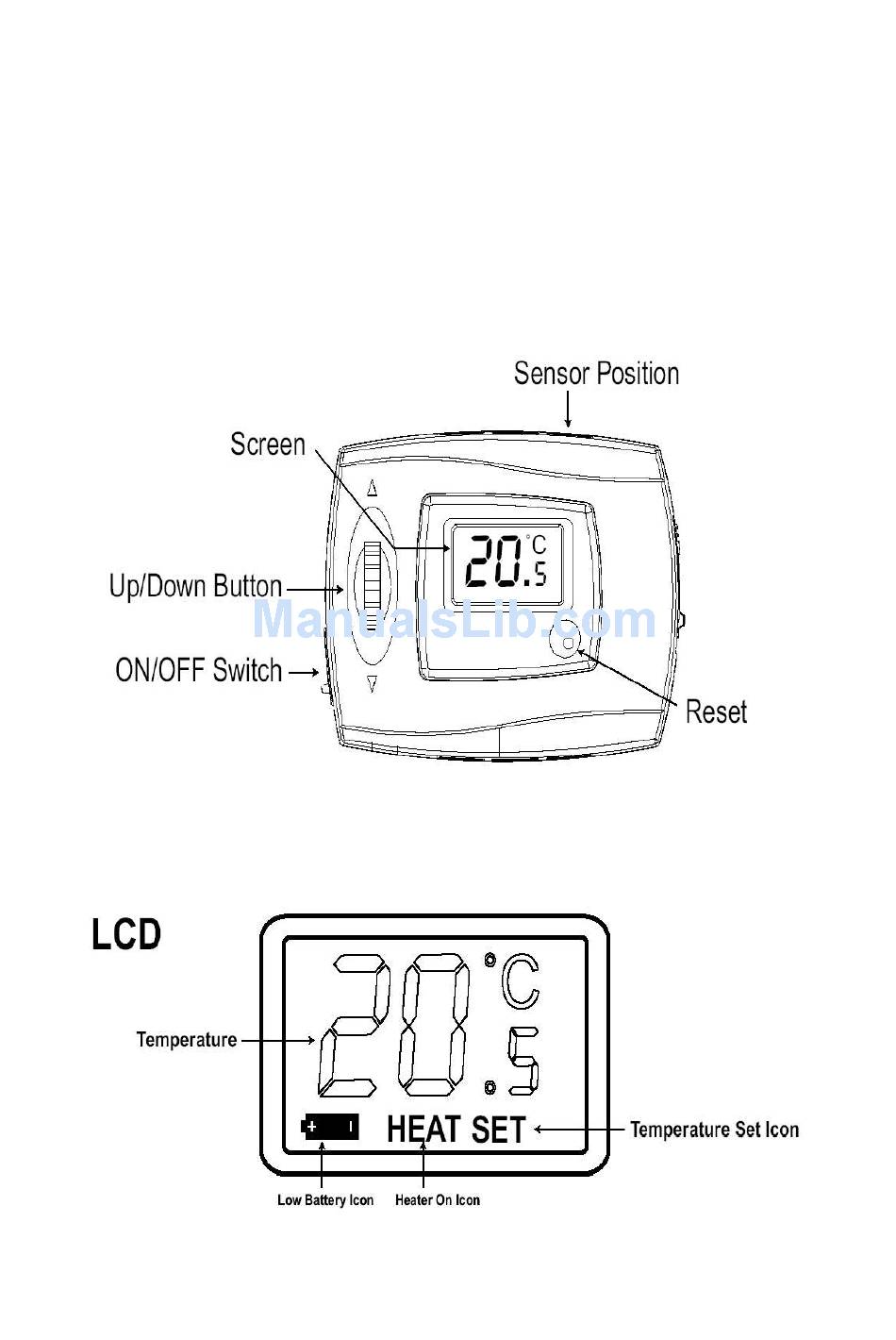

- Page 1 USER'S MANUAL AURATON 1300 I INTRODUCTION This thermostat is designed to be used with electric, gas or oil heating system. Appearance...
- Page 2 Features Several useful functions and operating modes have been incorporated to adapt a variety of customer needs. • Room Temperature Display • Heater Operation Mode • Low Battery Indicator • On/Off Switch II INSTALLATION Select a suitable location for the thermostat. The location of the thermostat can greatly affect its performance.
- Page 3 • Connecting the Wires The AURATON 1300 thermostat can be used with single stage heating system. Inside the thermostat, three terminals which label COM(common), NC(normal close) and NO(normal open) would be found. In most case, COM and NO are used.
- Page 4 Temperature Measurement ‘HI’ will be shown when temperature is above 40°C and ‘LO’ will be shown when temperature falls below 0°C. Power Installation The thermostat is operated by two AAA 1.5V Alkaline batteries. To power-up the unit, install the batteries and slide the ON/OFF switch to ON position. When power is supplied for the first time or reset button is pressed, the display will show as follows: If the display is different as shown, use a fine probe such as straightened paper clip to gently push the reset button.
- Page 5 wrap around at two ends. When pushing the button to increase the temperature to 35°C, it is no further increment. • Likewise, when pushing button to decrease the temperature to 5°C, it is no further decrement. IV LOW BATTERY OPERATION When the voltage of the battery decrease to certain level, the LCD will be blank.
- Page 6 VI SPECIFICATIONS Physical Characteristics Size 98(W)X 28(L)X 73(H) mm Material Polycarbonate (PC) Weight 98g (battery not included) Electrical Characteristics Power Source AAA 1.5V Alkaline battery x 2 Switching Relay: Resistive load 5A at 250VAC Inductive load 3A at 250VAC Temperature Measuremen 0 - 40°C Temperature Accuracy ±1.0°C...
