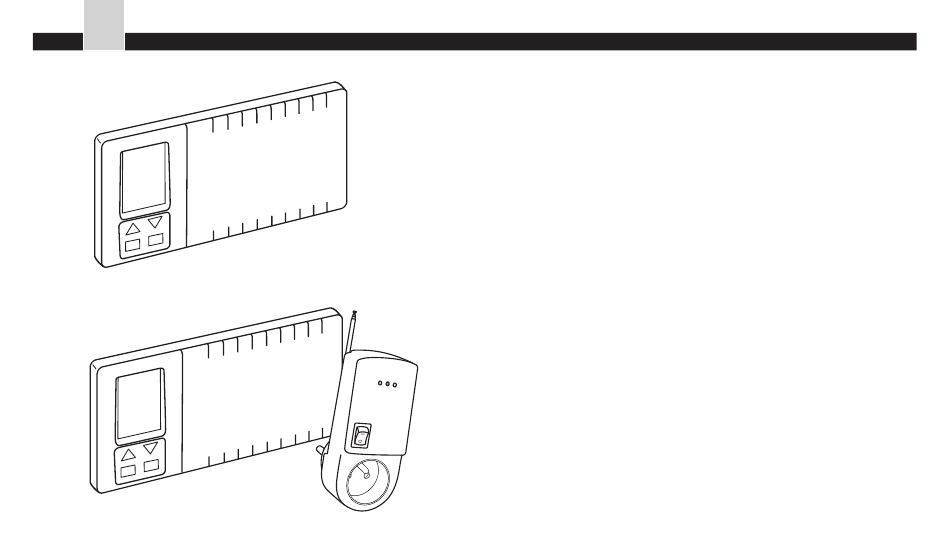

Preliminary notes
The manual includes the information on AURATON 2020
and AURATON 2020 TX RX Plus controllers.
Operation of both the controllers is identical; therefore the
whole information is placed in a single chapter. The
information related to their installation is placed in separate
sections of the manual.
AURATON 2020 TX Plus
modification of the protection code of the RX receiver
communication.
The controller is programmed in the factory to 085
code number. Nevertheless, if any communication
problem arises or another wireless temperature
controller set operates in the neighbourhood, the code
should be changed in accordance with the instruction
at page 51.
