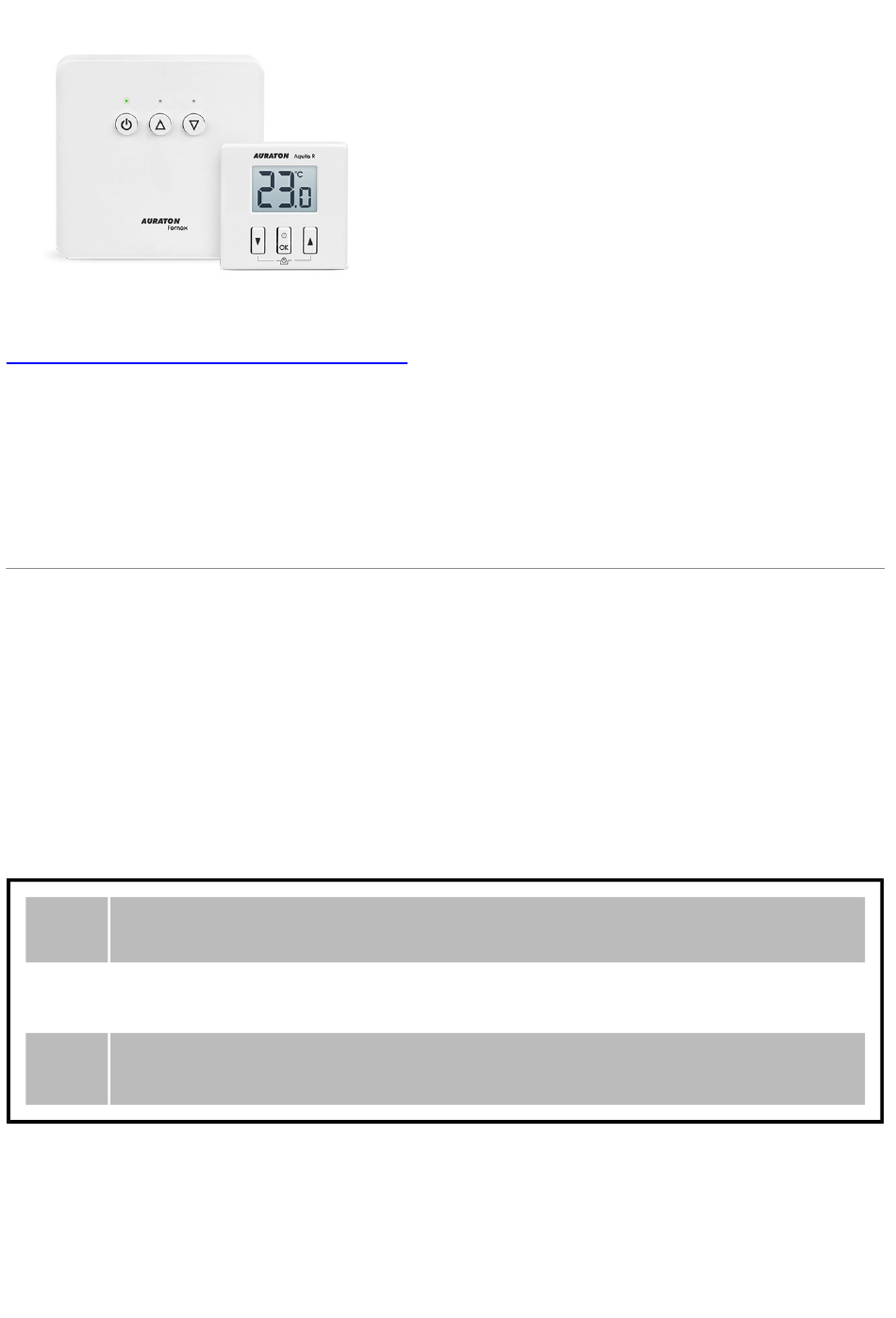

AURATON Aquila SET
User manual ver. 20200829
The document presents collected information on safety, assembly and use of AURATON Aquila SET.
Daily wireless temperature regulator with heating device
controller Auraton Fornax (set)
AURATON Aquila SET is a set of a daily wireless temperature regulator with a controller of the
AURATON Fornax heating device, designed to work with a gas or electric heating device.
U
FrostGuard function
to protect against freezing of the room.
&
Possibility of cyclic lowering the programmed temperature by 3 °C for a period of 6
hours.
Backlit LCD display
LCD
The backlit display makes it possible to monitor the device's operation even in poorly lit
rooms.
Description AURATON Aquila R

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aquila SET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AURATON Aquila SET

Summary of Contents for AURATON Aquila SET

  • Page 1 Daily wireless temperature regulator with heating device controller Auraton Fornax (set) AURATON Aquila SET is a set of a daily wireless temperature regulator with a controller of the AURATON Fornax heating device, designed to work with a gas or electric heating device.
  • Page 2 24-Hour Wireless Thermostat (transmitter) On the front panel of AURATON Aquila R, there is a backlit LCD display and three function buttons. LCD display Temperature increase button Temporary temperature reduction mode buttons Temperature decrease button Pairing buttons Approval or on/off button. AURATON Aquila R •...
  • Page 3 Display Temperature In normal operation mode, AURATON Aquila R displays the temperature of the room in which it is installed. Temperature unit ( Indicates that the temperature is displayed in degrees Celsius. Temporary temperature lowering mode indicator ( Active during a temperature cutback timer program.

  • Page 4: Battery Installation/Replacement

    Choosing the right location for AURATON Aquila R The correct operation of AURATON Aquila R is largely influenced by its location. Using the device in a place with no air circulation or a place with direct sunlight may result in incorrect temperature control.
  • Page 5 AURATON Aquila R housing). Insert the wall plugs into the drilled holes. Screw the back part of the AURATON Aquila R housing to the wall using the screws provided. Install the batteries and attach the housing.

  • Page 6: Alternative Mounting Methods

    Alternative mounting methods AURATON Aquila R can be fixed to a smooth surface using e.g. a double-sided tape. AURATON Aquila R can also be placed anywhere on a level surface using the stand located on the back of the housing.

  • Page 7: Temperature Setting

    AURATON Aquila R is ready for operation. Temperature setting NOTE: The first press of any function button always turns on the backlighting, and only the next press calls up the button function. In order to set the desired (setpoint) temperature in the normal mode of operation, you should Press the button.
  • Page 8 This function is activated even if AURATON Aquila R is switched off. With AURATON Aquila R switched off, when the temperature in the room drops to 2 °C, the symbols ) appear on the display, and a signal is sent to the head, which will switch on the heating. When the temperature rises to 2.2 °C, the display turns off...
  • Page 9 NOTE: After 6 hours, AURATON Aquila R returns to the basic temperature setting. Instead of the moon symbol ( ), the sun symbol ( ) will appear on the screen. NOTE: The „temporary temperature lowering ” mode always starts when the function is activated. This means that a possible temporary temperature reduction should be programmed at the time when we you such a change to take place.
  • Page 10 Detachable power connector terminals 230 V AC Mounting hole Power button Power supply diode Button to unpair devices Diode indicating that the actuator device is switched on Diode indicating that the actuator device has been switched off Button to pair devices with the receiver Control connectors Legend –...
  • Page 11 NOTE: while installing the AURATON Fornax receiver, the power supply should be turned off. It is recommended to entrust the installation of the receiver to a specialist.
  • Page 12 AURATON Fornax. Wires can be routed from the bottom of AURATON Fornax after holes are punched in the mounting plug or from the back of AURATON Fornax if the wires are pulled out of the wall. To connect from the back, break the plug.
  • Page 13 Connect the heating device to the clips of the AURATON Fornax control connector. Follow the service manual of the heating device. COM (common) and NO (normally open circuit) clips are most commonly used. Connect the power supply wires to the clips of the power supply connector of the AURATON Fornax...
  • Page 14 Wire mounting bracket. Once the wires are connected, secure them with the „wire mounting bracket” and screw the cover back onto the AURATON Fornax receiver. Mounting AURATON Fornax – heating device controller (receiver) onto a wall...
  • Page 15 Mark the location of the holes for the mounting screws on the wall. Drill holes with diameters of the attached plugs (5 mm) where marked. Insert wall plugs into the drilled holes. Screw the AURATON Fornax receiver to the wall with the screws, so that the device is fixed securely. NOTE: If the wall is wooden, there is no need to use wall plugs.
  • Page 16 ) on the AURATON Fornax receiver and holding it for at least 3 seconds until the LED starts flashing green (a double beep), then releasing the button. The AURATON Fornax receiver will wait 120 seconds for pairing. After this time elapses, it will automatically return to normal operation.
  • Page 17 If an error occurs during unpairing of AURATON Aquila R, repeat steps 1 and 2. In case further errors occur, perform RESET of AURATON Fornax (see „RESET – Returning AURATON Fornax to factory...
  • Page 18 RESET – Returning AURATON Fornax to factory settings In order to perform a reset to the factory settings in AURATON Fornax, both pairing and deleting buttons ( ) should be pressed simultaneously and held for at least 5 seconds. until LED signalling changes to alternate blinking in green –...
  • Page 19 fluctuations. AURATON Aquila R checks the times of temperature rise and times of temperature fall. Knowing these values, the AURATON Aquila R switches the heating device on and off in such cycles as to maintain the temperature as close to the setpoint value as possible.
  • Page 20 Room temperature NOTE: In the PWM mode, the AURATON Aquila R can switch on the heating device despite the fact that the room temperature is higher than the setpoint temperature. This is due to the PWM algorithm seeking to maintain the setpoint temperature and anticipating the behaviour of the thermal system.
  • Page 21 AURATON Fornax AURATON Aquila R Receiver connected daily wireless temperature regulator. to the heating device Diagram of connection of AURATON Fornax 1 – Heating device...

  • Page 22: Additional Information

    Aquila R transmits control data every 5 minutes (it manifests itself by momentary blinking of diodes on the Fornax receiver – alternately). In the event of a power failure, AURATON Fornax will switch off. When power is restored, AURATON Fornax will automatically turn on and wait for the nearest signal from the paired...

  • Page 23: Cleaning And Maintenance

    Do not place the Fornax receiver in metal housings (e.g. installation box, metal furnace housing) so as not to interfere with AURATON Aquila R operation. AURATON Aquila R can be switched on or off at any time by momentarily holding down the button.
  • Page 24 1 – Control 2 – Heating device, e.g. a gas furnace...

  • Page 25: Technical Specifications

    1 – Electric heating or air conditioning device 2 – protective ( Technical specifications Working temperature range: 0 – 45 °C in a typical building with standard wall construction – approx. 30 m; Operation range: in open space – up to 300 m 868.850 MHz Radio frequency: 869.000 MHz...
  • Page 26 AURATON Aquila R: Power supply: 2 x AAA (2 x 1.5 V), alkaline Working status signaling: LCD display Number of temperature levels: Anti-freeze temperature: 2 °C Temperature measurement range: 0 – 35 °C Temperature control range: 5 – 30 °C Hysteresis: ±0.2 °C/±0.4 °C/PWM...
  • Page 27 Hereby, LARS Andrzej Szymanski declares that the radio equipment type AURATON Aquila SET is in compliance with Directive 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available in the download section below. Contact and address of the manufacturer Lars ul.
