AURATON Aquila R
User manual ver. 20200927
The document presents collected information on safety, assembly and use of AURATON Aquila R.
24-Hour Wireless Thermostat
AURATON Aquila R is a daily wireless temperature regulator.
U
FrostGuard function
to protect against freezing of the room.
&
Possibility of cyclic lowering the programmed temperature by 3 °C for a period of 6 hours.
Backlit LCD display
LCD
The backlit display makes it possible to monitor the device's operation even in poorly lit
rooms.
Description AURATON Aquila R

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aquila R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AURATON Aquila R

Summary of Contents for AURATON Aquila R

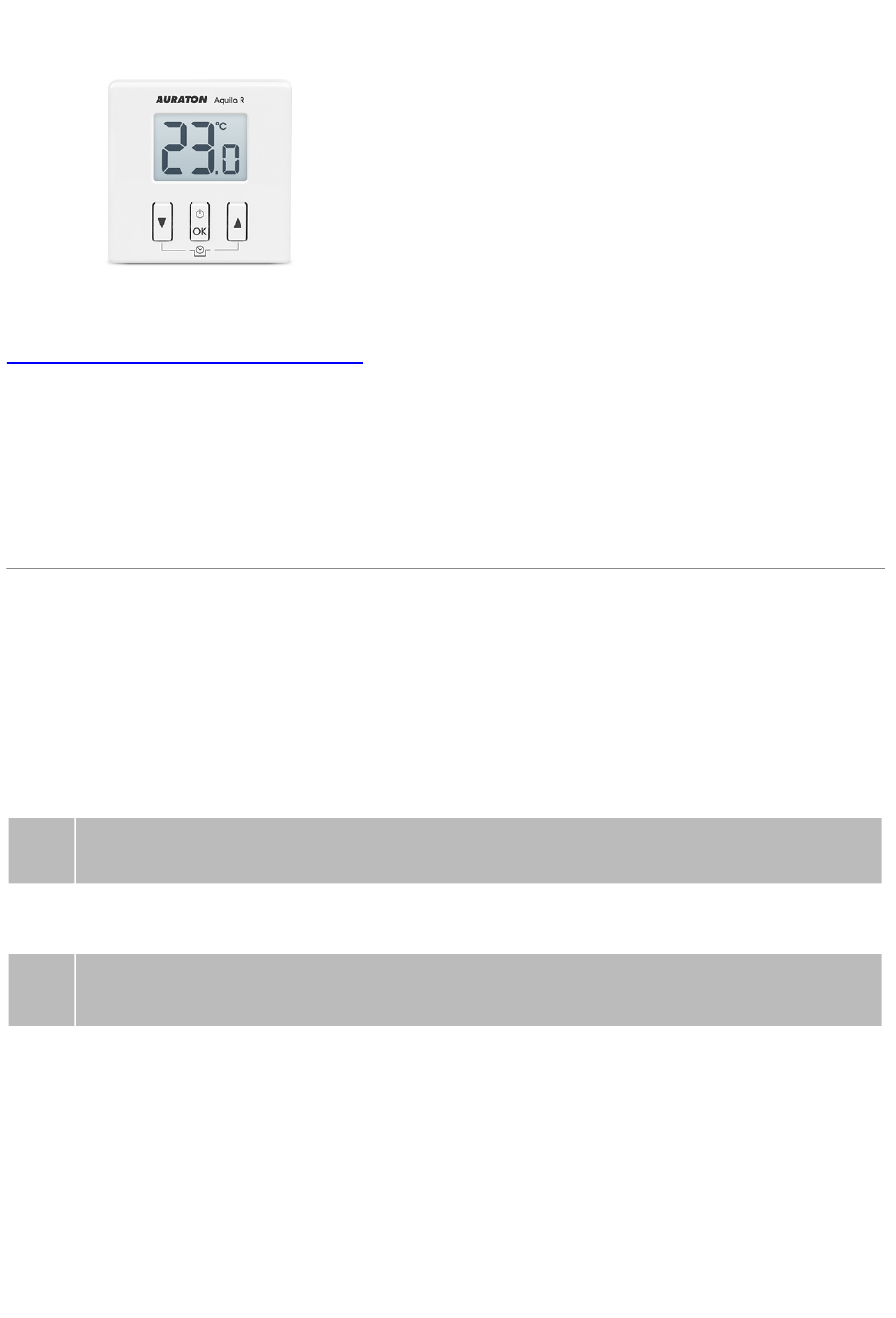

  • Page 1 AURATON Aquila R User manual ver. 20200927 The document presents collected information on safety, assembly and use of AURATON Aquila R. 24-Hour Wireless Thermostat AURATON Aquila R is a daily wireless temperature regulator. FrostGuard function to protect against freezing of the room.

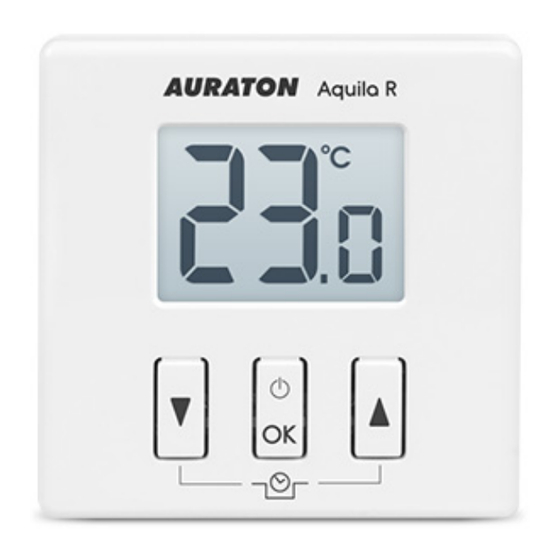

  • Page 2 24-Hour Wireless Thermostat (transmitter) On the front panel of AURATON Aquila R, there is a backlit LCD display and three function buttons. LCD display Temperature increase button Temporary temperature reduction mode buttons Temperature decrease button Pairing buttons Approval or on/off button. AURATON Aquila R •...
  • Page 3 Display Temperature In normal operation mode, AURATON Aquila R displays the temperature of the room in which it is installed. Temperature unit ( Indicates that the temperature is displayed in degrees Celsius. Temporary temperature lowering mode indicator ( Active during a temperature cutback timer program.

  • Page 4: Battery Installation/Replacement

    Choosing the right location for AURATON Aquila R The correct operation of AURATON Aquila R is largely influenced by its location. Using the device in a place with no air circulation or a place with direct sunlight may result in incorrect temperature control.
  • Page 5 AURATON Aquila R housing). Insert the wall plugs into the drilled holes. Screw the back part of the AURATON Aquila R housing to the wall using the screws provided. Install the batteries and attach the housing.

  • Page 6: Alternative Mounting Methods

    Alternative mounting methods AURATON Aquila R can be fixed to a smooth surface using e.g. a double-sided tape. AURATON Aquila R can also be placed anywhere on a level surface using the stand located on the back of the housing.

  • Page 7: Temperature Setting

    AURATON Aquila R is ready for operation. Temperature setting NOTE: The first press of any function button always turns on the backlighting, and only the next press calls up the button function. In order to set the desired (setpoint) temperature in the normal mode of operation, you should Press the button.
  • Page 8 This function is activated even if AURATON Aquila R is switched off. With AURATON Aquila R switched off, when the temperature in the room drops to 2 °C, the symbols ( appear on the display, and a signal is sent to the head, which will switch on the heating. When the temperature rises to 2.2 °C, the display turns off...
  • Page 9 NOTE: After 6 hours, AURATON Aquila R returns to the basic temperature setting. Instead of the moon symbol ( ), the sun symbol ( ) will appear on the screen. UWAGA: The “temporary temperature lowering ” mode always starts when the function is activated. This means that a possible temporary temperature reduction should be programmed at the time when we you such a change to take place.
  • Page 10 The AURATON Aquila R wireless regulator sold together with the AURATON Fornax receiver is already paired. Devices purchased separately require “pairing”. Pairing AURATON Aquila R with an AURATON Fornax receiver is initiated by pressing the right pairing button – a single beep ( ) on the AURATON Fornax receiver and holding it for at least 3 seconds until the LED starts flashing green (a double beep), then releasing the button.
  • Page 11 If an error occurs during unpairing of AURATON Aquila R, repeat steps 1 and 2. In case further errors occur, perform RESET of AURATON Fornax (see “RESET – Returning AURATON Fornax to factory settings”).
  • Page 12 HI 2 – ±0,2 °C (factory set) HI 4 – ±0,4 °C HI P – PWM mode of operation (chapter “PWM mode of operation”). Confirm the selection with the button. AURATON Aquila R will return to normal operation.
  • Page 13 fluctuations. AURATON Aquila R checks the times of temperature rise and times of temperature fall. Knowing these values, the AURATON Aquila R switches the heating device on and off in such cycles as to maintain the temperature as close to the setpoint value as possible.

  • Page 14: Special Cases

    Additional information and comments AURATON Aquila R must be installed at least 1 metre from the Fornax receiver (too strong a signal from the transmitters may cause interference). Between successive switching off and on the relay, min. 30 seconds must elapse.

  • Page 15: Cleaning And Maintenance

    Cleaning and maintenance Clean the outside of the device with a dry cloth. Do not use solvents (such as benzene, thinner or alcohol). Do not touch the device with wet hands. It may result in an electric shock or serious damage to the device.
  • Page 16 The user shall return it to a collection point for electrical and electronic waste. Hereby, LARS Andrzej Szymanski declares that the radio equipment type AURATON Aquila R is in compliance with Directive 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available in the download section below.
