  • Page 1 AURATON Auriga - AURATON manuals AURATON Auriga 1/23...
  • Page 2 The document contains information on the safety, installation and use of the AURATON Auriga device. A daily, wired temperature controller AURATON Auriga is a daily, wired temperature controller designed to work with a gas or electric heating device. FrostGuard function to protect the room against freezing.

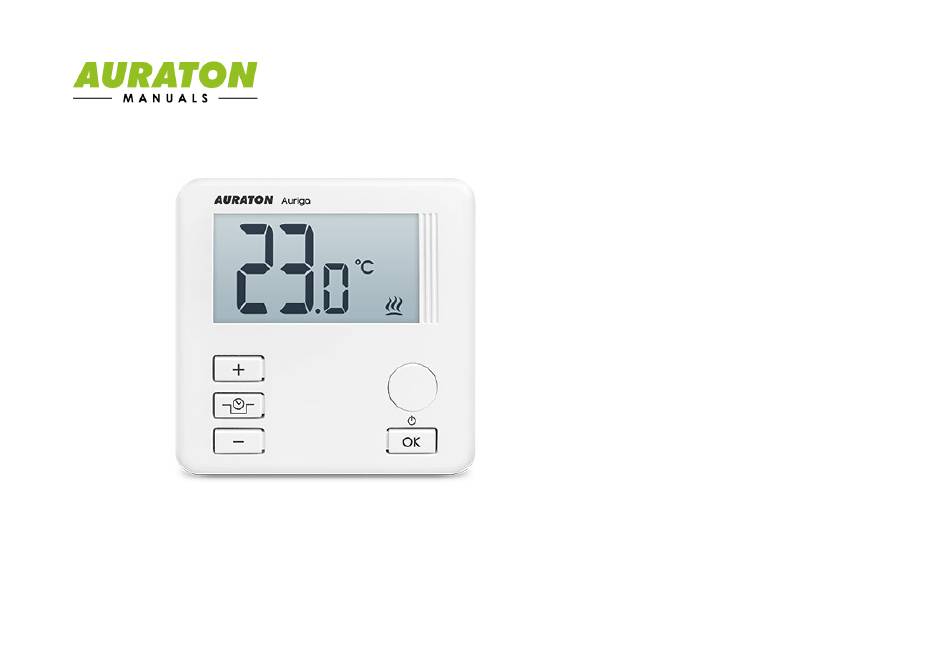

  • Page 3 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals On the front part of the housing there are a backlit LCD display and four function buttons. 1. LCD display 2. confirm button or on / off button regulator 3. temperature decrease button 4.
  • Page 4 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals 2. Battery exhausted ( The indicator is visible when the minimum permissible battery voltage is exceeded. Replace the batteries as soon as possible. NOTE: To maintain AURATON Auriga settings, battery replacement should take less than 30 seconds.
  • Page 5 ( Pictogram informing about the device's operating status. Visible when the controlled device is turned 7. Temporary temperature decrease mode indicator ( Appears while the temporary temperature decrease program is running. Choosing the right location for AURATON Auriga 5/23...
  • Page 6 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals The correct operation of AURATON Auriga is largely influenced by its location. Location in a place with no air circulation or direct sunlight may result in incorrect temperature control. AURATON Auriga should be installed on the internal wall of the building (partition wall), in an environment with free air circulation.
  • Page 7 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals Connecting the cables to the AURATON Auriga To connect the wires, remove the cover as shown below: The cable clamps are located on the back of the AURATON Auriga, under the plastic cover. 7/23...
  • Page 8: Installing/Replacing The Battery

    26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals 1. cover 2. screw 3. wire clamps It is a typical single-pole two-state relay. In most cases, the NC terminal is not used. NOTE: After connecting the wires, put the plastic cover back on.
  • Page 9 "Connecting the cables to the AURATON Auriga". NOTE: We recommend alkaline batteries to power AURATON controllers. Do not use rechargeable batteries because the rated voltage is too low. 9/23...
  • Page 10 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals 1 - battery socket 2 x AAA 1.5V Insert two AAA 1.5V batteries into the battery socket, paying attention to the correct polarity of the batteries. 10/23...
  • Page 11 To fix the AURATON Auriga controller to the wall: 1. Remove the cover (as shown in the section "Connecting the cables to the AURATON Auriga"). 2. Drill two holes 6 mm in diameter in the wall (mark the spacing between the holes using the back part of the controller housing).
  • Page 12 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals 1 - fixing screw hole. Putting the cover on: NOTE When putting the front part of the housing back on the rear part, pay attention to the pins that control the relay.
  • Page 13 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals 1. Front housing 2. Rear housing 3. Pins 4. Pin connector socket or the place where pins contact the board ATTENTION: When assembling the housing, make sure that the connection "pins" are not bent and fall into their place on the relay board.
  • Page 14: Temperature Setting

    26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals After the batteries are correctly inserted into the sockets, all segments (display test) will appear on the LCD display for a second, followed by the software version number. After a while, the current room temperature will be displayed automatically.
  • Page 15 3 ° C for a period of 6 hours. NOTE: After 6 hours, the AURATON Auriga will return to its base temperature setting. Instead of the moon symbol ( ), the sun symbol ( )will appear on the screen.
  • Page 16 This function is activated when AURATON Auriga is turned off . With the AURATON Auriga turned off, when the room temperature drops to 2 ° C, the Fr ) And symbols appear on the display and the relay will turn on. When the temperature rises to 2.2 °...
  • Page 17 HI 2 - ± 0.2 ° C (factory set) HI 4 - ± 0.4 ° C HI P - PWM operating mode (chapter "PWM operating mode"). Confirm your choice by pressing AURATON Auriga will return to normal operation. 17/23...
  • Page 18 By changing the hysteresis settings (chapter "Configuration settings"), we can turn on the PWM operating mode. In this mode, AURATON Auriga cyclically switches on the heating device in order to minimize temperature fluctuations. AURATON Auriga checks the temperature rise times and the temperature drop times.
  • Page 19 After the heating device is turned off, the relay will be turned on again not earlier than after 90 seconds . Remarks 1. The AURATON Auriga can be turned on or off at any time by momentarily holding down the button .
  • Page 20 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals 20/23...
  • Page 21: Cleaning And Maintenance

    26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals 1. Heating device, e.g. gas stove 2. Electric heater (MAX 230V AC, 16 A) Cleaning and maintenance The outside of the device should be cleaned with a dry cloth. Do not use solvents (such as benzene, thinner, or alcohol).
  • Page 22: Disposal Of The Device

    26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals Number of temperature levels: Anti-freeze temperature: 2 ° C Temperature measuring range: 0-35 ° C Temperature control range: 5 - 35 ° C Temperature setting accuracy: 0.2 ° C Hysteresis: ± 0.2 ° C / ± 0.4 ° C / PWM Relay load capacity: Max.
  • Page 23 26/10/21, 1:37 μ.μ. AURATON Auriga - AURATON manuals ABOUT The devices are marked with the symbol of a crossed-out waste container. In accordance with the European Directive 2012/19 / EU and the Waste Electrical and Electronic Equipment Act, such marking informs that this equipment, after its useful life, cannot be placed together with other household waste.
