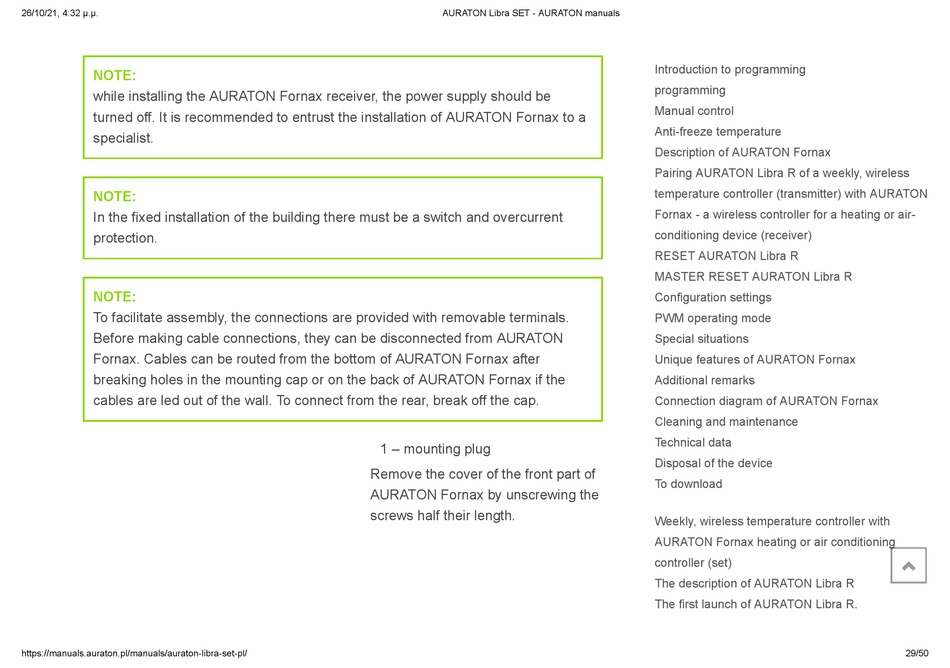

NOTE:
while installing the AURATON Fornax receiver, the power supply should be
turned off. It is recommended to entrust the installation of AURATON Fornax to a
specialist.
NOTE:
In the fixed installation of the building there must be a switch and overcurrent
protection.
NOTE:
To facilitate assembly, the connections are provided with removable terminals.
Before making cable connections, they can be disconnected from AURATON
Fornax. Cables can be routed from the bottom of AURATON Fornax after
breaking holes in the mounting cap or on the back of AURATON Fornax if the
cables are led out of the wall. To connect from the rear, break off the cap.
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
AURATON Libra SET - AURATON manuals
1 – mounting plug
Remove the cover of the front part of
AURATON Fornax by unscrewing the
screws half their length.
