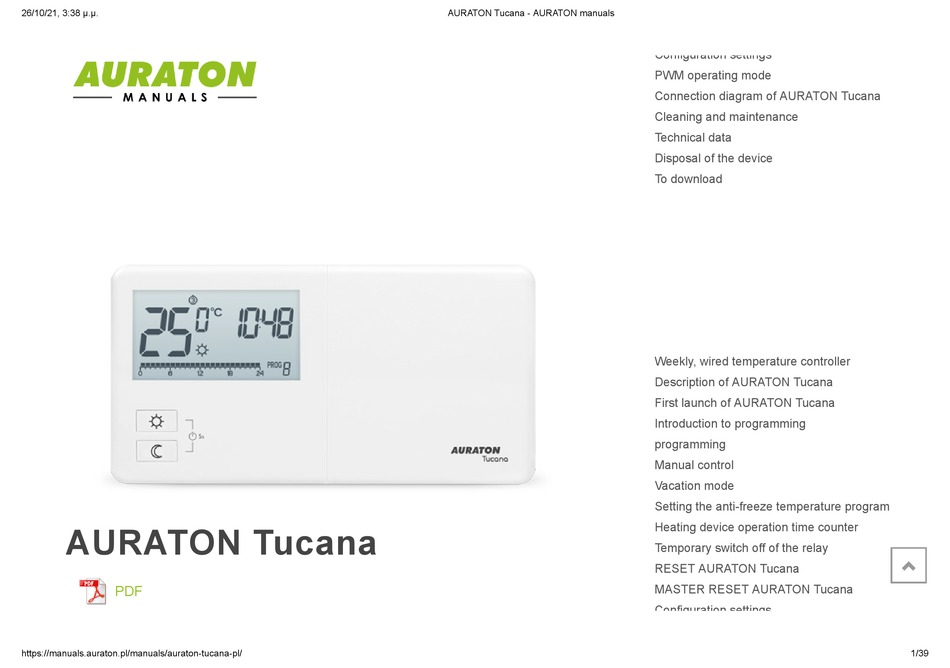

26/10/21, 3:38 μ.μ.
AURATON Tucana
PDF
https://manuals.auraton.pl/manuals/auraton-tucana-pl/
AURATON Tucana - AURATON manuals
Configuration settings
PWM operating mode
Connection diagram of AURATON Tucana
Cleaning and maintenance
Technical data
Disposal of the device
To download

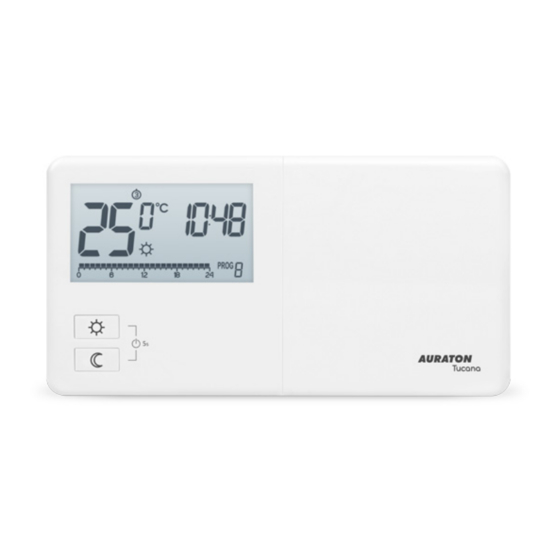

Weekly, wired temperature controller
Description of AURATON Tucana
First launch of AURATON Tucana
Introduction to programming
programming
Manual control
Vacation mode
Setting the anti-freeze temperature program
Heating device operation time counter
Temporary switch off of the relay
RESET AURATON Tucana
MASTER RESET AURATON Tucana
Configuration settings
1/39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tucana and is the answer not in the manual?

Questions and answers

Related Manuals for AURATON Tucana

Summary of Contents for AURATON Tucana

  • Page 1 26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings PWM operating mode Connection diagram of AURATON Tucana Cleaning and maintenance Technical data Disposal of the device To download Weekly, wired temperature controller Description of AURATON Tucana First launch of AURATON Tucana...
  • Page 2 Technical data Disposal of the device Weekly, wired temperature controller To download AURATON Tucana is a weekly, wired temperature controller, designed to work with a gas or electric heating device. 4 independently adjustable temperatures Day, night, anti-freeze, holiday. Weekly, wired temperature controller Description of AURATON Tucana &...
  • Page 3 Connection diagram of AURATON Tucana Cleaning and maintenance On the front of the AURATON Tucana case, on the right side, you will find a sliding Technical data cover. After opening it, the buttons are visible. The cover can be removed for battery Disposal of the device replacement.
  • Page 4 ) - Indicates the day of the week. Each day is assigned a Description of AURATON Tucana number. First launch of AURATON Tucana 2. Temperature - In normal operation mode, AURATON Tucana displays the Introduction to programming temperature of the room in which it is installed. programming 3.
  • Page 5 PWM operating mode chapter: "Timeline") Connection diagram of AURATON Tucana 6. Day mode indicator ( Cleaning and maintenance Indicates AURATON Tucana is operating in day mode. (see chapter: "Temperature Technical data programming") Disposal of the device To download 7. Night mode indicator ( Indicates AURATON Tucana is operating in night mode.
  • Page 6 30 seconds. Cleaning and maintenance Technical data Disposal of the device To download Choosing the right location for AURATON Tucana Weekly, wired temperature controller Description of AURATON Tucana First launch of AURATON Tucana Introduction to programming...
  • Page 7 Location in a place with no air circulation or direct sunlight may result in incorrect Vacation mode temperature control. AURATON Tucana should be installed on the internal wall of the Setting the anti-freeze temperature program building (partition wall), in an environment of free air circulation. Avoid proximity to heat Heating device operation time counter emitting devices (TV, heater, refrigerator) or locations exposed to direct sunlight.

  • Page 8: Battery Change

    Connecting cables to AURATON Tucana Connection diagram of AURATON Tucana Cleaning and maintenance The cable clamps are located on the back of the AURATON Tucana. It is a typical Technical data single-pole two-state relay. In most cases, the NC terminal is not used.
  • Page 9 3. Tighten the left screw with 3mm of play. Manual control Vacation mode 4. Put the AURATON Tucana over the screw head and move it to the right (pay Setting the anti-freeze temperature program attention to the keyhole-like hole on the rear cover of the AURATON Tucana.
  • Page 10 First launch of AURATON Tucana Introduction to programming programming Manual control 5. Screw in the right screw so that it holds the mounted AURATON Tucana firmly. Vacation mode Setting the anti-freeze temperature program Heating device operation time counter Temporary switch off of the relay ...
  • Page 11 26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings PWM operating mode Connection diagram of AURATON Tucana Cleaning and maintenance Technical data Disposal of the device To download Weekly, wired temperature controller Description of AURATON Tucana First launch of AURATON Tucana...
  • Page 12 Weekly, wired temperature controller Description of AURATON Tucana First launch of AURATON Tucana The AURATON Tucana will go to the Introduction to programming minutes setting. The setting is carried programming out again using the...

  • Page 13: Clock Settings

    NOTE: When setting the hours for the first time, if you do not press any button for 60 seconds, AURATON Tucana will automatically switch to the normal operating mode. NOTE: When programming any other functions, if you do not press any button for 10 seconds, you will use the buttons .
  • Page 14 26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings PWM operating mode Connection diagram of AURATON Tucana Cleaning and maintenance Technical data Disposal of the device To download 3. Then press the button again . The minute segment will start flashing.
  • Page 15 26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings 2. Use the buttons to select the PWM operating mode appropriate day of the week. Connection diagram of AURATON Tucana 3. Confirm the whole process with the Cleaning and maintenance...
  • Page 16 - 19.0 ° C anti-freeze temperature - 7.0 ° C Programming day, night and anti-freeze temperatures AURATON Tucana allows you to program 3 types of temperature: Weekly, wired temperature controller Description of AURATON Tucana Day temperature ( ) - 5 to 30 ° C...
  • Page 17 Manual control To disable the anti-freeze temperature Vacation mode in AURATON Tucana, set the "dash Setting the anti-freeze temperature program symbol" on the display (below 0 ° C or Heating device operation time counter above 10 ° C) when programming this Temporary switch off of the relay temperature .

  • Page 18: Introduction To Programming

    Description of AURATON Tucana First launch of AURATON Tucana The figure above shows that from 6.00 a.m. to 11.00 p.m. AURATON Tucana will Introduction to programming control the heating device in such a way that the room temperature is at the daytime...

  • Page 19: Weekly Programming

    AURATON Tucana - AURATON manuals Configuration settings In order for AURATON Tucana to know when to turn on the day and night temperature, PWM operating mode it should be set to an appropriate program for each day of the week. For this purpose,...
  • Page 20 AURATON Tucana - AURATON manuals Configuration settings The programming of AURATON Tucana consists in defining the hours at which the day PWM operating mode temperature is to be realized for a given day of the week. The night temperature then Connection diagram of AURATON Tucana applies during the rest of the time.

  • Page 21: Program Selection

    26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings 8:00 am - 11:00 PWM operating mode Saturday Connection diagram of AURATON Tucana Cleaning and maintenance 8:00 am - 11:00 Technical data Sunday Disposal of the device To download Program selection To set the program: 1.
  • Page 22 26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings and select the desired program PWM operating mode number. Programs 0-2 are factory- Connection diagram of AURATON Tucana set, programs 3-9 are programs that Cleaning and maintenance can be modified.
  • Page 23 26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings of the week on which the program is PWM operating mode to be carried out. Connection diagram of AURATON Tucana Cleaning and maintenance Technical data Disposal of the device To download 3.

  • Page 24: Manual Control

    26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings 5. Button select the day PWM operating mode temperature (rectangle on) or night Connection diagram of AURATON Tucana temperature (rectangle off) in the time Cleaning and maintenance line. Technical data...

  • Page 25: Vacation Mode

    Sometimes we leave our homes for longer periods. To avoid reprogramming the entire Setting the anti-freeze temperature program AURATON Tucana from scratch, we can use the vacation mode, which makes Heating device operation time counter AURATON Tucana realize only one temperature during our absence. The vacation Temporary switch off of the relay ...
  • Page 26 First launch of AURATON Tucana Introduction to programming programming If we do not confirm the selection, AURATON Tucana will automatically go to the Manual control holiday mode set after 10 seconds. To exit the vacation mode, press the Vacation mode buttons .
  • Page 27 Technical data program Disposal of the device In AURATON Tucana, you can set the anti-freeze temperature in the range from 0 ° C To download to 10 ° C without the possibility of switching off (the factory anti-freezing temperature is set to 7 °...
  • Page 28 Weekly, wired temperature controller except for the current temperature, time and day of the week. Description of AURATON Tucana To restore the operation of all AURATON Tucana functions, press the buttons First launch of AURATON Tucana again for 5 seconds.

  • Page 29: Configuration Settings

    26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings PWM operating mode Connection diagram of AURATON Tucana MASTER RESET AURATON Tucana Cleaning and maintenance Technical data MASTER RESET restores factory settings. It is performed by pressing the buttons Disposal of the device and RESET ( ) Simultaneously .
  • Page 30 Disposal of the device buttons . Confirm your choice To download by pressing . AURATON Tucana will proceed to change the next parameter. Hysteresis change Weekly, wired temperature controller The hysteresis is to prevent too Description of AURATON Tucana...
  • Page 31 HI P - PWM operating mode (chapter "PWM operating mode"). To download Confirm your choice by pressing . AURATON Tucana will proceed to change the next parameter. Change the delay The delay prevents too frequent activation of the actuating device, e.g. due to temporary drafts (e.g.
  • Page 32 Offset allows for calibrating temperature indications with a tolerance of ± 3 ° C. For example, AURATON Tucana indicates that the room is 23 ° C, and a normal room thermometer next to it indicates 24 ° C. By changing the offset by +1 degree, we will make AURATON Tucana show the same temperatures as the room thermometer.
  • Page 33 First launch of AURATON Tucana Example 2: Introduction to programming After a week of work, AURATON Tucana shows time slackened by 2 minutes (2 x programming 60 = 120). In this case, you should speed up the clock by setting C 120.
  • Page 34 Weekly, wired temperature controller Knowing these values, AURATON Tucana turns on and off the heating device in such Description of AURATON Tucana cycles to keep the temperature as close as possible to the set value.
  • Page 35 Configuration settings NOTE: PWM operating mode In the PWM mode, AURATON Tucana can turn on the heating device despite Connection diagram of AURATON Tucana the fact that the temperature in the room is higher than the set temperature. Cleaning and maintenance...
  • Page 36 Setting the anti-freeze temperature program ATTENTION! Heating device operation time counter When installing AURATON Tucana, the power supply should be turned Temporary switch off of the relay off. It is recommended to entrust the installation of the receiver to a ...

  • Page 37: Cleaning And Maintenance

    26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Configuration settings NOTE: PWM operating mode In the fixed installation of the building there must be a switch and overcurrent Connection diagram of AURATON Tucana protection. Cleaning and maintenance Technical data Disposal of the device...

  • Page 38: Disposal Of The Device

    26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals Operation status signaling: LCD display Number of temperature levels: 3 + vacation Anti-freeze temperature: 0-10 ° C Temperature control range: 5-30 ° C Hysteresis: ± 0.2 ° C / ± 0.4 ° C / PWM Maximum load current: Max.
  • Page 39 26/10/21, 3:38 μ.μ. AURATON Tucana - AURATON manuals informs that this equipment, after its useful life, cannot be placed together with other household waste. The user is obliged to return it to a waste electrical and electronic equipment collection point.
