ORDERING INFORMATION (continued)

SPARE PARTS

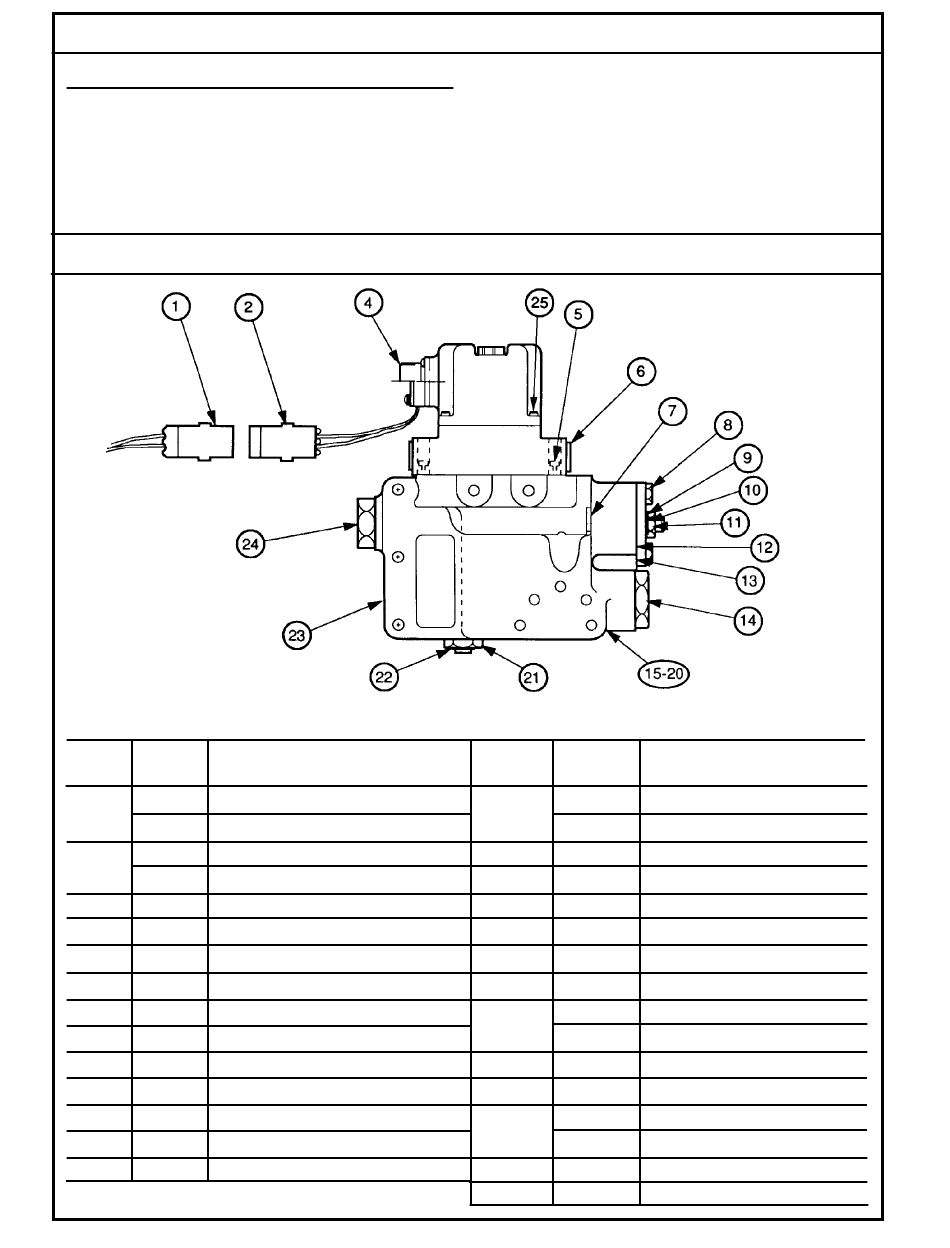

See the Spare Parts diagram for a list of spare parts available
for the MCV109A. Other non-standard spare parts, such as
orifices, may be available upon request.
Order Danfoss Pressure Override Valve through
.
SPARE PARTS
ITEM PART
NUMBER NUMBER DESCRIPTION
1 K03383 Mating Connector 2-Pin (Unassembled)
K03384 Mating Connector 4-Pin (Unassembled)
2 K03377 Device Connector 2-Pin (Unassembled)
K03378 Device Connector 4-Pin (Unassembled)
3 K01314 Device MS Connector
4 K08106 Mating MS Connector (90°)
5 K07055 #10-32 X 5/8 Socket Head Cap Screw
6 K01291 (2) Plugs
7 K07612 Filter Assembly
8 K07034 (2) Screws, Null Adjust Cover
9 K08387 Seal Washer
10 K10911 Seal Washer Retainer
11 K07000 #3/8-32 Nut Null Adjust
12 K08133 Gasket Null Adjust Cover
13 K07158 Null Adjust Cover
BLN-95-8985-1
Order the EDC either factory installed on motors or as an
individual control.
ITEM PART
NUMBER NUMBER
14 K07028
K07011
15 K07163
16 K07164
17 K07128
18 K07136
19 K07006
20 K07182
21 K07160
K07009
22 K02611
23 K04448
24 K07159
K07010
25 K07005
1 2 3 4 5 6 7 8 9 0
1 2 3 4 5 6 7 8 9 0
26
1 2 3 4 5 6 7 8 9 0
CAUTION
2
DESCRIPTION
Plug
O-Ring For Item 14
Spacer - Size 20
Spacer - Size 26
(3) Port Screens
(2) .052 Orifices
(3) O-Ring For Ports
EDC Gasket
Linkage Bushing
O-Ring, Linkage Bushing (1 Each)
Snap Ring
Plug
Plug
O-Ring For Item 15
O-Ring Linkage Shaft
Do Not Remove (4) Cover Screws
