Summary of Contents for Pentair HYDROBOOST

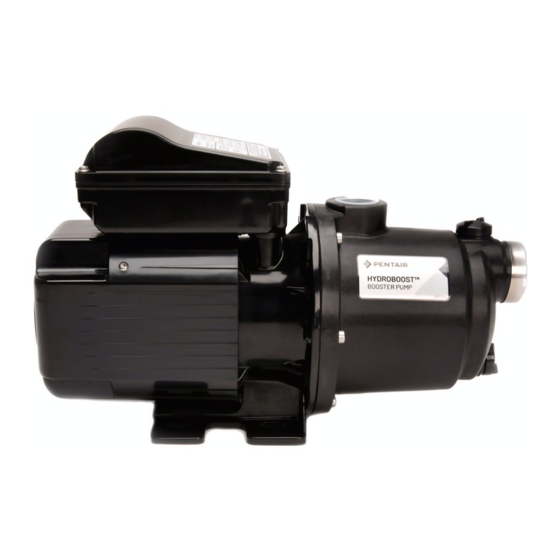

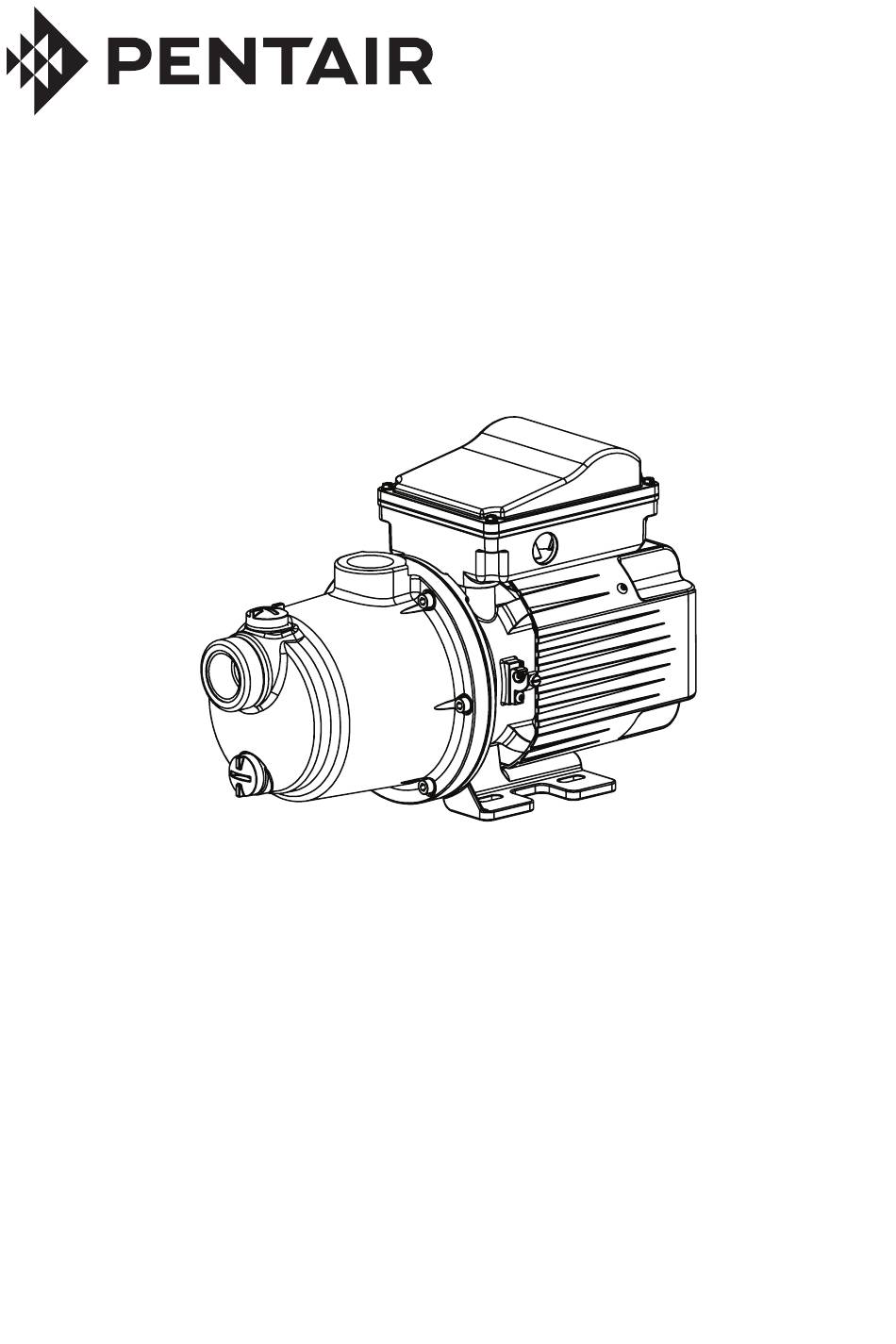

- Page 1 HYDROBOOST™ BOOSTER PUMP INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair replacement parts, and pool products, please contact: Customer Service and Technical Support Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times) -
Page 3: Important Safety Instructions
THE OWNER’S MANUAL BEFORE USING THIS PUMP. pool users or others due to electric shock. THESE WARNINGS AND THE OWNER’S MANUAL MUST BE LEFT WITH THE POOL OWNER. HYDROBOOST™ Booster Pump Installation and User’ s Guide... - Page 4 HYDROBOOST™ Booster Pump Installation and User’ s Guide...
-
Page 5: Introduction
Phases.........Single Phase Inlet/Outlet Thread.......1” NPT Hydraulic Design......5 Stage HydroBoost Booster Pump Pump Dimensions 15.4” (391 mm) 5.4” (137 mm) 1” NPT 1” NPT 8” (203 mm) 9.5” (241 mm) 6.9” (174 mm) HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 6: Installation
Filter Filter Automated Timer Manual Switch Filter Pump Booster Pump To Cleaner From Pool To Pool Typical Installation HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 7: Installation With A Heater
Filter Pump Booster Pump From Pool To Pool Installation with a Heater From Solar Panel To Solar Filter Panel Heater Filter Pump Booster Pump From Pool To Pool Installation with a Solar Heater HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 8: Installing The Pump Hoses
You may need to shape the hose end to round out the opening. Adapter Adapter Cap Adapter Hose Pump Outlet Adapter Cap To Pool From Filter Adapter Pump Inlet Complete Hose Assembly HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 9: Electrical Installation
AWG for lengths longer than 100 ft. (30.5 m). Use the correct conductor size and type specified by the National Electrical Code. Ensure the ground conductor is connected to an electrical service ground. HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 10: Wiring The Pump For 230 Vac
7 in-lbs (0.8 N-m), then torque to 15 in-lbs Note: Do not overtighten. This can strip (1.7 N-m). the screw. Note: Do not overtighten. This can strip the screw. 115V / 230V Switch L1/L L2/N Ground Screw HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 11: Operation
SVRS to shut off both pumps. 5. Ensure the filter is clean and free of debris. A clogged filter reduces the water supply to the booster pump and can cause damage to the pump mechanical seal. HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 12: Maintenance
• Avoid storing pool chemicals near the motor. • Avoid sweeping or stirring up dust near the motor while in operation. • Motors damaged by excessive water or dirt are not covered under warranty. HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 13: Troubleshooting
Improve suction conditions. Increase pipe size. Increase discharge pressure. Remove bends or kinks in flexible hose piping. Move fan guard back into place with hammer Fan guard pushed against fan. and screwdriver. HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 14: Replacement Parts
ZBR43920 MECHANICAL SEAL KIT 357843 FAN SHROUD ZBR12200 O-RING KIT *INCLUDES (2) DRAIN PLUGS AND (2) O-RINGS; HOUSING NOT INCLUDED. *INCLUDES (2) REDUCER BUSHINGS, (4) ADAPTERS AND 6 FT. (1.8 M) HOSE. HYDROBOOST™ Booster Pump Installation and User’ s Guide... -
Page 15: Performance Curves
Performance Curves Volumetric Flow Rate in GPM HYDROBOOST™ Booster Pump Installation and User’ s Guide... - Page 16 10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000 WWW.PENTAIR.COM All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
