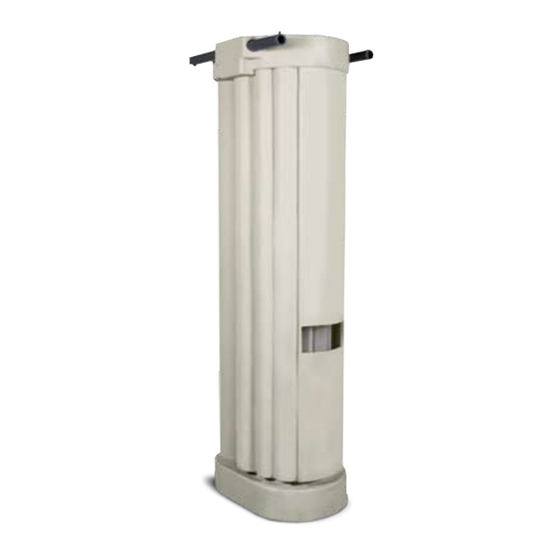

SEPTIC TANK
PUMP VAULT
FILTER SYSTEM
PUMP VAULT

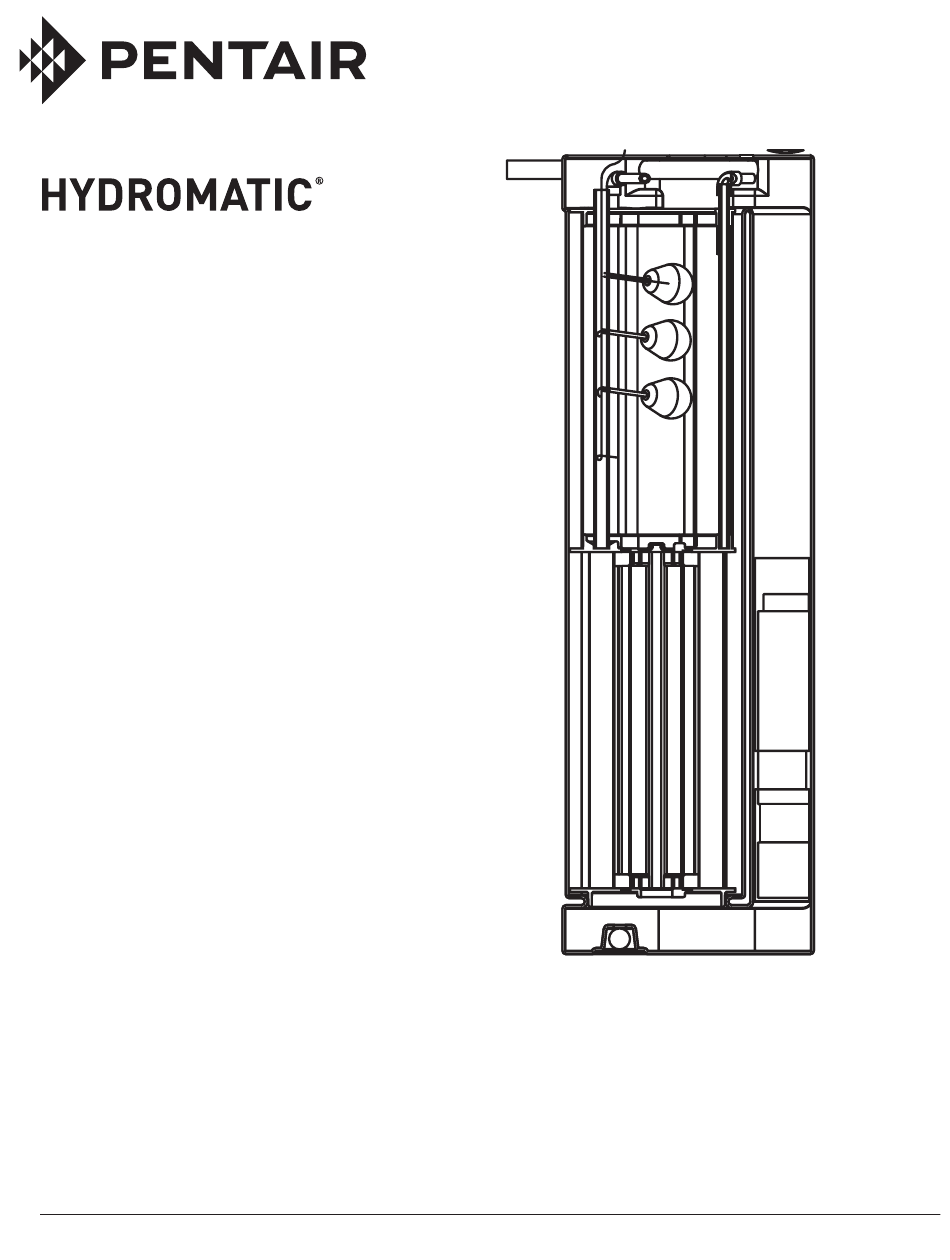

INSTALLATION AND SERVICE MANUAL
NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible
party who maintains the system.
Item # E-03-637 | Part # 23833A637 | © 2012 Pentair Pump Group, Inc. | 11/05/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYDROMATIC PUMP VAULT and is the answer not in the manual?

Questions and answers

Related Manuals for Pentair HYDROMATIC PUMP VAULT

Summary of Contents for Pentair HYDROMATIC PUMP VAULT

  • Page 1 NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Item # E-03-637 | Part # 23833A637 | © 2012 Pentair Pump Group, Inc. | 11/05/12...

  • Page 2: California Proposition

    Thank you for purchasing your a septic (gaseous) or possible a high-head effluent STEP pump to Hydromatic pump vault system. septic sump. the next stage of processing. ® DO NOT THROW AWAY THIS • D o n ot i nstall p ump i n l ocations Receiving the System MANUAL.
  • Page 3 Step 4 prior to installation. Only qualified cut a hole in the riser at the marked location. Insert the flexible grommet personnel may install this system. Insert the preassembled 40" PVC NFPA 70/National Electric Code (provided with the discharge kit) into pipe with pipe adapter (Figure 1, the drilled hole.

  • Page 4: Typical Installation

    Junction Box Connections (when Step 4 Installation used) Push pump power and float cords Instructions, cont. Step 1 through cord grips in the junction box and tighten the cord grips. To Ensure power source is off or prevent corrosion or electrical short, disconnected.

  • Page 5: Start-Up And Operation

    Electrical Connections Step 1 properly grounded according to NEC or local codes. Note: Failure to use a manufacturer Run clean water into the septic tank approved alarm or control panel voids or pump chamber. WARNING: Before installing the pump warranty and guarantee. or servicing your pump, BE Step 2 CERTAIN THAT THE PUMP...

  • Page 6: System Maintenance

    Step 5 will short-cycle On and Off and housing and filter. This requires the will not pump the level down. filter to be cleaned off. The service Remove any debris from the vault interval will depend upon usage 3. Floats are malfunctioning. Pull housing and inspect the housing for patterns.

  • Page 7: Parts List

    Parts List Description 49" 57" Housing 27623D003 27623D004 Filter Assembly 27628D001 27624D002 Float Tree w/ Floats 27628D001 27628D002*** Discharge Kit* 27418A805 27418A805*** HE20-51 Pump** 526100271 526100271*** *Discharge kit includes union, ball valve, pipe, and pump/pipe adapter. **Consult factory for available pump sizes *** Available in Duplex configuration, consult factory for details.

  • Page 8: Standard Limited Warranty

    STANDARD LIMITED WARRANTY HYDROMATIC ® warrants its products against defects in material and workmanship for a period of 12 months from the date of shipment from Hydromatic or 18 months from the manufacturing date, whichever occurs first - provided that such products are used compliance with the requirements of the Hydromatic catalog and technical manuals for use in pumping raw sewage, municipal wastewater or similar, abrasive free non-corrosive liquids.
