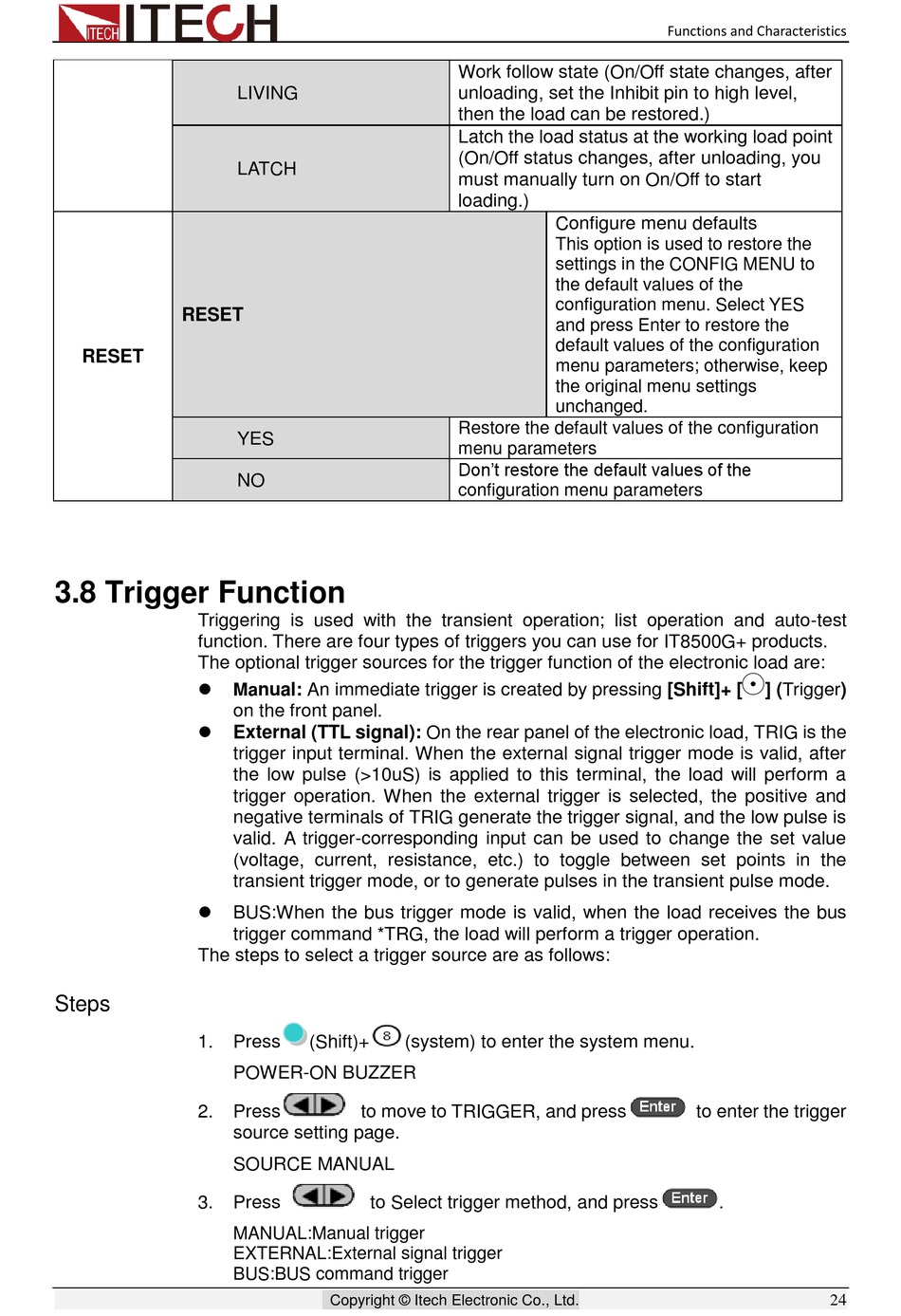

3.8 Trigger Function

Triggering is used with the transient operation; list operation and auto-test
function. There are four types of triggers you can use for IT8500G+ products.
The optional trigger sources for the trigger function of the electronic load are:
⚫
⚫
⚫
The steps to select a trigger source are as follows:
Steps
1.
2.
3.
LIVING
LATCH
YES
NO
Ma nual: An immediate trigger is created by pressing [Shift]+ [
on the front panel.
External (TTL signal): On the rear panel of the electronic load, TRIG is the
trigger input terminal. When the external signal trigger mode is valid, after
the low pulse (>10uS) is applied to this terminal, the load will perform a
trigger operation. When the external trigger is selected, the positive and
negative terminals of TRIG generate the trigger signal, and the low pulse is
valid. A trigger-corresponding input can be used to change the set value
(voltage, current, resistance, etc.) to toggle between set points in the
transient trigger mode, or to generate pulses in the transient pulse mode.
BUS:When the bus trigger mode is valid, when the load receives the bus
trigger command *TRG, the load will perform a trigger operation.
Press (Shift)+
POWER-ON BUZZER
Press to move to TRIGGER, and press
source setting page.
SOURCE MANUAL
Press to Select trigger method, and press
MANUAL:Manual trigger
EXTERNAL:External signal trigger
BUS:BUS command trigger
