Avocent KVM over IP switch User Manual page 34

If a user has the appropriate permission, he can force the Remote Consoles of all other
users to close. No one can open the Remote Console at the same time again until this
user disables the exclusive access, or logs off.
A change in the access mode is also visible in the status line (see Figure 5-8).
• Scaling
Allow you to scale down the Remote Console. You can still use both mouse and
keyboard, however the scaling algorithm will not preserve all display details.
• Mouse Handling
The submenu for mouse handling offers two options for synchronizing the local and the
remote mouse pointer.
Fast Sync --
The fast synchronization is used to correct a temporary, but fixed skew.
Intelligent Sync --
Use this option if the fast sync does not work or the mouse settings have been
changed on the host system.
Figure 5-8. Remote Console Exclusive Mode

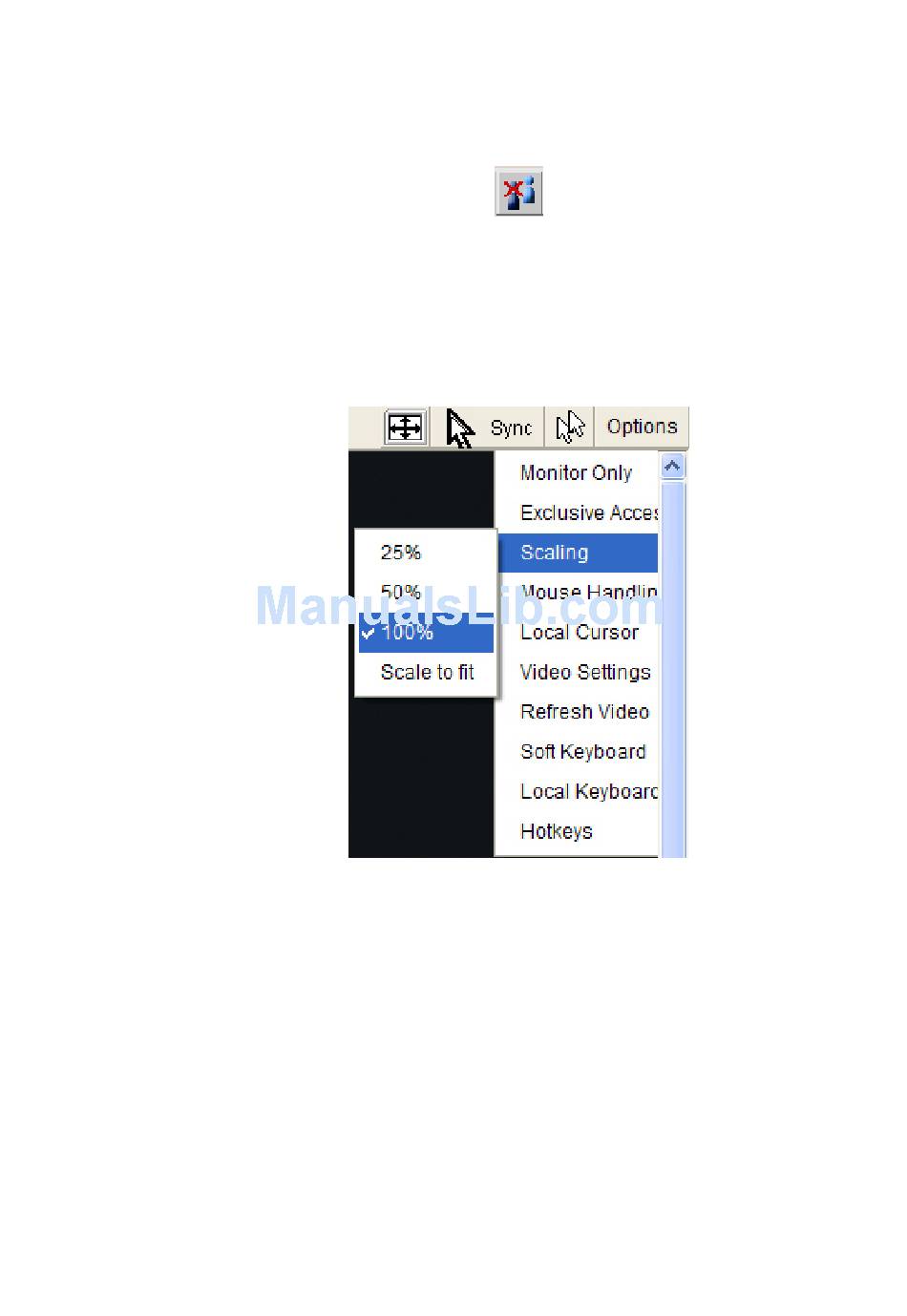

Figure 5-9. Remote Console Options Menu:Scaling
31
8/16 PS/2 KVM over IP switch
