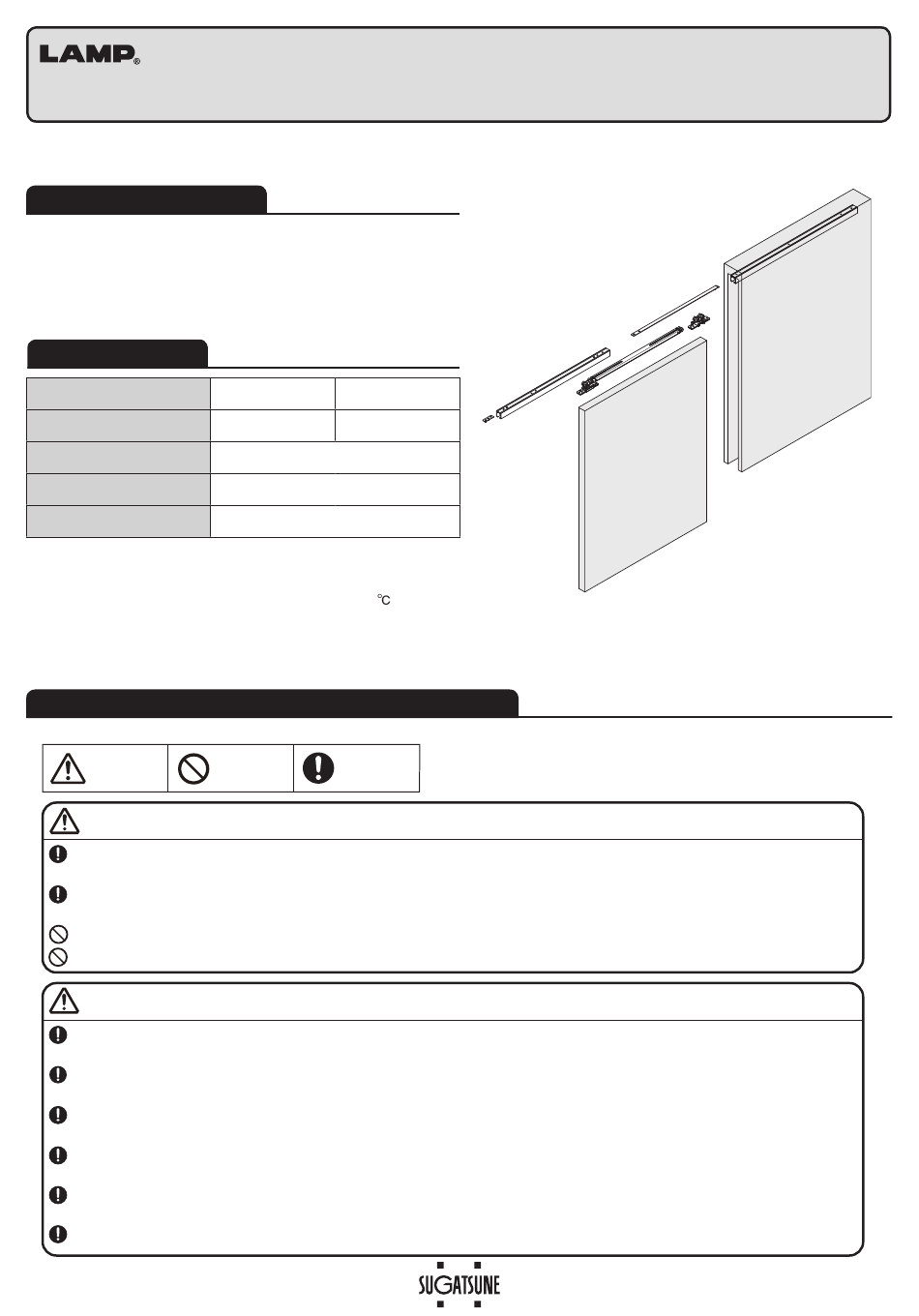

FD50-H SLIDING DOOR SYSTEM Installation Manual
(Surface mount roller Type for Pocket Door, with Two-way Soft Close)
Thank you for using our product. Before installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
T his is a parts set for sliding door system for residential &
●
commercial use.
● Built in soft closer enables two-way soft closing movement
in both direction.
Two sections of track for easy maintenance after installing.
●
SPECIFICATIONS
Door height
Door width
Min. Door thickness
Max. Door weight
Vertical adjustment
・    T he closing speed of the soft closing type door may change
depending on the ambient temperature, operating method or
installation quality.
・    R ecommended ambient temperature range is 5 to 40
1
 When using a light weight door, you may feel the resistance of the
※
soft closer when opening the door.
FOR YOUR SAFETY AND CORRECT INSTALLATION
Meaning of symbols
Warning
Caution
Warning :
If not followed, death or serious injury may result.
This product should be installed by a qualified person in accordance with this manual. If it is not installed correctly, the door
may fall and cause injury.
Provide a frame that can withstand the weight and impact of opening and closing the door. Be sure to use the specified
screws and tighten them securely. If the mounting strength is insufficient, the door may fall and cause injury.
Do not use this product for any other purpose, or with doors that are outside the specifications of this manual.
Do not disassemble or modify any parts other than those described in this document.
Caution :
If not followed, injury or damage may result.
Follow the specified dimensions, specifications, and alignment of the door and frame. Warping, tilting or twisting of the
frame or door may cause failure.
If cutting any parts, make sure to remove any burrs before installation. Also check the upper track for any left-over burrs or
scraps and remove these.
This product is a part for architectural fittings. After installation, please check the function and safety of the final product.
Please inform the end user how to use the product safely.
Make sure to check the screws for slack at regular intervals (one month from first usage, half a year, and then one time
every year is recommended).
When installing the "pocket door", make an "easy-maintenance" structure.
For example, use a removable panel.
Install the product with two people (in the case of one person, there is a risk of damaging components).
Max. 2400 mm
2401 - 2700 mm
774 - 1500 mm
800 - 1500 mm
30 mm
1
50
kg/door
※
3 mm upward, 4 mm downward
Prohibited
Required
Part No.FD50DHCMP-PD
Door pocket
Door
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAMP FD50-H and is the answer not in the manual?

Questions and answers

Related Manuals for SUGATSUNE LAMP FD50-H

Summary of Contents for SUGATSUNE LAMP FD50-H

  • Page 1 FD50-H SLIDING DOOR SYSTEM Installation Manual (Surface mount roller Type for Pocket Door, with Two-way Soft Close) Part No.FD50DHCMP-PD Thank you for using our product. Before installation, please read this manual thoroughly to ensure correct installation. Please keep this manual at hand for future reference. ABOUT THE PRODUCT T his is a parts set for sliding door system for residential &...

  • Page 2: Component Parts

    COMPONENT PARTS ① ② ③ ④ ⑤ ⑥ ⑦ Soft closer Door pocket Door guide Name Open area track Front trigger Pocket trigger Upper roller Floor guide track track (two-way) Order code 250-022-902 250-029-707 250-029-738 250-022-901 250-029-718 250-019-971 Part No. FD50-TRP FD50-WRM-DSC FD50-TRGPF FD50-TRGPB-MB FD50-WRM...

  • Page 3: Tools Required For Installation

    TOOLS REQUIRED FOR INSTALLATION ・Philips head driver #2 ・Drill bit for metal:  5 ・Machine or tool for ・Drill bit for metal cutting aluminum alloy (for 9.6 countersunk hole) ・Spanner (Nominal designation 10 mm, max. 6 mm thickness) INSTALLATION PROCEDURE Cutting and Drilling on Upper Track  Caution  Caution When cutting, reinforce the...

  • Page 4: Installing Bracket

    Installing Bracket Installation of Door Guide Track 1  Cut the track to the same length as the door width. Disassemble Fastening Caution   Pay attention to setting the direction of the bracket. The open part of the bracket should face in the outside direction. When cutting, reinforce the track to prevent deformation Upper roller...
  • Page 5 Mounting of Open Area Track. 【1】 Connecting to door pocket track Align the track end to the end of the Caution   door pocket track. Overlap the two countersunk holes on the pocket trigger and the two holes on Pull out the pocket trigger from the the open area track.
  • Page 6 Mounting of Floor Guide Temporarily Position the floor guide below the center of the upper track, so that it Caution   Temporarily fasten through the is covered by the door when it is slotted holes with the provided The position of the model where opened and closed.
  • Page 7 Adjustment of Door Height Adjust the door so that it is parallel to the upper track with 6-14 mm of clearance Pull out the holder between the door and floor. Caution Upper roller   Vertical adjustment Holder Do not turn adjustment screw beyond range: 8 mm the adjustment range.
  • Page 8 Appendix 1 How to Remove Door, Track ②Hanger bolt 【1】 How to remove door (Leading edge) Put a 10 mm support under the door. Remove holder Pull out the hanger bolt at leading edge from the bracket. Pull out the door, while making sure not to let it scratch  ⑤Hanger bolt against the door pocket.
  • Page 9 Appendix 2 How to Shift the Connecting Position of the Tracks 【1】 When determining the trigger position on site Put a mark on the open area track with reference to the leading edge (1) Put a mark on the open area track with reference to the of the door.

  • Page 10: Troubleshooting

    SUGATSUNE AMERICA, INC          Tokyo, JAPAN Shanghai, CHINA California, USA Phone: +81 (0)3 3866 2260 E-mail:export@sugatsune.co.jp Phone: +86 21 3632 1858  E-mail:lamp@sugatsune.com.cn Phone: +1 310 329 6373 E-mail:sales@sugatsune.com SUGATSUNE KOGYO (UK) LTD Guangzhou, CHINA Chicago, USA          Reading, UK Phone: +86 20 6639 3552  E-mail:lamp@sugatsune.com.cn...
