SUGATSUNE ALT-ST20-D360 Installation Manual

Installation Manual
ALT-ST20-D360

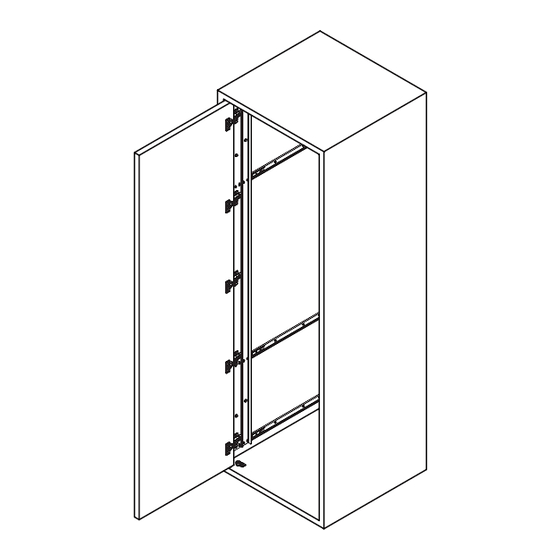

POCKET DOOR SYSTEM (INSET) SOFT CLOSING
・ Before installation, please read!
・ For the most accuracy, please use metric
measurements as they were converted to imperial mea-
surements for reference.
・ The illustration is illustrated at the left hanging source.

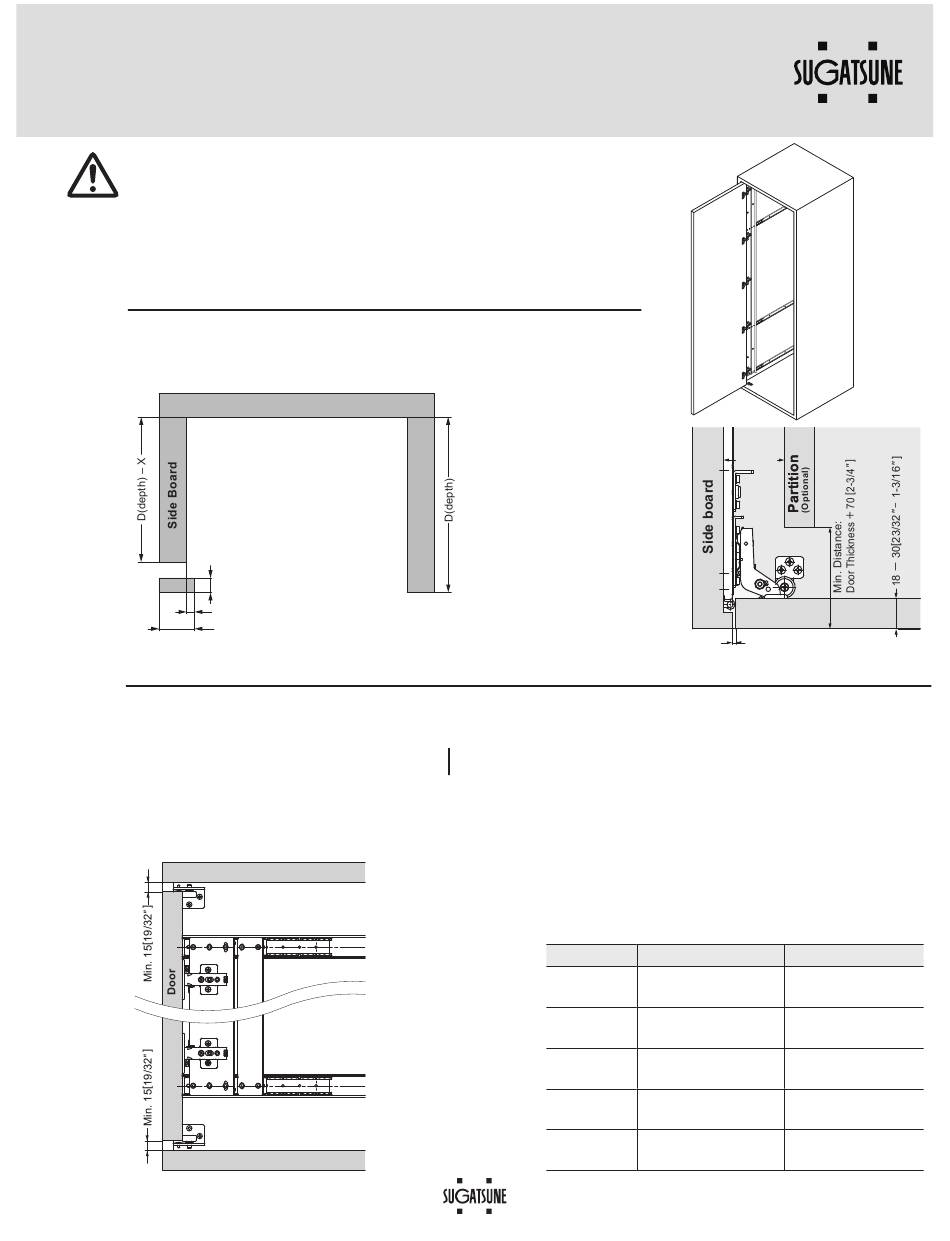

Prepare the front frame of the cabinet
On the hinge side of the cabinet, add a front stile to minimize the visibility of the hardware
and to provide a clean, symmetrical reveal.
The dimensions of the left and right side boards are different.
Prepare the door
・Door Width = Cabinet Opening Width – 15[9/16" ］
where 15 mm[19/32" ］ = 9[11/32" ］ +
・Door Height = Cabinet Opening Height – 10[13/32" ］ 10[13/32" ］ =5[3/16" ］ +
NOTE: If Optional Side Mounting Bracket is used;
Door Height = Cabinet Opening Height - 15[19/32" ］ ×2
Top board
Bottom board
1 1
www.sugatsune.ca
X＝Max. Door Thickness ‒ 14 [9/16" ]
9[11/32" ]
Thickness of Side Board ＋ 9[11/32" ]
3[1/8" ］ +
Stile Width Left Gap
3[1/8" ］
Right Gap
5[3/16" ］
Top Gap Bottom Gap
Rail Size
16
19
22
24
28
60
[ 2-3/8" ]
Door
Gap: 3 [ 1/8" ]
Door Storing Cabinet Depth
269 ［10-19/32" ］ 412 ［16-7/32" ］
+ Door Thickness + Door Thickness
345 ［13-19/32" ］ 488 ［19-7/32" ］
+ Door Thickness + Door Thickness
421 ［16-9/16" ］ 564 ［22-7/32" ］
+ Door Thickness + Door Thickness
472 ［18-19/32" ］ 615 ［24-7/32" ］
+ Door Thickness + Door Thickness
574 ［22-19/32" ］ 717 ［28-7/32" ］
+ Door Thickness + Door Thickness
