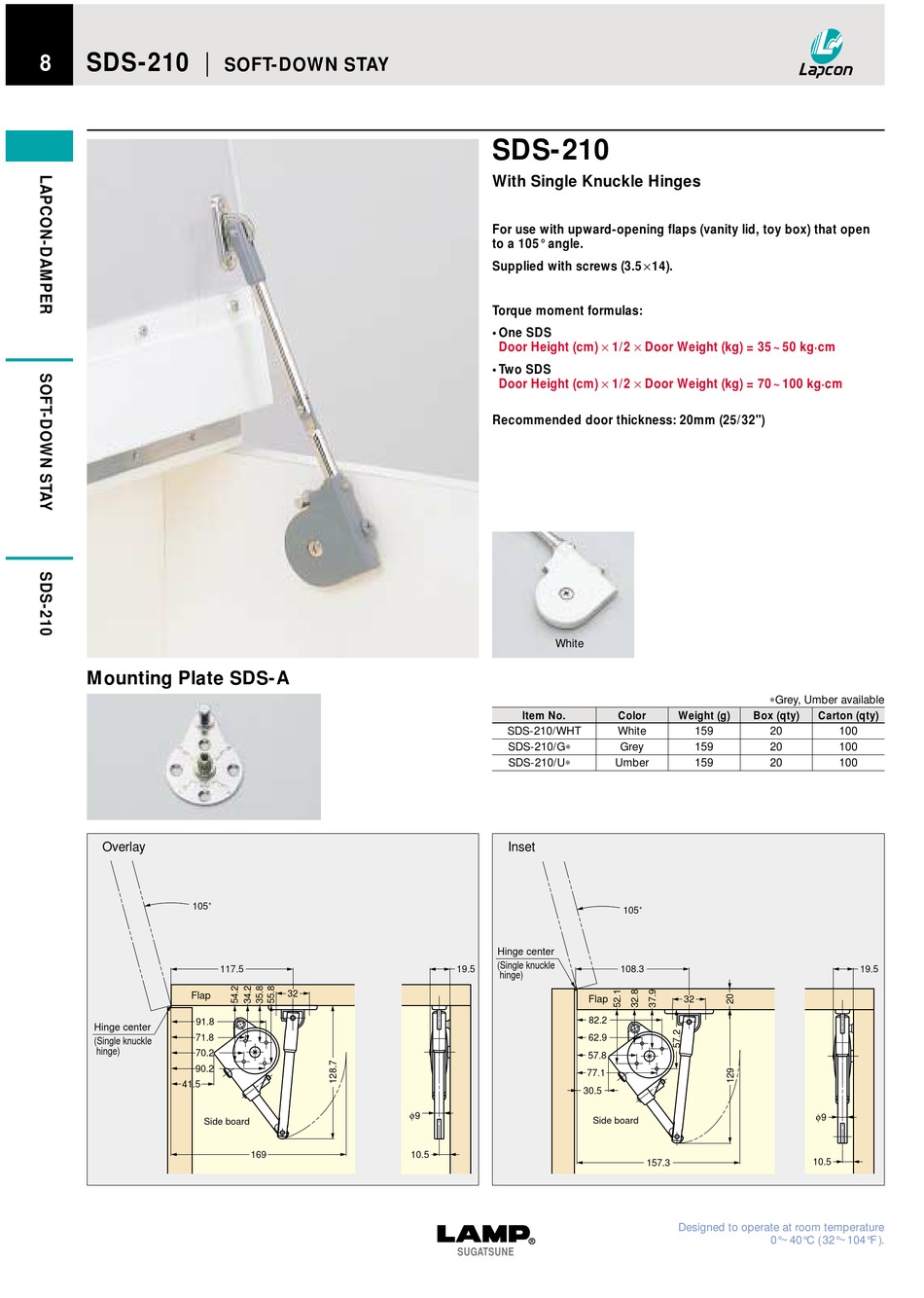

SDS-210 |
8
Mounting Plate SDS-A
Overlay
105
˚
Flap
91.8
Hinge center
71.8
(Single knuckle
hinge)
70.2
90.2
41.5
Side board
SOFT-DOWN STAY
117.5
32
169

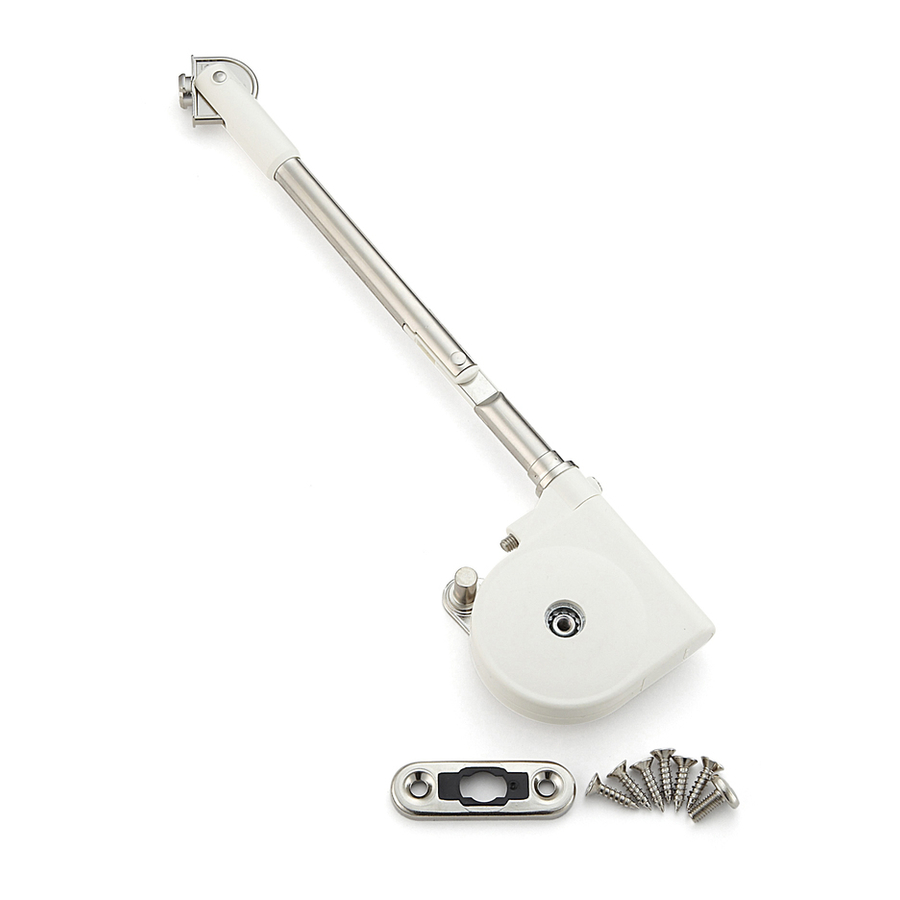

SDS-210
With Single Knuckle Hinges
For use with upward-opening flaps (vanity lid, toy box) that open
to a 105° angle.
Supplied with screws (3.5 ×14).
Torque moment formulas:
•One SDS
Door Height (cm) × 1/2 × Door Weight (kg) = 35 ~ 50 kg·cm
•Two SDS
Door Height (cm) × 1/2 × Door Weight (kg) = 70 ~ 100 kg·cm
Recommended door thickness: 20mm (25/32")
White
Item No.
SDS-210/WHT
SDS-210/G∗
SDS-210/U∗
Inset
Hinge center
(Single knuckle
19.5
hinge)
30.5
φ9
10.5
SUGATSUNE
Color
Weight (g)
Box (qty)
White
159
Grey
159
Umber
159
105
˚
108.3
Flap
32
82.2
62.9
57.8
77.1
Side board
157.3
Designed to operate at room temperature
∗Grey, Umber available
Carton (qty)
20
100
20
100
20
100
19.5
φ9
10.5
0°~ 40°C ( 32°~ 104°F ).
Advertisement
Related Manuals for SUGATSUNE LAMP Lapcon SDS-210
Summary of Contents for SUGATSUNE LAMP Lapcon SDS-210
- Page 1 Flap Flap 82.2 91.8 Hinge center 71.8 62.9 (Single knuckle hinge) 70.2 57.8 90.2 77.1 41.5 30.5 φ9 φ9 Side board Side board 10.5 10.5 157.3 Designed to operate at room temperature 0°~ 40°C ( 32°~ 104°F ). SUGATSUNE...
- Page 2 Overlay Single Knuckle(Piano, Butt, etc) Hinge Fig. 2 SDS-210 Installation 13/32” + Overlay Door Side Edge (10.5mm + Overlay) For Top Opening Door Side Board Page 1 of 2 Before installation, please check the Door Weight Range Table on page 2 Door to determine if the SDS-210 is the correct stay for the size and weight door.
-
Page 3: Step 2 - Install The Main Body
• Do not attempt to disassemble or modify the lid stay as serious damage and/or injury may occur. • For extreme environments(high temperature, humidity, etc.), please contact Sugatsune for technical assistance before installation. • The product has been develop for use as a lid stay - other applications are not recommended.
