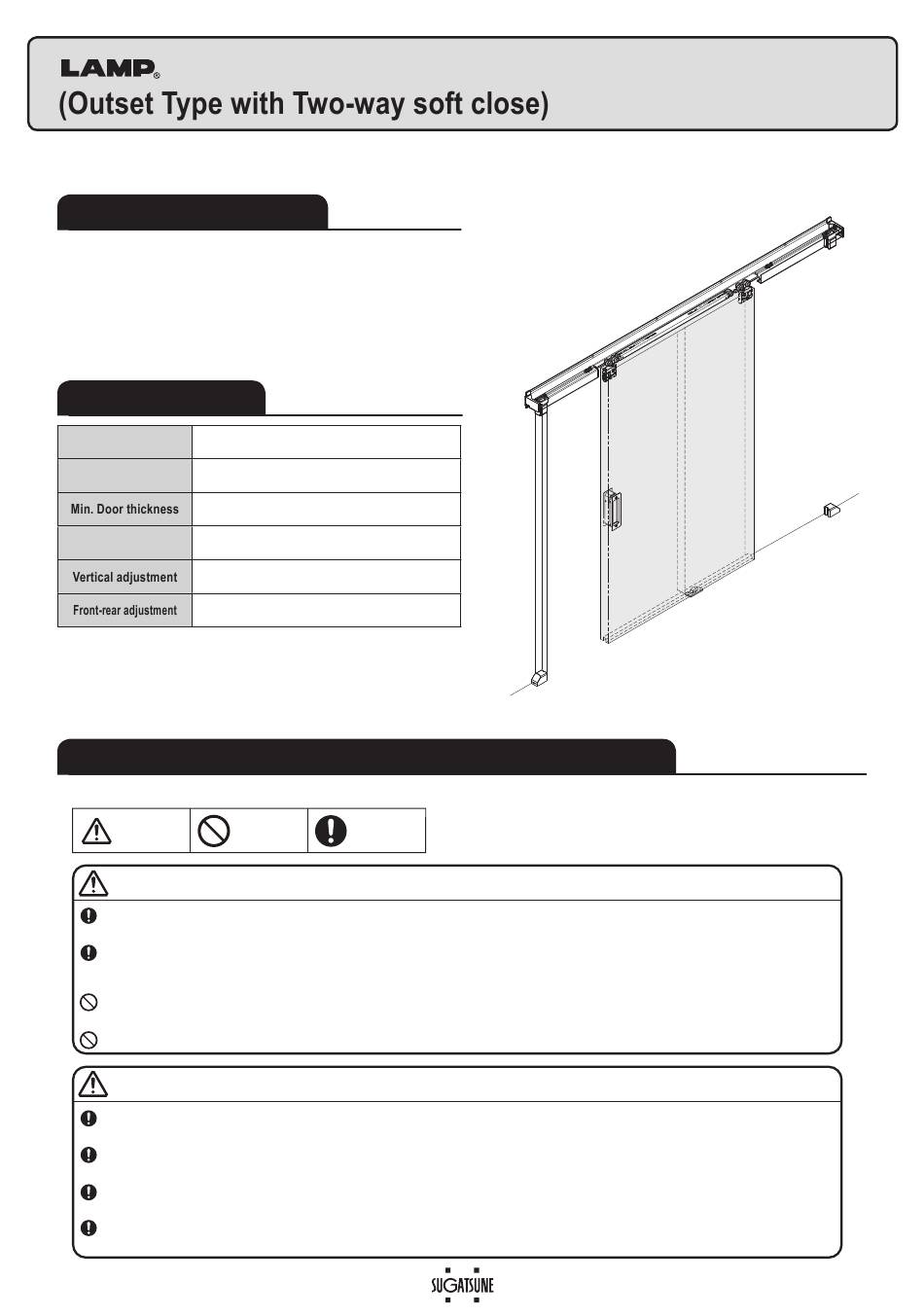

SUGATSUNE LAMP FD50H Installation Manual

FD50H SLIDING DOOR SYSTEM Installation Manual
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
This product is a parts set for an overlay indoor sliding door
●
system.
T he door closes in a 2 soft motion steps; first slow, then
●
fast, and opens with a 1 step soft motion.
Easy door installation and adjustment.
●
SPECIFICATIONS
Max. Door height
Max. Door width
Max. Door weight
3mm upward, 4 mm downward
The closing speed of the soft closing type door may change due to
ambient temperature, operating method or installation quality.
・ Recommended ambient temperature range is 5 to 40°C.
1
If a light weight door is applied, you may feel the resistance
※
of the soft closer when opening the door.
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
Meaning of symbols
Warning
Caution
WARNING: If not followed, death or serious injury may result.
This (sliding door system) should be installed by a qualified person. If the system is not installed correctly, the door will not
operate smoothly, and may cause injury.
It is necessary to manufacture the frame with sufficient strength so that it endures the weight of the door and any impact
upon opening/closing the door. Only use designated screws and ensure that they are fastened firmly. A frame with poor
strength or loose screws might result in the door falling and causing injury.
Do not try to use this product for anything other than its original purpose. Do not use any part for applications outside of its
specification.
Do not disassemble nor modify any parts other than those described in this document.
Caution: If not followed injury or damage may result.
Make sure to follow the designated dimensions, specifications, and horizontal/vertical angles. Make sure that the frame is
not warped, since it may affect the movement of the door.
If cutting any parts, make sure to remove any burrs before installation. Also check the upper track for any left-over burrs or
scraps and remove these.
This product is a part for architectural fittings. After installation, make sure to test the finished product thoroughly to ensure
that it is well-functioning and safe. Please inform the end user about general precautions and safety to prevent improper use.
Make sure to check the screws for slack at regular intervals (one month from first usage, half a year, and then one time
every year is recommended).
2400 mm
680 − 1500 mm
30 − 36 mm
1
50 kg ※
± 2 mm
Prohibited Required
Part No： FD50DHCP-AK
