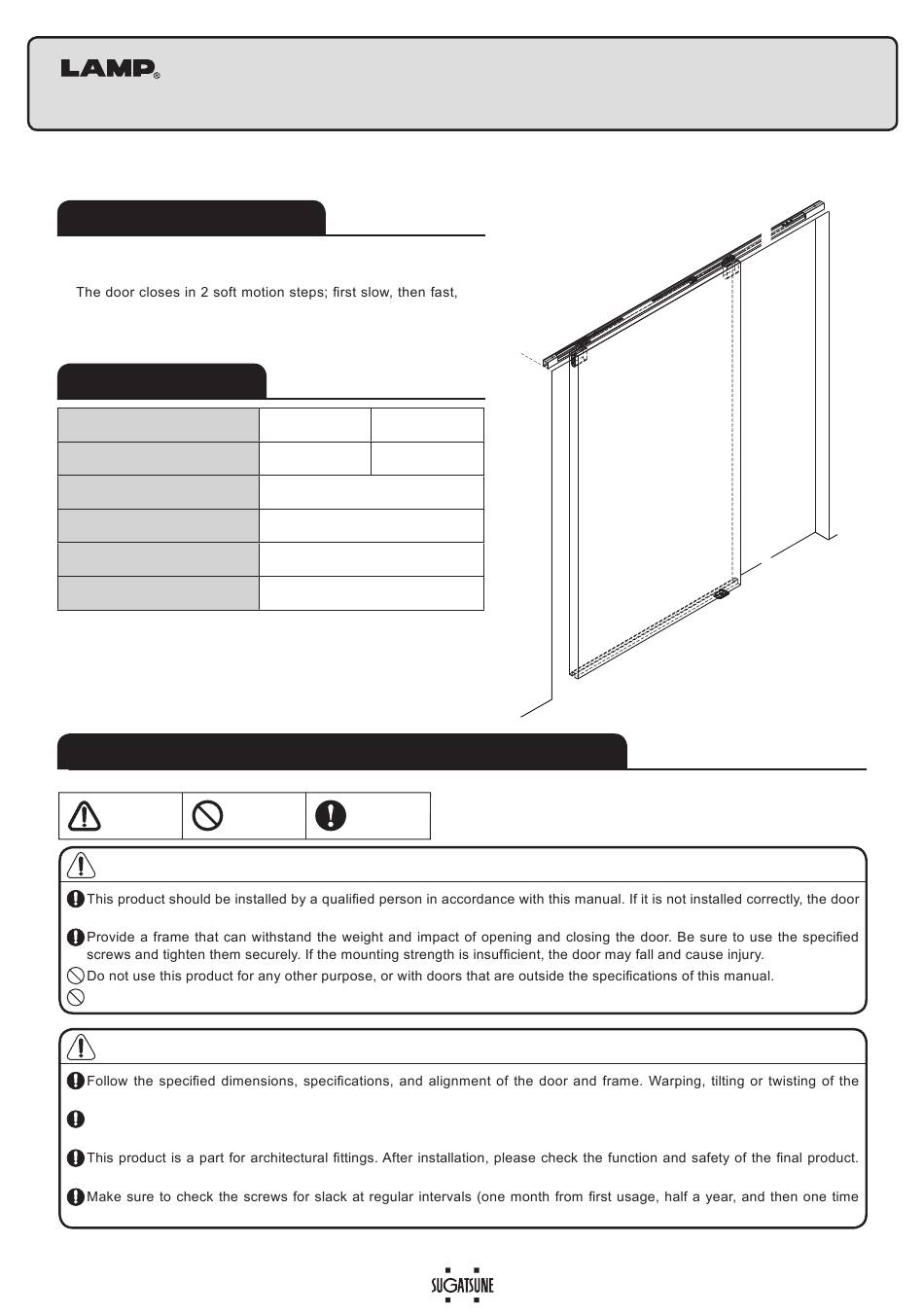

FD35EV SLIDING DOOR SYSTEM Installation Manual
Recessed Mount Roller, Two-Way Soft Close
Thank you for using our product. Before installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
This is a parts set for a sliding door system for residential &
●
commercial use.
●
and opens with 1 step soft motion.
The door can be installed without the use of tools.
●
SPECIFICATIONS
Door Height
Door width
Min. Door thickness
Max. Door weight
Vertical adjustment
Depth adjustment
・ The closing speed of the soft closing type door may change depending on
the ambient temperature, operating method or installation quality.
・Recommended ambient temperature range is 5 to 40 ℃ .
When using a light weight door, you may feel the resistance of
1
※
the soft closer when opening the door.
FOR YOUR SAFETY AND CORRECT INSTALLATION
Meaning of symbols
Warning
Prohibited
Caution
WARNING:
If not followed, death or serious injury may result.
may fall and cause injury.
Do not disassemble or modify any parts other than those described in this document.
Caution:
If not followed injury or damage may result.
frame or door may cause failure.
If cutting any parts, make sure to remove any burrs before installation. Also check the upper track for any left-over burrs or
scraps and remove these.
Please inform the end user how to use the product safely.
every year is recommended).
Max.2400 mm
2401 - 2700 mm
590 - 1200 mm
700 - 1200 mm
24 mm
35 kg ※
1
/ door
3 mm upward, 4 mm downward
±2 mm
Required
Part No.FD35EVDHCP
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SUGATSUNE LAMP FD35EV
Summary of Contents for SUGATSUNE LAMP FD35EV
- Page 1 FD35EV SLIDING DOOR SYSTEM Installation Manual Recessed Mount Roller, Two-Way Soft Close Part No.FD35EVDHCP Thank you for using our product. Before installation, please read this manual thoroughly to ensure correct installation. Please keep this manual at hand for future reference. ABOUT THE PRODUCT This is a parts set for a sliding door system for residential &...
-
Page 2: Component Parts
COMPONENT PARTS This describes installation of a single sliding door. ① ② ③ ④ ⑤ Upper track Upper track Upper track for Upper track for Soft closer Name for soft-closing for soft-closing standard sliding standard sliding Trigger, Jig Upper roller (two-way) (surface mount) (recessed mount) - Page 3 CAUTION If the trigger position is wrong, pull back the trigger catcher to the correct position using a 6mm diameter round bar. Trigger catcher (Red colored part) Correct set position Correct set position Trigger catcher (Red colored part) Improper set position ４...
- Page 4 Fastening of Trigger Fasten trigger to the hole made during procedure with provided screws. The jig makes it easy to install the trigger. Assemble trigger to jig. Align trigger with Turn the jig 90ﾟ Remove the jig. ❶ ❷ ❸ ❹...
- Page 5 Adjusting the Door Position CAUTION Do not turn the adjustment screw beyond Do not turn adjustment screw beyond adjustment range. adjustment range. Do not use electric screw driver. Jump prevention nut Vertical adjustment range: 7 mm Depth adjustment range: 4 mm 3 mm 右...
- Page 6 APPENDIX 1 How to remove door Use a 10 mm support under the door. Then pull out the upper roller main unit from the door while raising the lever. It will be easier if you slide the hanger bolt with a spanner. CAUTION Be careful not to let the door fall.
-
Page 7: Periodical Inspection
APPENDIX 4 Trigger positions Reference line for leading edge. Reference line for trailing edge. Door width - 361 (Leading edge when the door is stopped.) (Trailing edge when the door is opened.) [Door width - 363]※ 361 [363]※ 187.5 Standard installation Crimped trigger Upper track installed inside door jamb Available opening width... - Page 8 SUGATSUNE AMERICA, INC Tokyo, JAPAN Shanghai, CHINA California, USA Phone: +81 (0)3 3866 2260 E-mail:export@sugatsune.co.jp Phone: +86 21 3632 1858 E-mail:lamp@sugatsune.com.cn Phone: +1 310 329 6373 E-mail:sales@sugatsune.com SUGATSUNE KOGYO (UK) LTD Guangzhou, CHINA Chicago, USA Reading, UK Phone: +86 20 6639 3552 E-mail:lamp@sugatsune.com.cn...
