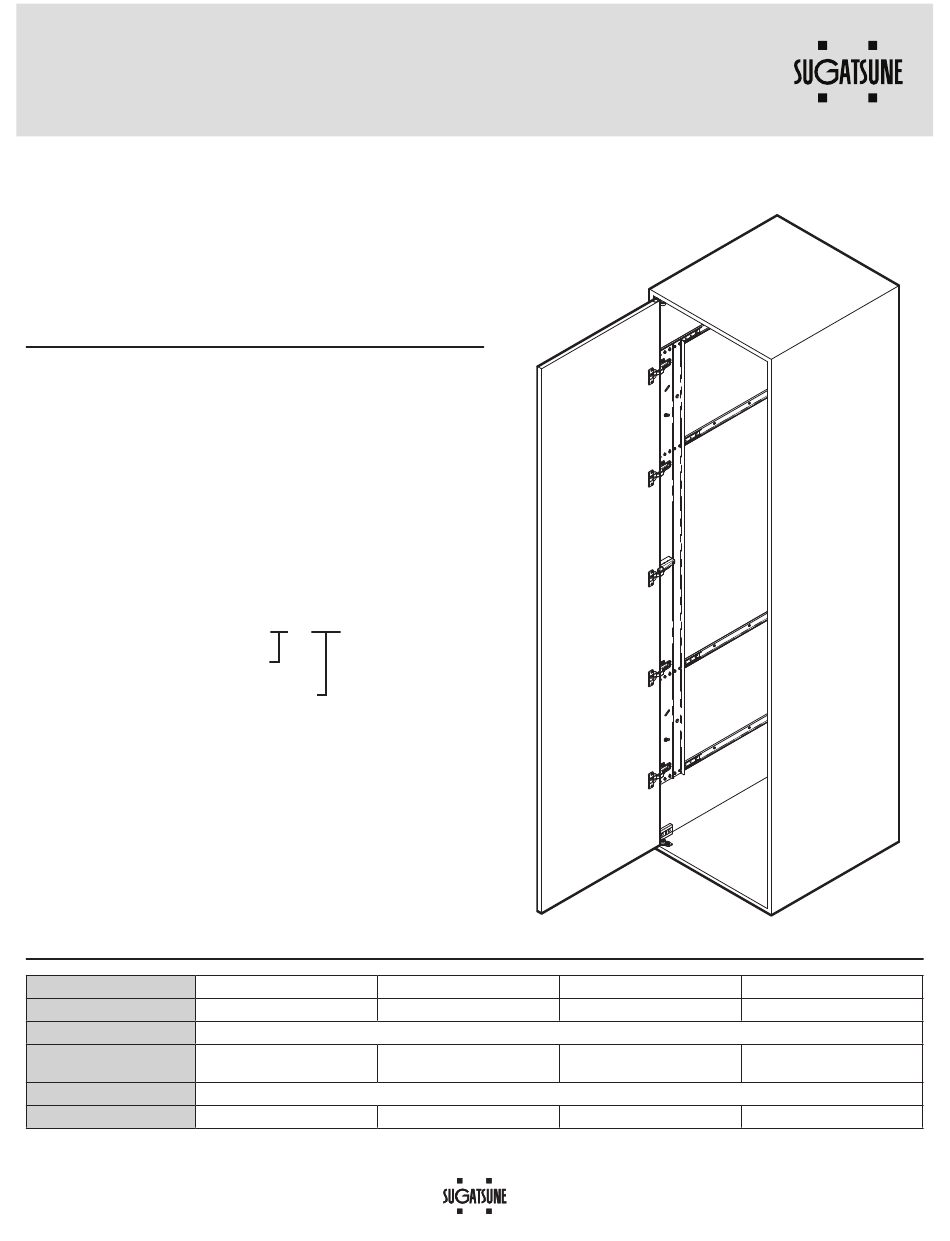

Installation Manual
ALT-ST20-D10
POCKET DOOR SYSTEM (OVERLAY) SOFT CLOSING
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
●
This product is hardware for vertical pocket doors in furniture,
enabling slow door closing.
●
The door is stored inside the cabinet.
●
The door incline can be easily adjusted via a 5-stage angle
retention mechanism.
Item Name Guide
ALT - ST20 - D10S - 16
SPECIFICATION
Type
Rail Q'ty
Door Width
Door Height
Door Thickness
Door Weight
1
www.sugatsune.com
www.sugatsune.com
Type
Size of rail
S
2
800 - 1200
［31-1/2" - 47-1/4"］
Max. 9 kg [19.8 lbs]
M
3
Max.600[24"]
1200 - 1600
［47-1/4" - 63"］
18 - 20 ［ 11/16" - 13/16"］
Max. 15 kg [33 lbs]
L
4
1600 - 2000
［63" - 78-3/4"］
［78-3/4" - 94-1/2"］
Max. 20 kg ［ 44 lbs］
(800) 562-5267
(800) 562-5267
LL
4
2000 - 2400
Max. 20 kg ［ 44 lbs］
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SUGATSUNE ALT-ST20-D10
Summary of Contents for SUGATSUNE ALT-ST20-D10
- Page 1 Installation Manual ALT-ST20-D10 POCKET DOOR SYSTEM (OVERLAY) SOFT CLOSING Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation. Please keep this manual at hand for future reference. ABOUT THE PRODUCT ●...
- Page 2 Raised countersunk head screw M4×10 This catch holds the door at the pulled-out position. Be sure to mount it on the uppermost and lower slide rails Raised countersunk head screw M4×14 (For details, see P.4 Hex key www.sugatsune.com (800) 562-5267...
- Page 3 10.5[13/32" ] Side mount bracket Item Name Type (Optional) ALT-2V5BR1 Lower right + upper left Note: Slider should always be installed ALT-2V5BR2 Upper right + lower left towards front of the cabinet. Bottom board www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
- Page 4 ⑯ Bind head tapping screw 3.5×15 Caution Positioned to not interfere with slides. ❷ Mount the protector at the top and bottom Temporarily fix front and back edges of the cabinet. sides for all other slides. ⑨ ⑧ www.sugatsune.com (800) 562-5267...
- Page 5 Center of Cabinet Rail Placement Rail Placement L Type LL Type (4 slide rails) (4 slide rails) 14 ［ 9/16" ］ Cabinet Opening 14 ［ 9/16" ］ Cabinet Opening Center of Cabinet Center of Cabinet www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
- Page 6 Tighten the part (both ends) Move the connecting plate from the front to the back, adjusting Fasten all the parts (near center) all the screw positions so that Screws: Bind head tapping screw 3.5×15 it moves smoothly www.sugatsune.com (800) 562-5267...
- Page 7 Hinge Placement (5 Hinges) LL Type 34 ［ 1-11/32" ］ 34 ［ 1-11/32" ］ φ40 ［ 1-9/16" ] Depth:13[1/2" ] φ40 ［ 1-9/16" ] Depth:13[1/2" ] Center of Door Height Center of Door Height www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
-
Page 8: Before Adjustment
*When there are adjustment bolts at top and bottom, align their positions. Before adjustment After adjustment ② Connecting plate ② Connecting plate Tighten all the screws once the door is in the desired position. ⑫ Adjustment bolt www.sugatsune.com (800) 562-5267... - Page 9 > <1> Depth adjustment screw <3> Horizontal adjustment screw Closing speed adjustment (3 stages) ⑥ Damper unit Slow Fast SUGATSUNE KOGYO CO., LTD. SUGATSUNE AMERICA, INC. SUGATSUNE SHANGHAI CO., LTD. SUGATSUNE KOGYO INDIA California, USA PRIVATE LIMITED Tokyo, JAPAN Shanghai, CHINA...
