SUGATSUNE ALT-ST15-D360 Installation Manual

Installation Manual
ALT-ST15-D360
POCKET DOOR SYSTEM (INSET) SOFT CLOSING
・ Before installation, please read!
・ For the most accuracy, please use metric
measurements as they were converted to imperial mea-
surements for reference.
・ The illustration is illustrated at the left hanging source.

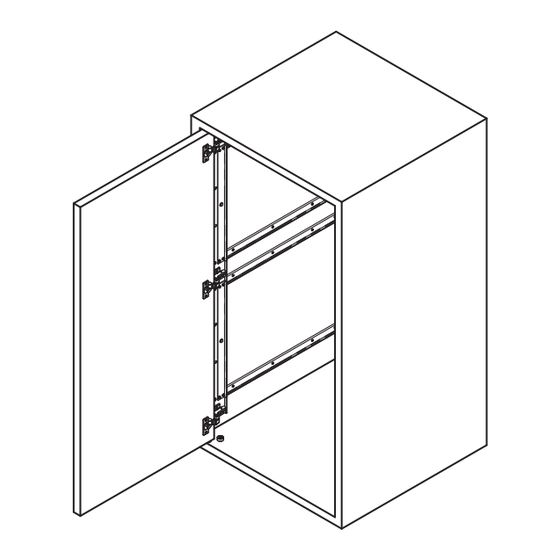

Prepare the front frame of the cabinet
On the hinge side of the cabinet, add a front stile to minimize the visibility of the hardware
and to provide a clean, symmetrical reveal.
The dimensions of the left and right side boards are different.

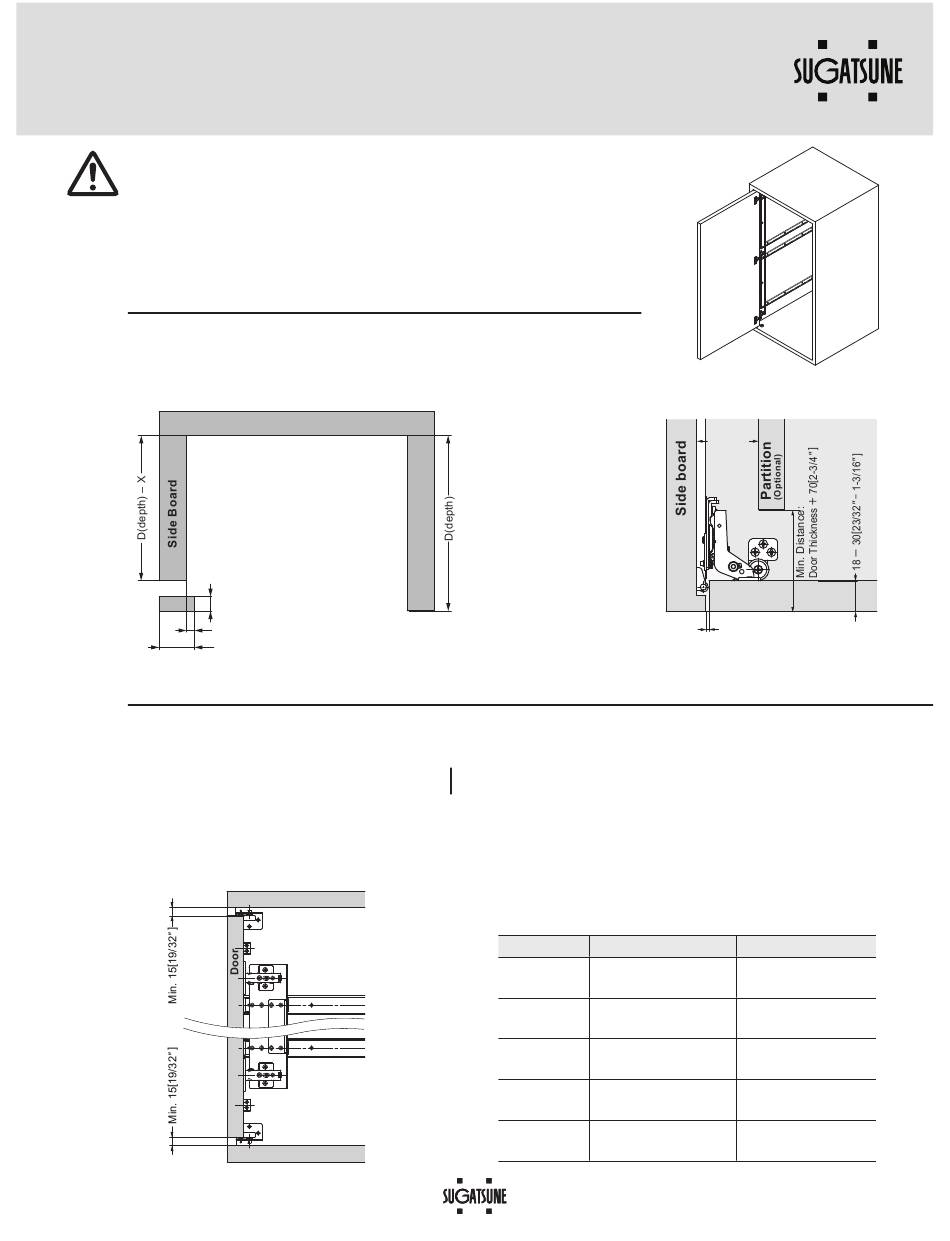

Prepare the door
・Door Width = Cabinet Opening Width – 15[9/16" ］
where 15 mm[19/32" ］ = 9[11/32" ］ +
・Door Height = Cabinet Opening Height – 10[13/32" ］ 10[13/32" ］ =5[3/16" ］ +
NOTE: If Optional Side Mounting Bracket is used;
Door Height = Cabinet Opening Height - 15[19/32" ］ ×2
1
www.sugatsune.com www.sugatsune.com
X＝Max Door Thickness ‒ 14 [9/16" ]
9[11/32" ]
Thickness of Side Board ＋ 9[11/32" ]
3[1/8" ］ +
Stile Width Left Gap
Top board
Bottom board
3[1/8" ］
Right Gap
5[3/16" ］
Top Gap Bottom Gap
Rail Size Door Storing
316 ［12-7/16" ］
16
+ Door Thickness
392 ［15-7/16" ］
19
+ Door Thickness
468 ［18-7/16" ］
22
+ Door Thickness
519 ［20-7/16" ］
24
+ Door Thickness
621 ［24-7/16" ］
28
+ Door Thickness
(800) 562-5267 (800) 562-5267
60
[ 2-3/8" ]
Door
Gap: 3 [ 1/8" ]
Cabinet Depth
412 ［16-7/32" ］
+ Door Thickness
488 ［19-7/32" ］
+ Door Thickness
564 ［22-7/32" ］
+ Door Thickness
615 ［24-7/32" ］
+ Door Thickness
717 ［28-7/32" ］
+ Door Thickness
