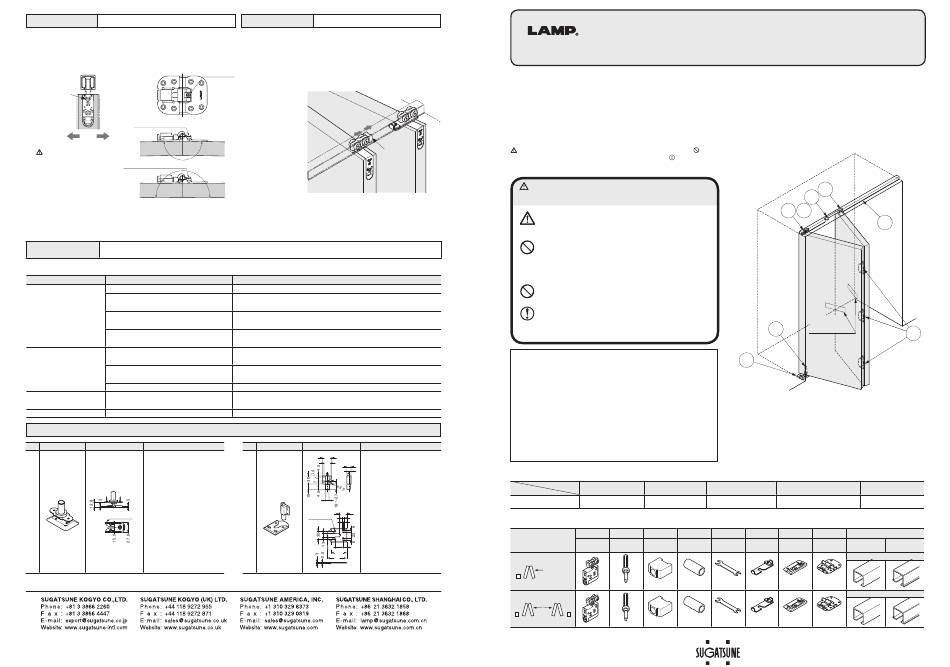

SUGATSUNE Lamp FD30-F Installation Manual

3
PROCEDURE Continued.
3. Left-to-right adjustment (+-2mm) 4. Adjustment of door angle
With Philips screwdriver, adjust With Philips screwdriver, adjust the
the position of upper roller. screw on center hinge.
Adjustment screw※
Left-to-right
右
a d j u s t m e n t
左
screw 下
上
※Adjust by hinge mount position.
Turn the screw clockwise (max: 2 ˚ )
±2
Do not rotate the adjustment screw
exceeding adjustment limit. ˚
178
Damage may be resulted.
˚
Turn the screw counterclockwise (max. 1 )
˚
179
Final confirmation...Confirm that all screws are securely tightened. And, confirm that all screws are used
without mistake.
・Clean inside of rail.
PERIDICAL INSPECTION
・Check upper space and lower space of the door. If necessary, correct the space.
■ TROUBLESHOOTING
Trouble Check Point
A b n o r m a l n o i s e d u r i n g Check if door touches other parts.
operation
Check inside of upper rail for foreign matter or
aluminum dust.
Check rail rollers for aluminum dust.
Check for loose screws retaining the upper rail.
Heavy door operation Door bottom touches the floor.
Check if door touches adjacent parts.
Check if door is warped.
Door does not move. Check rail retaining screws for looseness.
Door starts to move. Check the upper rail if it is set horizontally.
nahrd04.eps
OPTIONAL PARTS (SOLD SEPARATELY)
No. Part Name Dimensional Drawing Specifications
Door end holder Order code:250-017-173
pin
Part No.:FD30-FTF
●
Material Polyamide/Steel
●
Finish Natural
/Colored chromating
●
Accessory screw
Countersunk tapping screw 3×16
Countersunk tapping screw 3.5×16
1
Rest guide
ISO9001(Japan Offices and Sugatsune America) and ISO14001(Chiba Production division and Logistci center), certified.
4
PROCEDURE Adjusting stopper block position
According to "Shop Drawing" ,
temporary fix stopper block.
After adjusting the stopper block to
the position where both doors keep
"V" shape during folding them slowly,
and adjust such that doors move
smoothly when closing them, fix the
adjustor block firmly.
Stopper block
左
右
上
下
Remedy
Provide necessary space between door and adjacent objects.
Remove dust or foreign matter.
Remove the rail and pull out the roller. Then, clean the roller.
Tighten the screw.
Confirm that screws are not loosened. And, adjust door height. Adjust the
clearance between door bottom and floor to 16mm.
Correct door position to avoid contact to other objects.
Adjust position of lower guide or stopper.
Use the door without warp.
Roller touches the screw.
Retighten screws to free the roller.
Using a level gauge, reset upper rail horizontally.
No. Part Name Dimensional Drawing Specifications
Door end holder Order code:250-017-171
33
(magnetic) Part No.:FD30-FMF
23
●
15
Material Polycarbonate
8.5
/ Neodymium
3.5 ●
Finish Dark brown
●
Accessory screw
Flanged round head wood screw 3.1×16
φ 13
Countersunk tapping screw 3.5×16
2
28
φ 4 φ 8 CSK
8
4
30 13
57.9
72
2013.12 PRINTED IN JAPAN 0763-1
FD30-F CEILING MOUNT, FOLDING DOOR SYSTEM
Installation Manual
(Main Door End Fixed Type)
Thank you very much for selecting FD30-F CEILING MOUNT, FOLDING
DOOR SYSTEM.Before starting installation, please read this installation
manual thoroughly to install the door correctly. Improper installation
may result in injury. To prevent such accident, please follow instructions
described in this manual. After installing the door, leave this manual
to the owner so that the owner is able to use this manual to check the
door any time. The door system will be upgraded/improved without
announcement, for change in dimensions or specifications, please
左
confirm with delivered door system parts.
右
上 ■ FOR YOUR SAFETY WORK AND OPERATION
下
symbol denotes "warning" and "caution" during work or operation.
denotes the item which should be avoided to keep safety.
item which should be followed to avoid injury. If this item is not followed, injury
may be resulted.
Warning: If this warning is not followed, injury or
damage of household good may be resulted.
This sliding door system should be installed by experienced person who has
correct knowledge. If the system is not installed correctly, the door will not operate
smoothly, and or may cause injury.
Do not try to use this product for any other purposes other than originally intended
for. Do not disassemble the components for any modifications. Do not use the
system for applications that are out of specification. Any improper use might result
in accident or injury. We do not take any responsibility for any damage, accident or
injury occurring from an improper use, application or wrong installation.
Avoid opening/closing the door with excessive force. Such operation may cause
trouble.
It is necessary to manufacture the frame having sufficient strength to endure the
weight of door and impact shocks upon opening/closing the door. The frame with
poor strength might result in improper and slower movement of the door. In the
worst case, door might drop down causing injury.
IMPORTANT:
・This manual is prepared to describe the installation methods
considered most safe and effective to set up and install the sliding
door system. The installation procedures or methods can be changed
to meet your working conditions or environments.
・ In this manual, the dimensions are not considering margin of error
or deformation of material. Therefore, please carry out each process
such as cutting, taking care of deformation or other changes.
・ In this installation manual, the dimension is used without consideration
of error by processing or assembly work or deformation of material
itself. In actual work such as cutting, therefore, should be carried out
considering actual work environment.
■ SPECIFICATIONS
Max.Door width
FD30-F
■ COMPONENT PARTS
①
Upper roller
(embed)
2 door, main door end fixed
右
左
下
上
4 door, main door end fixed
右
左
下
上
As optional parts, upper roller cap, door end rolling stopper, etc. are offered. Please refer Page 4 for detail.
収納部 収納部
symbol
symbol denotes
2
7
Min. Door thickness Max. Door height
450mm 30mm 2400mm
② ③ ④ ⑤ ⑥
Lower pivot Stopper block Striker Spanner Fixing metal
2 1 1 1 1 1
4 2 2 1 1 2
Part No.FD30UKP
1
3
1 6
9
Handle
(Optional)
8
Max. Door weight Vertical adjustment
15kg/door 3mm upward
⑦ ⑧ ⑨
Pivot bearing Center hinge
Rail (Fascia) Rail (Embed)
(on floor) (fascia)
Select either type
1 3
Select either type
2 6
