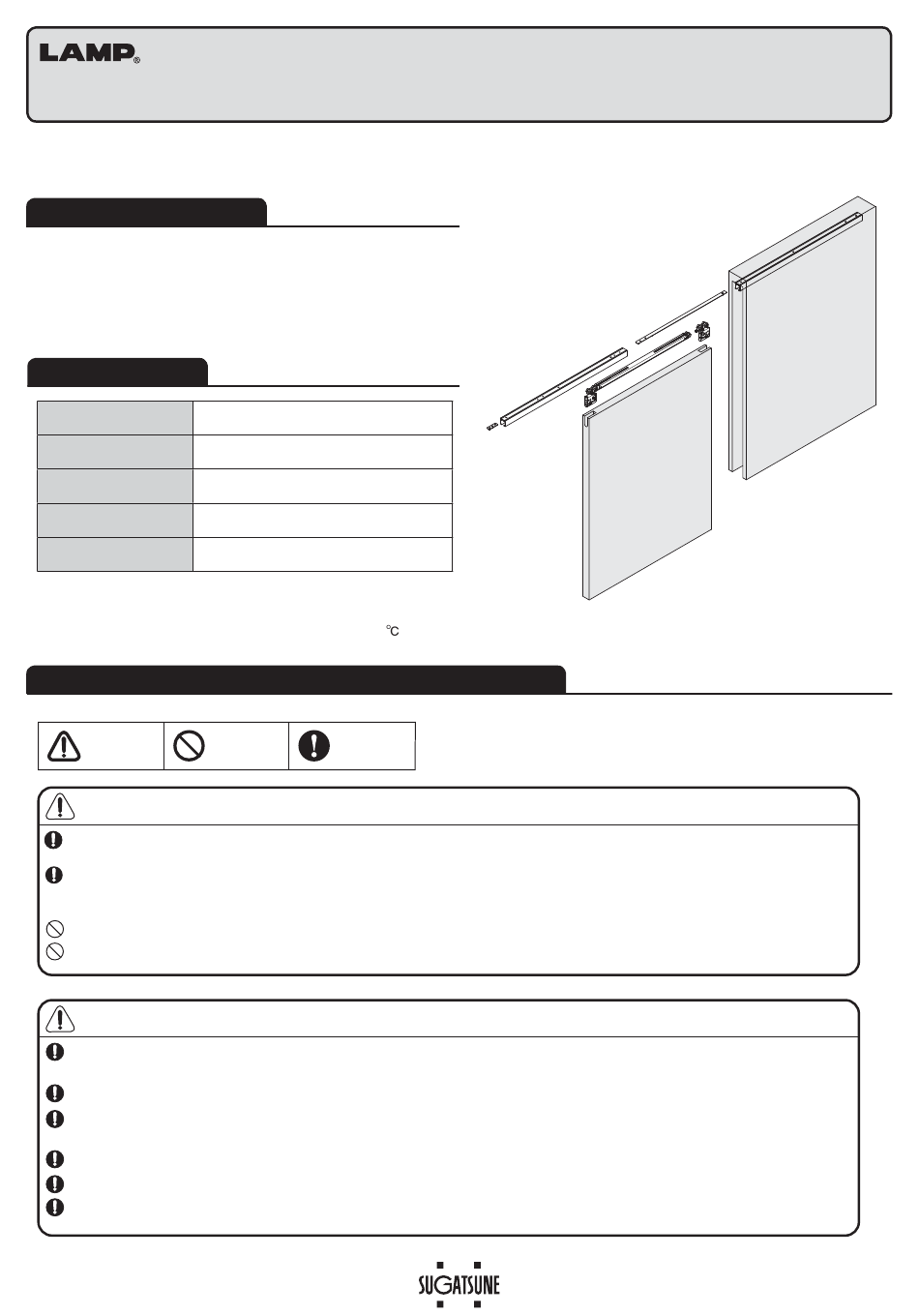

FD50-H SLIDING DOOR SYSTEM Installation Manual
(Ceiling Mount Type for Pocket Door, with Two-way Soft Close)
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
●
T his is the door hardware for sliding door system in stores,
public facilities and residence.
●
T he track can be divided for easy maintenance after installing.
●
Built in soft closer enables two-way soft closing movement
for both direction.
SPECIFICATIONS
Door width
Max. Door height
Min. Door thickness
Max. Door weight
Height adjustable range
・    T he closing speed of the soft closing type door may change due
to ambient temperature, operating method or installation quality.
・    R ecommended ambient temperature range is 5 to 40
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
Meaning of symbols
Warning
Caution
WARNING:
If these warnings are not followed, it may result in death or serious injury.
This (sliding door system) should be installed by an experienced person who has correct knowledge. If the system is not installed correctly, the
door will not operate smoothly, and or may cause injury.
It is necessary to manufacture the frame with sufficient strength so it endures the weight of the door and impact shocks upon opening/closing the
door. Also make sure to only use the designated screws and to fasten them firmly. A frame with poor strength or loose screws might result in
improper and slower movement of the door. In the worst case, the door might drop down and cause injury.
Do not try to use this product for any other purposes than originally intended for. Do not use the parts for applications that are out of specification.
Do not disassemble nor modify any parts other than those described in this document.
Caution:
If these cautions are not followed, it may result in injury or damage.
Make sure to follow the designated measurements and specifications as well as horizontal and verticals angles. Make sure that frame and door are
not warped nor bent, since it may affect the movement of the door.
If cutting any parts, make sure to remove any burr before installation. Also check the upper track for any left-over burr or scrap and remove these.
This (sliding door system) is a part for furniture fittings. After installation, make sure to test the finished product thoroughly to ensure that it is
well-functioning and safe.
Make sure to test the screws for slack at regular intervals (one month from first usage, half year and then one time every year is recommended).
When installing "pocket door" specification, make "easy-maintenance" structure.For example, use removable panel.
We recommend that the installation is carried out by two people, in order to ensure proper installation and avoid unnecessary stress on the parts.
680 -  1500 mm
2400 mm
30 mm
50 kg/door
1 mm upward, 4 mm downward
Prohibited
Required
Part No.FD50DHCP-PD
Door pocket
Door
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LAMP FD50-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SUGATSUNE LAMP FD50-H

Summary of Contents for SUGATSUNE LAMP FD50-H

  • Page 1 FD50-H SLIDING DOOR SYSTEM Installation Manual (Ceiling Mount Type for Pocket Door, with Two-way Soft Close) Part No.FD50DHCP-PD Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation. Please keep this manual at hand for future reference. ABOUT THE PRODUCT ●  ...

  • Page 2: Component Parts

    COMPONENT PARTS ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Two-way Soft Upper roller Door guide Door Name Front trigger Pocket trigger Floor guide Open area track Closer (recessed) track pocket track Order code 250-020-764 250-029-707 250-029-706 250-020-765 250-029-718 250-019-971 Available with various length and finishes Part No.
  • Page 3 ASSEMBLY (This manual explains assembly procedures for single side sliding system.) ・ Check that dimensions of frame, floor, door and track are ・ Check that door is not warped. C o n f i r m a t i o n correct.
  • Page 4 Preparation of Mounting Parts Installation of Casing and Door Guide Track Pull up lever to separate main unit from casing. Fix the casing with attached screws firmly. Casing Main ain unit Pull out casing Pull up lever Door guide track Installing Pocket Trigger Insert this end which has the pin.
  • Page 5 Installing Open Area Track. Overlap the two countersunk holes on the Pocket trigger and the two holes on the Upper track nearby the open area. 【1】 Positioning Insertion of the trigger may be difficult if the Align the track end to the end of the tracks are not aligned.
  • Page 6 Temporary Fixing Floor Guide Position floor guide just below the The figure shows the position center of upper track. of the model which has margin. Elongated hole Elongated hole Trailing edge at closed position Front face of door pocket Hanging Door Two-way Soft Closer Insert the roller until a click sound is heard.
  • Page 7 Adjusting Door Position Adjust door such that door is parallel to upper track with 9 mm clearance between door and floor. CAUTION CAUTION Do not turn adjustment screw beyond adjustment range. Do not use moter screw driver. 3 mm Forward / backward adjustment range: 4 mm Vertical adjustment range: 7 mm 4 mm 右...
  • Page 8 Supplement 1 How to Remove Door, Track 【1】 How to remove door Two-way soft closer Put a support of 10 mm thickness under the door. Pull out the upper roller (main unit) from the casing, while pushing the lever on the upper roller. Remove door Pull out the door, while taking care of scratching with the door pocket.
  • Page 9 Supplement 2 How to Shift The Connecting Position of the Tracks Put a mark on the 【1】 When determining trigger position on site Open area track with reference to the front (1) Put a mark on the Open area track with reference to the end of the door.
  • Page 10 SUGATSUNE SHANGHAI Co., LTD    SUGATSUNE AMERICA, INC    Tokyo, JAPAN Shanghai, CHINA California, USA Phone: +81 (0)3 3866 2260 E-mail:export@sugatsune.co.jp Phone: +86 21 3632 1858  E-mail:lamp@sugatsune.com.cn Phone: +1 310 329 6373 E-mail:sales@sugatsune.com SUGATSUNE KOGYO (UK) LTD    Guangzhou, CHINA    Chicago, USA   ...
