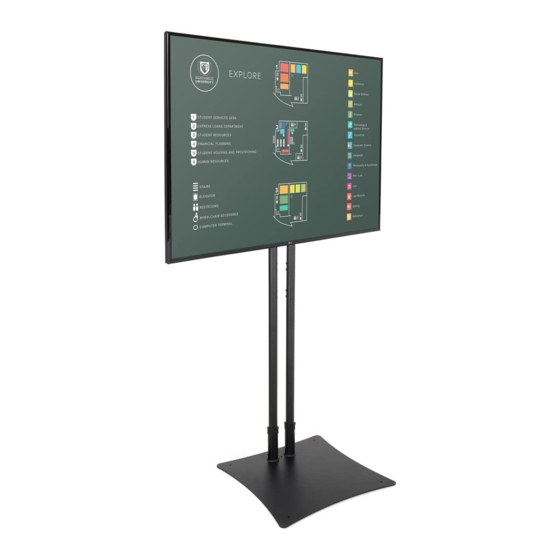

Displays2go DSTANDBK Instruction Manual

Parts
A. Instructions
B. Metal Base
C1. Lower Round Tubing (Left)
C2. Lower Round Tubing (Right)
D1. Upper Round Tubing (Left)
D2. Upper Round Tubing (Right)
E. Tubing Connector
F. Pan Head Screw
CAUTION:
METAL BASE IS HEAVY! 2 PERSONS LIFT/MOVE
TO PREVENT ANY PHYSICAL INJURY.
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE START THE ASSEMBLING.

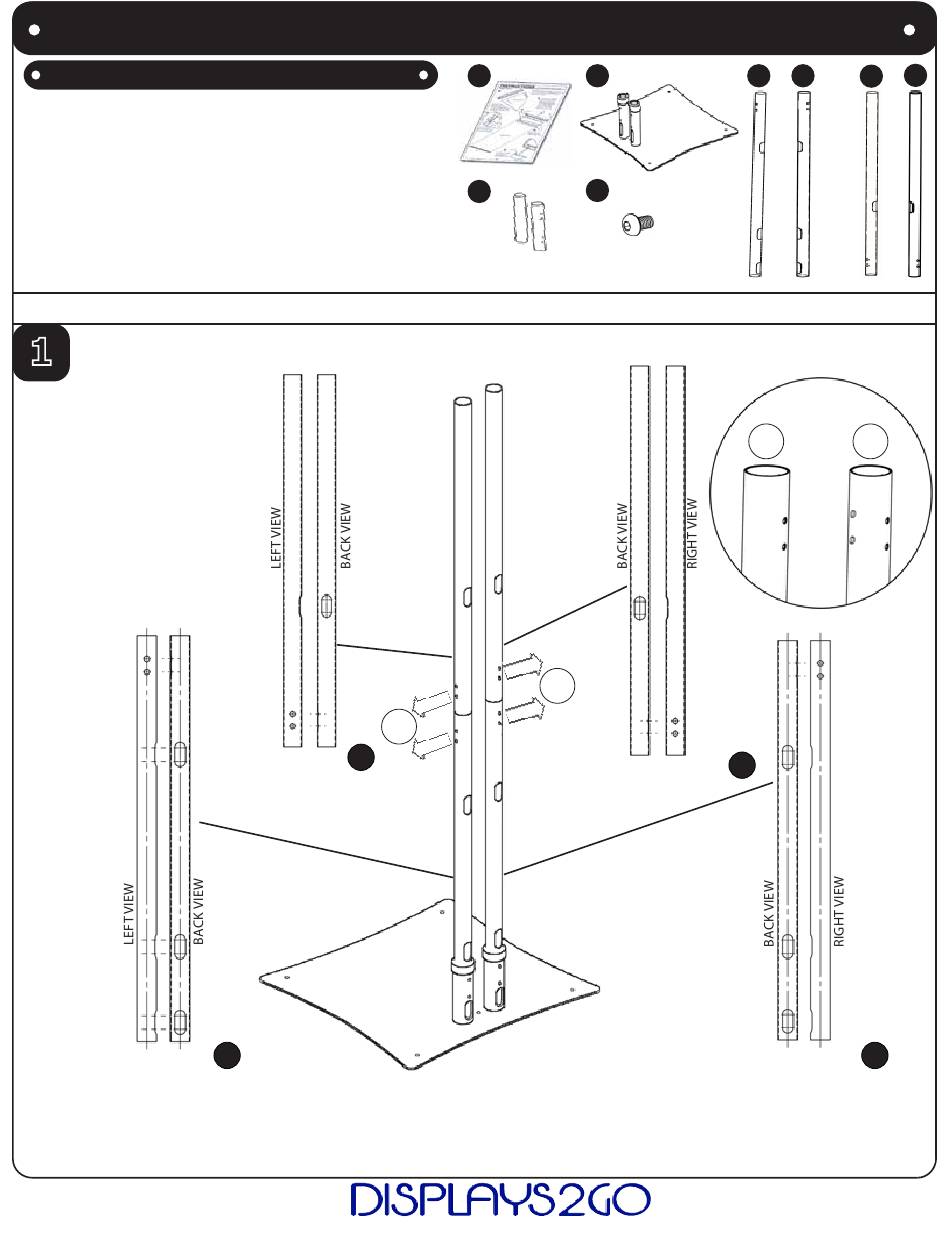

Open small box, lay out 4 long Tubings (C1, C2, D1, D2) on a flat surface. See picture below to
1
identify where each tubing goes to (upper or lower, left or right).
Lower Left Tubing
**1. One or more upper/lower tubing may have holes on both sides.
2. Make sure each tubing has at least one pair of 2 holes facing outward (see detail 2).
3. Arrange tubings with one pair holes (see detail 3a), then sort tubings with two pairs holes
(see detail 3b) to open places.
