Specifications
Current consumption
Dimensions
Temperature Range
*TERR: EN 50083-3/60dB IMA3 [dBuV]; SAT: EN 50083-3/35dB IMA3 [dBuV]
3) Product Takeover
Make sure that the product is not damaged. Please contact your dealer in the case of damage.
4) Product Storing and Installation
We recommend the device to be installed and serviced by the qualified technician.
The product must not be stored and installed
•
in the place with excessive humidity
•
in the place with excessive dust pollution, mechanical vibrations or impacts
•
in the place out of temperature limits specified in the section 2) Technical Specifications
•
close to heat sources (radiators or air ventilators, direct sunshine etc.)
•
in the reach of children.
Do not expose the apparatus to dripping or splashing. Use the apparatus only in moderate climates (not in
tropical climate).
Fix the product firmly on a wall or another hard and inflammable surface with screws and dowels.
•
The product shall be in no case held only by the connected cables.
•
Do not cover the product (with curtains etc.).
•
Do not place any containers with liquids (vases, glasses etc.) or naked flame sources (lighted
candle etc.) on the product or near the product.
5) Product connection
Connect the product in accordance with this manual and valid regulation in you country. Use high quality 75 Ω
coaxial cable designed for satellite reception. The coaxial cables shall not be broken, the minimum bending
radius should be 5 cm. Mount the F connectors (screw, crimp or compress type) on the ends of coaxial cables,

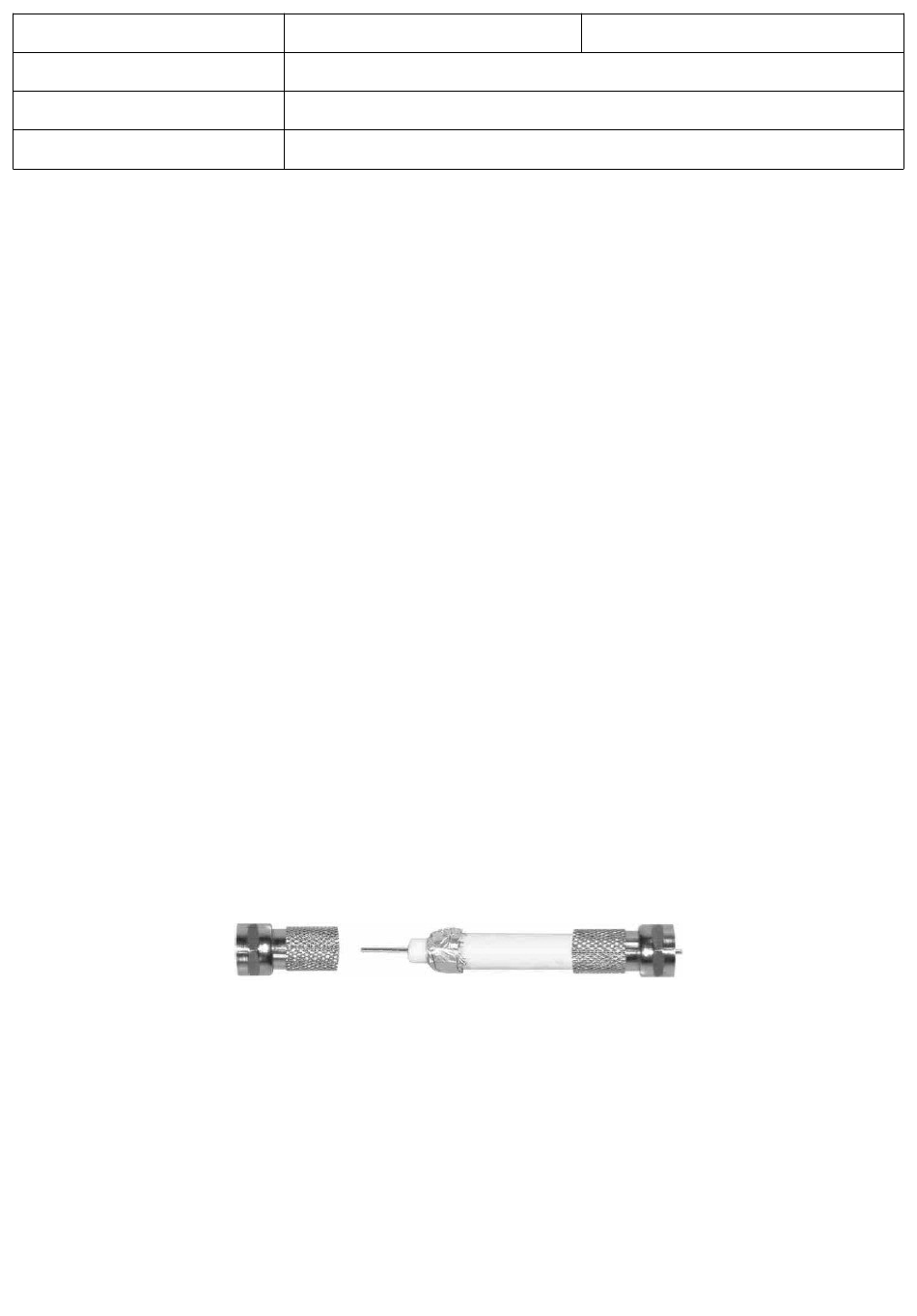

in the case of using the screw F connectors proceed according to the following picture and instructions:
1.
Remove the outer coaxial cable coating in the length of approx. 15 mm.
2.
Roll up the metal shielding braid and the shielding foil underneath and cut the shielding with
scissors to approx. 5 mm.
3.
Remove approx. 10 mm of the inner plastic insulation (approx. 5 mm of the insulation remains in a place).
4.
Carefully screw the F connector on the cable end until the plastic insulation levels with the
F connector opening.
5.
Check there is no short between the inner conductor of coaxial cable and F connector.
Connect the F connectors into the F sockets of product and fasten them with an appropriate force.
MS5/12ELP-4
55 mA (bei 18V) each receiver
18,6 x 14,6 x 5,1 cm
−25 – +65 °C
2 of 4
MS5/16ELP-3
