Instruction Manual

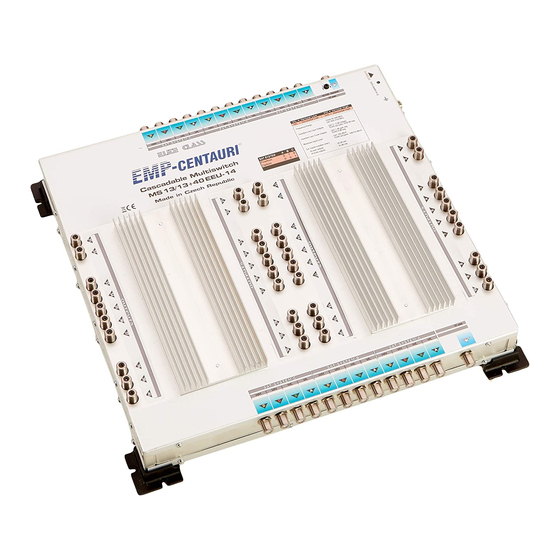

MS13/13+32EEU-14
MS13/13+40EEU-14
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its installation and putting into
operation, read carefully the entire operation manual. Keep the purchase and rework (if any) records for
future need.

1) Field of Application, Warranty

The product is designed for the distribution of satellite & terrestrial (including cable) TV and radio signals. Its
main purpose is to allow connecting of multiple user to the common antenna (SMATV).
The manufacturer provides for E.LITE CLASS products extended 4 (four) years warranty from the date of
purchase, see details in EMP-Centauri's General trade conditions, published at manufacturer's website
www.emp-centauri.cz.
It is prohibited to dismantle the product and make any interventions in it. Repairs or any interventions in the
product may be performed only by EMP-Centauri company, or other companies authorized by EMP-
Centauri.

2) Technical Specifications

Products are cascadable multiswitches for distribution of terrestrial and satellite signals from 3 satellite
positions (12 polarities) to up to 60 users, depending on model. Satellite trunk lines are active and exhibit
small gain. Terrestrial trunk line is passive.
Terrestrial band can be switched passive / active for all user's outputs. The insertion loss in satellite band is
sloped to compensate increasing loss of coaxial cables.
The multiswitch is DC supplied from connected satellite receivers, DC2.1 socket for external power 12V is
connected to all satellite inputs. DC pass is provided through the TERR line.
Specification
Number of Trunk Lines
Number of User Outputs
Frequency Range
Insertion Loss – User Outputs* SAT 5–0 dB, TERR 0 / 30 dB
Insertion Loss – Trunk Lines*
Isolation – User Outputs (min) 20 dB
Isolation – Trunk Lines (min)
Maximum Input level**
MS13/13+52ECU-13
MS13/13+60ECU-13
MS13/13+32 MS13/13+40
EEU-14 EEU-14
13 (12 x SAT, 1 x TERR)
32 40
SAT 950–2150 MHz, TERR 40–840 MHz
SAT 1 dB gain, TERR 4 dB
25 dB
SAT 100 dBuV, TERR 100 dBuV active, 110 dBuV passive
1 of 4
MS13/13+52 MS13/13+60
EEU-13 EEU-13
52 60
SAT 8–0 dB, TERR 5 / 32 dB
