Summary of Contents for EMP-Centauri MS9/4PIU-5

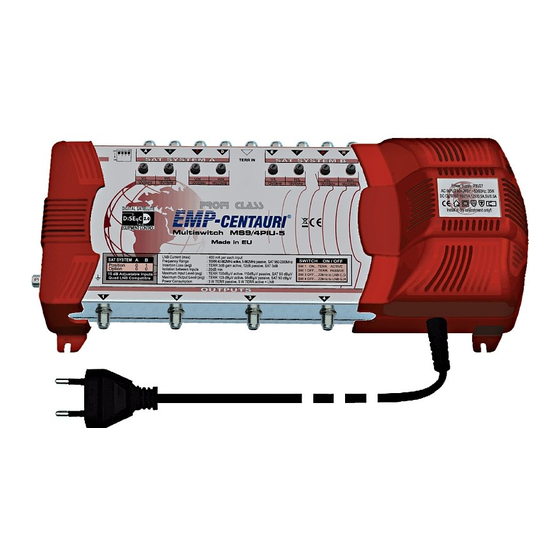

- Page 1 ® Heading for the future Heading for the future Satellite Multiswitch Instructions for Use MS9/4PIU-5 MS9/6PIU-5 MS9/6PIU-5 MS9/10PIU-5 MS9/12PIU-6 MS9/16PIU-6 MS9/20PIU-6 MS9/26PIU-6 EMP-Centauri is a registered trademark...
- Page 2 Dear Customer, Thank you for buying the EMP-Centauri satellite product. Before installing and operating the prod- uct read carefully these instructions for use. Keep these instructions for use in a safe place. The product may be installed and connected only in strict compliance with these instructions for use and applicable standards.
- Page 3 Product installation Use the enclosed screws and dowels for installation. Drill holes for the screws as shown in the drawing: MS9/4PIU-5, MS9/6PIU-5, MS9/6PIU-5, MS9/10PIU-5 MS9/12PIU-6, MS9/16PIU-6, MS9/20PIU-6, MS9/26PIU-6 4 x Ø 5,0 4 x Ø 5,0 296,0 416,0 To connect the product inputs and outputs use high-quality coaxial cable designed for satellite reception and F connectors.
- Page 4 case of the Twin or Dual converter, or with the output of Horizontal Low in case of the Quatro converter. • Connect the input marked 13 V / 22 kHz (LNB C) with the output of Vertical converter in case of the Twin or Dual converter, or with the output of Vertical High in case of the Quatro converter.
- Page 5 Technical parameters SPECIFICATIONS MS9/4PIU-5 MS9/6PIU-5 MS9/8PIU-5 MS9/10PIU-5 MS9/12PIU-6 MS9/16PIU-6 MS9/20PIU-6 MS9/26PIU-6 Number of Inputs Number of Outputs Frequency Range TERR 5-862 MHz, SAT 950-2300 MHz Insertion Loss TERR 0 dB (active), TERR 0 dB (active), TERR 0 dB (active), TERR 7 dB (active),...
- Page 6 Troubleshooting Disconnect plugs of the product, satellite receiver and TV set from the grid whenever work- ing with the antenna connectors or antenna equipment. Any work on energized equipment may result in a fatal electric accident! If you have to enter places with a risk of fall, pay attention to your safety.
- Page 7 We also offer the following products from our production program: P.142-UP, P.143-UP, P.146-UP, P.147-UP (MS5/4PIU-4, MS5/8PIU-4, MS5/12PIU-5, MS5/16PIU-5) MS9/4PIU-5, MS9/6PIU-5, MS9/8PIU-5, MS9/10PIU-6, MS9/12PIU-6, MS9/16PIU-6, MS9/20PIU-6, MS9/26PIU-6 MS13/4PIU-6, MS13/8PIU-6, MS13/12PIU-6, MS13/16PIU-6, MS13/20PIU-6, MS13/26PIU-6 MS17/4PIU-6, MS17/8PIU-6, MS17/12PIU-6, MS17/16PIU-6, MS17/20PIU-6, MS17/26PIU-6...
- Page 8 EMP-CENTAURI s.r.o. 5. května 690, 339 01 Klatovy Czech Republic info@emp-centauri.cz ● www.emp-centauri.cz...
