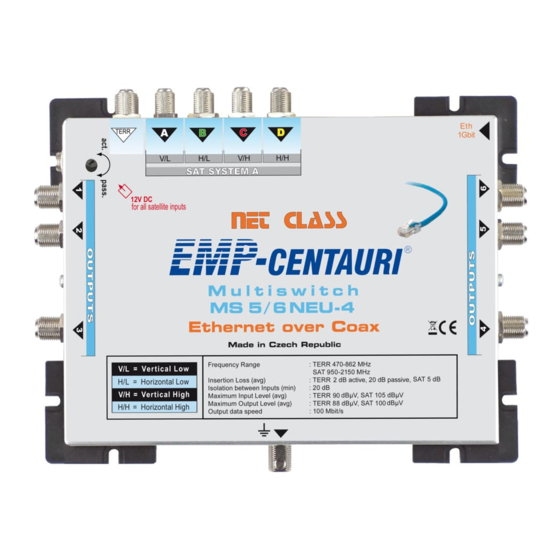

EMP-Centauri MS5/6NEU-4 Instruction Manual

Instruction Manual
MS5/6NEU-4
MS9/6NEU-4
MS13/6NEU-4
MS17/6NEU-4
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its installation and putting into
operation, read carefully the entire operation manual. Keep the purchase and rework (if any) records for
future need.
Content
1) Field of Application, Warranty.
2) Technical Specifications
3) Product Takeover
4) Product Storing and Installations
5) Product Connection .
6) Product Settings
7) Safety
8) Product Maintenance.
9) Troubleshooting
10) Symbols Explanation.
11) Wiring Diagrams
12) EMP-Centauri´s Related Products .
13) Contact

1) Field of Application, Warranty

The product is designed for the distribution of satellite (SAT), terrestrial (TERR); TV and radio signals, as
well as data transmissions between NET CLASS multiswitch and EMP-Centauri´s NET CLASS wall
sockets. Its purpose is to allow connecting of multiple user to the common satellite antenna, while at the
same time providing them internet connectivity over the same coaxial network.
EMP-Centauri´s NET CLASS products are covered under 4 (four) years warranty from the date of
purchase. The warranty shall not apply to the product used for other than the specified purpose. The user
will be responsible for injury or material damage which may arise in consequence of any product use in
contradiction with the manual. It is prohibited to dismantle the product and make any interventions in it.
Repairs or any interventions in the product may be performed only by EMP-Centauri company, or other
companies authorized by EMP-Centauri.
MS5/10NEU-4
MS9/10NEU-4
MS13/10NEU-4
MS17/10NEU-4
.
. .
.
. .
. .
.
. .
.
. .
. . .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
.
. .
