EMP-Centauri MS9/4EIP-8 Instruction Manual

Instruction Manual
MS9/4EIP-8
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its installation and putting into
operation, read carefully the entire operation manual. Keep the purchase and rework (if any) records for
future need.
1) Field of Application, Warranty
The product is designed for the distribution of satellite and terrestrial TV signals. EMP-Centauri's E.LITE
CLASS products are covered under 4 (four) years warranty from the date of purchase, see details in
document "General Trade conditions", published at manufacturer's website www.emp-centauri.cz.
Repairs or any interventions in the product may be performed only by EMP-Centauri company, or other
companies authorized by EMP-Centauri.
2) Technical Specifications

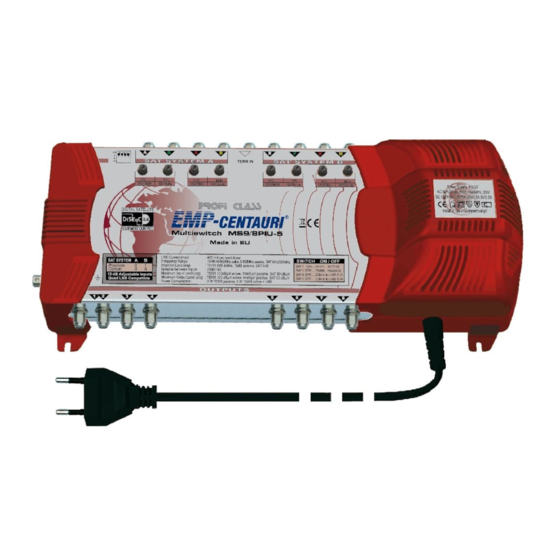

Products MS9/4EIP-8 and MS9/8EIP-9 are multiswitches for reception from two satellites and for up to 4
(MS9/4EIP-8) or 8 (MS9/8EIP-9) users. Signals in terrestrial band are distributed passively.
Multiswitches are controlled from a satellite receiver by DiSEqC commands and are compatible with both
Quattro and quad LNBs. Multiswitches are powered from internal power supply.
Specifications
Inputs / Outputs
Frequency Range
Control
Insertion Loss
Sat. inputs isolation
Maximum input level*
Maximum output level*
Current consumption
Power input
Dimensions (w,d,h)
Temperature Range
*Terr.: EN 50083-3/60dB IMA3; SAT: EN 50083-3/35dB IMA3
3) Product Takeover
Make sure that the product is not damaged. Please contact your dealer in the case of damage.
MS9/8EIP-9
MS9/4EIP-8
9 (8xSAT, 1xTERR) / 4
SAT 950–2150 MHz, TERR 5–862 MHz
DiSEqC 1.0 (2.0)
SAT 5 dB, TERR 13 dB
25 dB within LNB, 30 dB between LNBs
SAT 90 dBuV, TERR 100 dBuV
SAT 85, TERR 87 dBuV
70 mA
3 W (+ consumption of LNBs)
26.0 x 11.4 x 5.3 cm
−25°C – +60°C
MS9/8EIP-9
9 (8xSAT, 1xTERR) / 8
SAT 8 dB, TERR 16 dB
SAT 82, TERR 84 dBuV
40 mA
6 W (+ consumption of LNBs)
36.0 x 11.4 x 5.3 cm
**bei 18 V, von jedem Receiver
