EMP-Centauri MS5/4PLP-3 Instruction Manual

Instruction Manual
MS5/4PLP-3
MS5/6PLP-3
MS5/8PLP-3
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its installation and putting into
operation, read carefully the entire operation manual. Keep the purchase and rework (if any) records for
future need.

1) Field of Application, Warranty

The product is designed for the distribution of satellite (SAT) and terrestrial (TERR), TV and radio signals.
EMP-Centauri΄s PROFI CLASS products are covered under 6 (six) years warranty from the date of
purchase, see details in document "General trade conditions", available at www.emp-centauri.cz.
The warranty shall not apply to the product used for other than the specified purpose. The user will be
responsible for injury or material damage which may arise in consequence of any product use in
contradiction with the manual. Repairs or any interventions in the product may be performed only by EMP-
Centauri company, or other companies authorized by EMP-Centauri.

2) Technical Specifications

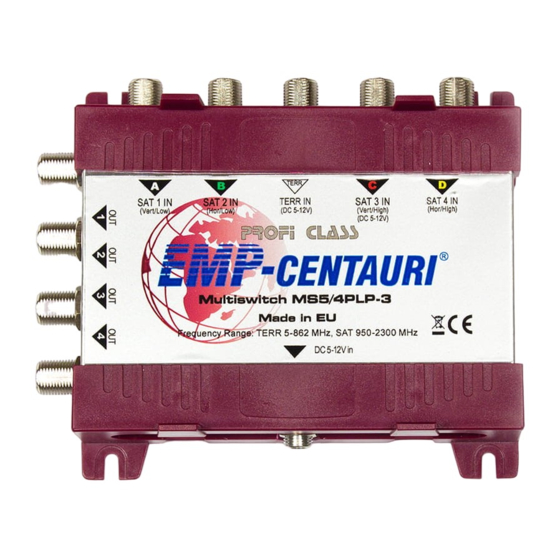

Products MS5/4PLP-3, MS5/6PLP-3 and MS5/8PLP-3 are multiswitches, which distribute both satellite and
terrestrial signals for 4, 6 or 8 users.
The multiswitches are powered from connected satellite receivers and pass this power also to input B (SAT
2 IN, Hor/Low) for supplying of LNB. Basic operation is thus possible even without power supply.
Socket "DC 5-12V in" feeds also inputs C (SAT 3 IN, Vert/High) and TERR IN with power from optional
external supply.
Specifications
Inputs
Outputs
Frequency Range
Control
Insertion loss SAT
(avg)
Insertion loss TERR
(avg)
Isolation of inputs (min) 20 dB
Max. input signal level* TERR 105 dBμV, SAT 90 dBuV
MS5/4PLP-3
5
4
TERR 5–862 MHz, SAT 950–2300 MHz
13/18 V + 0/22 kHz
0 dB
13 dB
MS5/6PLP-3
6
3 dB
15 dB
1 of 4
1003940-EN A
MS5/8PLP-3
8
16 dB
