Instruction Manual
MS5/5+12ECP5dB-4
MS5/5+12ECP10dB-4
MS5/5+16ECP5dB-4
MS5/5+16ECP10dB-4
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its installation and putting into
operation, read carefully the entire operation manual. Keep the purchase and rework (if any) records for
future need.
1) Field of Application, Warranty
The product is designed for the distribution of satellite (SAT) and terrestrial (TERR), TV and radio signals.
EMP-Centauri΄s E.LITE CLASS products are covered under 4 (four) years warranty from the date of
purchase. The warranty shall not apply to the product used for other than the specified purpose. The user
will be responsible for injury or material damage which may arise in consequence of any product use in
contradiction with the manual. Repairs or any interventions in the product may be performed only by EMP-
Centauri company, or other companies authorized by EMP-Centauri.
2) Technical Specifications

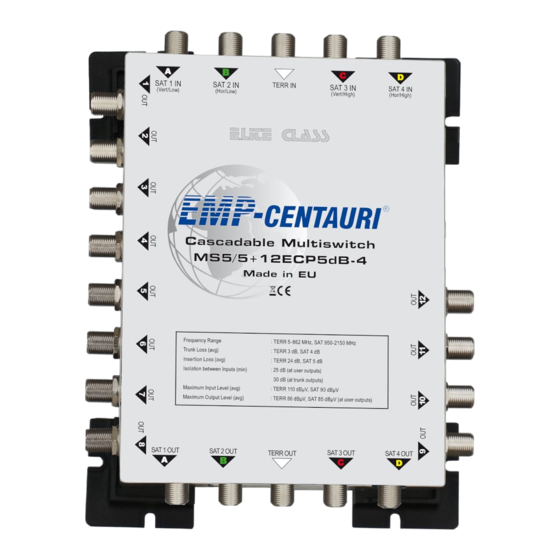

Products MS5/5+12ECP-4, MS5/5+16ECP-4, MS5/5+12ELP-4 and MS5/5+16ELP-4 are multiswitches,
which distribute both satellite and terrestrial signals for 12 or 16 users.
The multiswitches are powered from connected satellite receivers. Models MS5/5+12ELP-4 and
MS5/5+16ELP-4 pass this power also to input B (SAT 2 IN, Hor/Low) for supplying of LNB. External power
supply is in this case not required.
If products MS5/5+12ECP-4 and MS5/5+16ECP-4 are used, LNB must be supplied from other power
source, for example through coaxial trunk cables.
Every model is offered in two versions according the user's outputs insertion loss. Take care to order the
right version.
Specifications
Number of Trunks
Num. of user outputs
Frequency Range
Control
Insertion loss (avg),
user outputs
Insertion loss (avg),
trunk outputs
MS5/5+12ELP5dB-4
MS5/5+12ELP10dB-4
MS5/5+16ELP5dB-4
MS5/5+16ELP10dB-4
MS5/5+12ECP5dB-4
MS5/5+12ELP5dB-4
5
12
TERR 5–862 MHz, SAT 950–2150 MHz
13/18 V + 0/22 kHz
TERR 24 dB
SAT 5 dB
TERR 3 dB
SAT 4 dB
MS5/5+12ECP10dB-4
MS5/5+12ELP10dB-4
TERR 27 dB
SAT 10 dB
1 of 4
1003970-EN A
MS5/5+16ECP5dB-4
MS5/5+16ECP10dB-4
MS5/5+16ELP5dB-4
MS5/5+16ELP10dB-4
16
TERR 25 dB
SAT 5 dB
TERR 28 dB
SAT 10 dB
