EMP-Centauri MS9/9+6ECU-4 Instruction Manual

Instruction Manual
MS9/9+6ECU-4
MS9/9+10ECU-4
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its installation and putting into
operation, read carefully the entire operation manual. Keep the purchase and rework (if any) records for
future need.

1) Field of Application, Warranty

The product is designed for the distribution of satellite & terrestrial (including cable) TV and radio signals. Its
main purpose is to allow connecting of multiple user to the common antenna (SMATV).
The manufacturer provides for E.LITE CLASS products extended 4 (four) years warranty from the date of
purchase, see details in EMP-Centauri's General trade conditions, published at manufacturer's website
www.emp-centauri.cz.
It is prohibited to dismantle the product and make any interventions in it. Repairs or any interventions in the
product may be performed only by EMP-Centauri company, or other companies authorized by EMP-
Centauri.

2) Technical Specifications

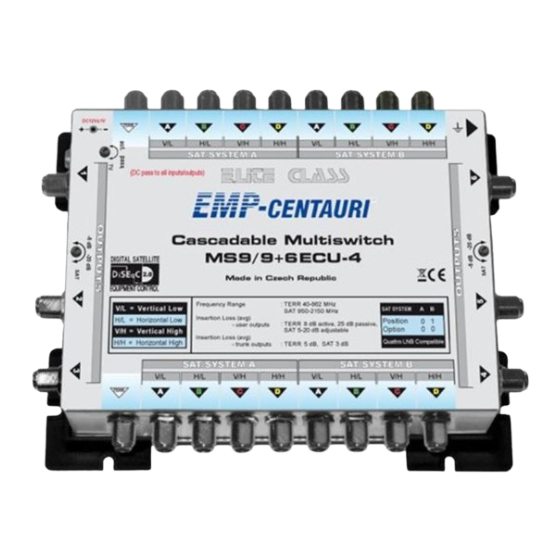

Products are cascadable multiswitches for distribution of terrestrial and satellite signals from 2 satellite
positions (12 polarities) to up to 30 users, depending on model. All trunk lines are passive.
Terrestrial band can be switched passive / active for user's outputs. The insertion loss can be adjusted in
the range 5–20 dB for groups of user's outputs.
The multiswitch is DC supplied from connected satellite receivers, DC2.1 socket for external power is
connected to all satellite trunk lines. DC pass is provided through the TERR line.
Specification
Number of Trunk Lines
Number of User Outputs
Frequency Range
Insertion Loss – User Outputs* SAT 5–20 dB
Insertion Loss – Trunk Lines*
Isolation – User Outputs (min) 20 dB
Isolation – Trunk Lines (min)
Maximum Input level**
MS9/9+16ECU-12
MS9/9+20ECU-12
MS9/9+6 MS9/9+10
ECU-4 ECU-4
9 (8 x SAT, 1 x TERR)
6 10
SAT 950–2150 MHz, TERR 40–862 MHz
TERR 8 / 25 dB
SAT 3 dB, TERR 5 dB
25 dB
SAT 105 dBuV, TERR 105 dBuV
1 of 4
MS9/9+26ECU-17
MS9/9+30ECU-17
MS9/9+16 MS9/9+20
ECU-12 ECU-12
16 20
SAT 5–20 dB
TERR 12 / 26 dB
MS9/9+26 MS9/9+30
ECU-17 ECU-17
26 30
SAT 5–20 dB
TERR 20 / 35 dB
SAT 5 dB, TERR 6 dB
