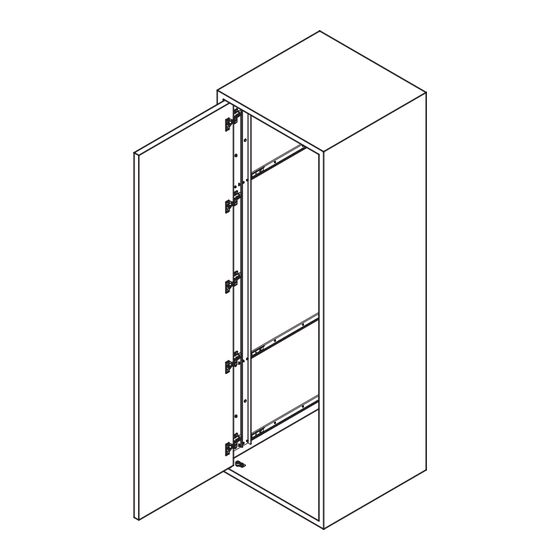

Pocket door system (inset) soft closing

Advertisement

Quick Links

Installation Manual
ALT-ST20-D360
POCKET DOOR SYSTEM (INSET) SOFT CLOSING
・ Before installation, please read!
・ For the most accuracy, please use metric
measurements as they were converted to imperial mea-
surements for reference.
・ The illustration is illustrated at the left hanging source.

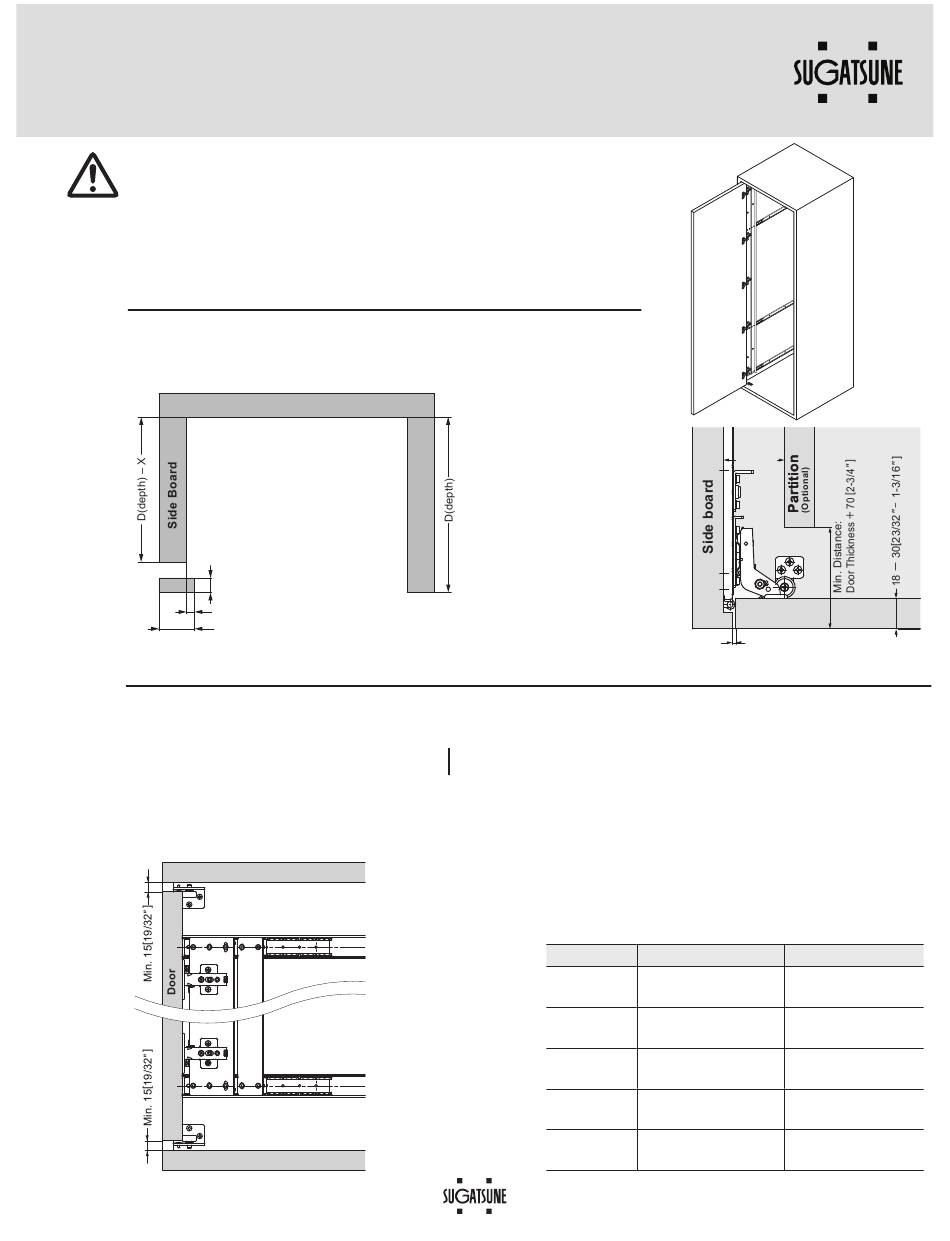

Prepare the front frame of the cabinet
On the hinge side of the cabinet, add a front stile to minimize the visibility of the hardware
and to provide a clean, symmetrical reveal.
The dimensions of the left and right side boards are different.
Prepare the door
・Door Width = Cabinet Opening Width – 15[9/16" ]
where 15 mm[19/32" ] = 9[11/32" ] +
・Door Height = Cabinet Opening Height – 10[13/32" ] 10[13/32" ] =5[3/16" ] +
NOTE: If Optional Side Mounting Bracket is used;
Door Height = Cabinet Opening Height - 15[19/32" ] ×2
Top board
Bottom board
1
1
www.sugatsune.com
X=Max. Door Thickness ‒ 14 [9/16" ]
9[11/32" ]
Thickness of Side Board + 9[11/32" ]
3[1/8" ] +
Stile Width
Left Gap
3[1/8" ]
Right Gap
5[3/16" ]
Top Gap
Bottom Gap
Rail Size
16
19
22
24
28
(800) 562-5267
60
[ 2-3/8" ]
Door
Gap: 3 [
1/8" ]
Door Storing
Cabinet Depth
269 [10-19/32" ]
412 [16-7/32" ]
+ Door Thickness
+ Door Thickness
345 [13-19/32" ]
488 [19-7/32" ]
+ Door Thickness
+ Door Thickness
421 [16-9/16" ]
564 [22-7/32" ]
+ Door Thickness
+ Door Thickness
472 [18-19/32" ]
615 [24-7/32" ]
+ Door Thickness
+ Door Thickness
574 [22-19/32" ]
717 [28-7/32" ]
+ Door Thickness
+ Door Thickness

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALT-ST20-D360LL-28 and is the answer not in the manual?

Questions and answers

Summary of Contents for SUGATSUNE ALT-ST20-D360LL-28

  • Page 1 421 [16-9/16" ] 564 [22-7/32" ] + Door Thickness + Door Thickness 472 [18-19/32" ] 615 [24-7/32" ] + Door Thickness + Door Thickness 574 [22-19/32" ] 717 [28-7/32" ] + Door Thickness + Door Thickness Bottom board www.sugatsune.com (800) 562-5267...
  • Page 2 Do not cut rails. Rail sizes (inches) include 16, 19, 22, 24, and 28. This catch holds the door at the pulled-out position. Be sure to mount it on the uppermost and lower slide rails (For details, see P.4 www.sugatsune.com (800) 562-5267...
  • Page 3 Section a-a Min. 60 [2‒3/8" ] ⑨ Side mount bracket (horizontal/vertical use / optional) Bracket ⑫ Item Name Note: Slider should always be installed ALT - BR towards front of the cabinet. Bottom board www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
  • Page 4 Fix the top slide in place with the provided screws. Screws: Bind head tapping screw 3.5×15 ⑭Bind head tapping screw 3.5×15 Caution positioned to not interfere with slides ❷ Temporarily fix front and back sides for all other slides. ⑦ www.sugatsune.com (800) 562-5267...
  • Page 5 L Type LL Type (4 slide rails) (4 slide rails) Door Thickness + 9 [ 11/32" ] Door Thickness + 9 [ 11/32" ] Cabinet Cabinet Opening Opening Center of Cabinet Center of Cabinet www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
  • Page 6 Tighten the part (both ends) Fasten all the parts (near center) Move the connecting plate from the front to the back, adjusting Screws: Bind head tapping screw 3.5×15 all the screw positions so that it moves smoothly www.sugatsune.com (800) 562-5267...
  • Page 7 L Type Hinge Placement Hinge Placement (5 Hinges) LL Type 28[1-3/32" ] φ40 [ 1-9/16" ] Depth:15[19/32" ] 28[1-3/32" ] φ40 [ 1-9/16" ] Depth:15[19/32" ] Center of Door Height Center of Door Height www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
  • Page 8 *When there are adjustment bolts at top and bottom, align their positions. Heavy door Before adjustment After adjustment ② Connecting plate ② Connecting plate Tighten all the screws once the door is in the desired position. ⑫ Adjustment bolt www.sugatsune.com (800) 562-5267...
  • Page 9 <1> Depth adjustment screw < 1 < 3 > > < 2 > <3> Horizontal adjustment screw SUGATSUNE KOGYO CO., LTD. SUGATSUNE AMERICA, INC. SUGATSUNE SHANGHAI CO., LTD. SUGATSUNE KOGYO INDIA California, USA PRIVATE LIMITED Tokyo, JAPAN Shanghai, CHINA Phone: +81 3 3866 2260...
