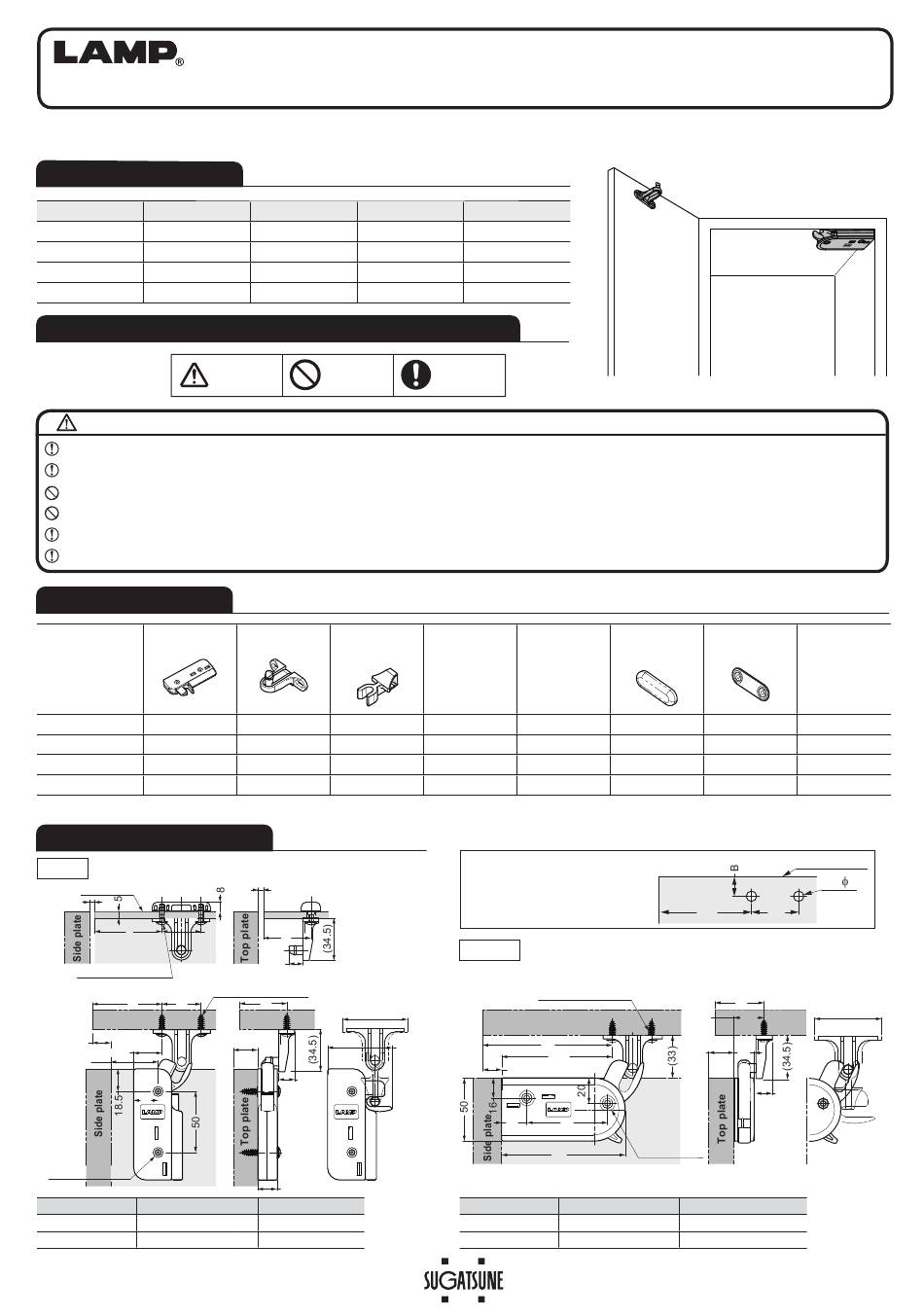

SUGATSUNE LAMP DC Series Installation Manual

DAMPER CATCH DC SERIES INSTALLATION MANUAL
(DC-90, DC-90G, DC100, DC-100G)
Thank you for using our product. Before installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
DOOR SPECIFICATION
Parts No. Max. Door Width Max. Door Height Glass thickness Door Weight
D C - 9 0 4 5 0
D C - 9 0 G 4 5 0
D C -10 0 6 0 0
D C -10 0 G 6 0 0
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
Meaning of symbols
Caution:
If not followed, injury or damage may result.
The product is designed for indoor use.
Temperature range: 10 to 40°C, Humidity: less than 90%
Do not use it for any purpose other than cabinet.
Do not use excessive force to the damper. It may cause damage.
This product is a part for furniture. After installation, please check the function and safety of the final product.
Use the hinges without catch.
COMPONENT PARTS

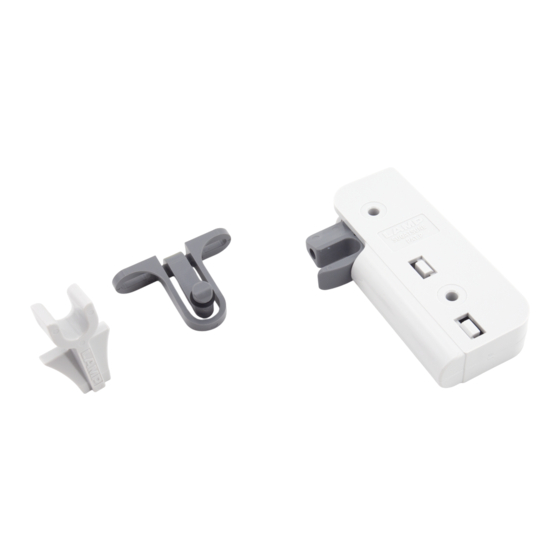

①Main body
Name
/
Item No.
DC-90 1 pc
DC-90G 1 pc
DC-100 1 pc
DC-100G 1 pc
※for wood top plate (20mm thick)
INSTALLATION DRAWING
DC-90
For inset door (glass)
Glass door
Door endgap
A 32
Trigger fix screw ⑧
For overlay door (wood)
A
32
Wood door
Overlay amount
22〜24
C
20
Main unit fix screw④
Mount position
A
Inset door C− door end gap ＋3
overlay door C＋ overlay ＋3
C:100 to 200 mm
600
6 0 0
8 0 0
8 0 0
Warning
Prohibited
Caution
( The main body shows DC-90 type and DC90G type. ）
②Trigger ③Trigger
positioning jig
1 pc 1 pc
1 pc 1 pc
1 pc 1 pc
1 pc 1 pc
Door endgap
B
11.5
Trigger fix screw ⑤
B
Adjust ±3
Wood door
20
13
16
B
24 − door end gap
overlay ＋ 24
— 1 − 4kg
5 1 − 4kg
— 1.5 − 7kg
5 1.5 − 7kg
Required
④Main unit fix screw ⑤Trigger fix screw
Truss head tapping Truss head tapping
screw 4×30※ screw 4×16
2 pcs 2 pcs
2 pcs
̶
2 pcs 2 pcs
2 pcs
̶
■GLASS PROCESS DIMENSIONS
(DC-90G AND DC-100G)
Prepare hole as shown right.
For overlay door (wood)
DC-100
（For an inset door, refer to the upper left figure.）
Trigger fix screw ⑤
Wood door
A
(52.7)
(88)
Overlay amount
20 64
98
Glass process dimensions
Inset door 88−door end gap
overlay door 88＋overlay amount
⑥Face plate
⑦Spacer
̶ ̶
1 pc 1 pc
̶ ̶
1 pc 1 pc
Door end
A 32
B
(24)
Wood door
20 16
13
Main unit fix screw④
A B
24−door end gap
Overlay amount＋24
⑧Trigger fix screw
Truss head scew
M4×12
̶
2 pcs
̶
2 pcs
Outside of door
× 7
2
Adjust ±3
1
