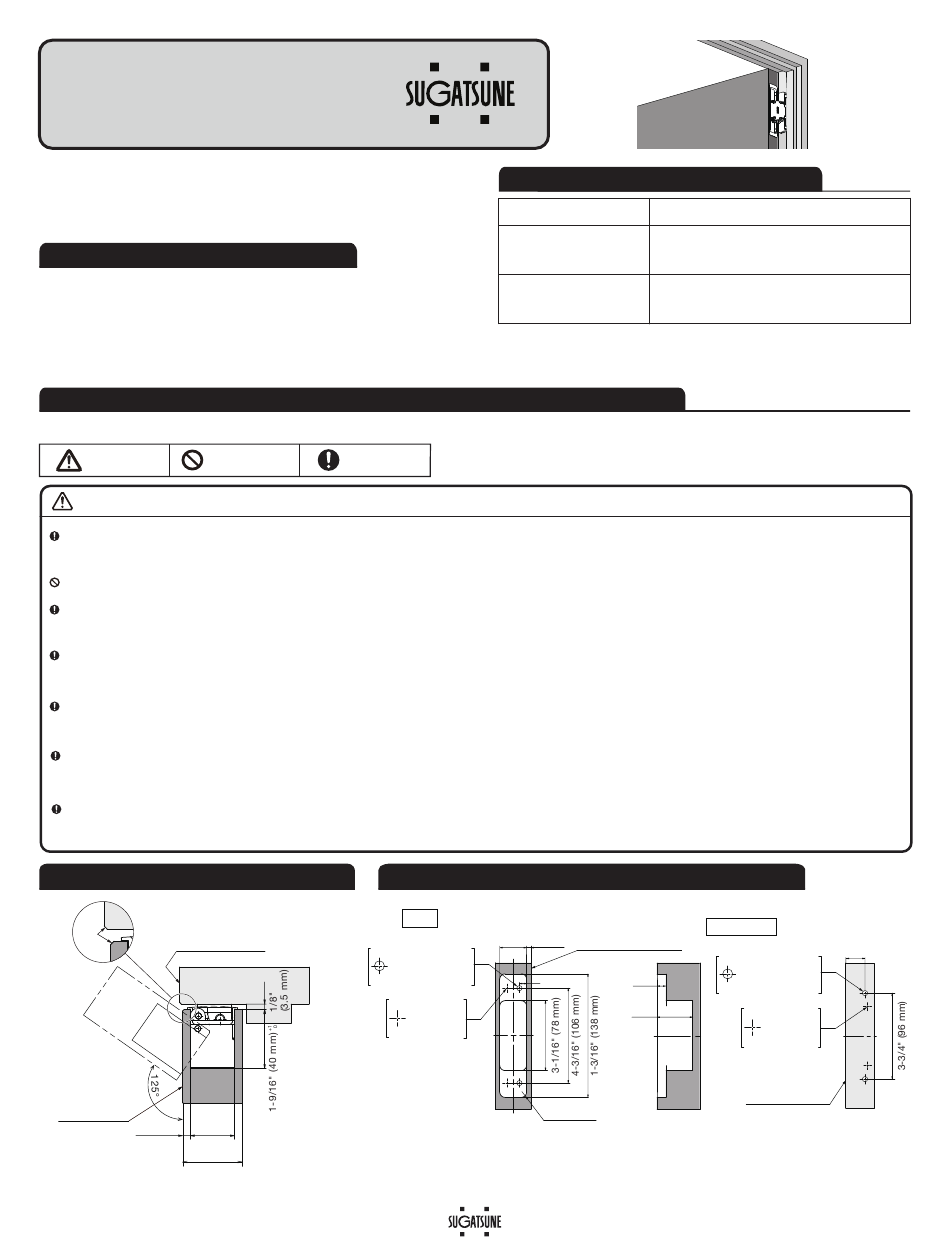

SUGATSUNE HES2S-140-A125 Installation Manual

HES2S-140-A125

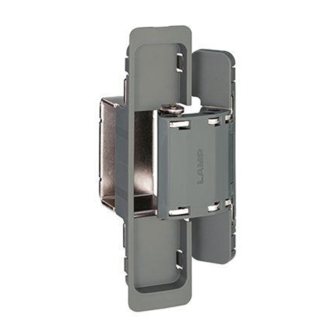

SURFACE MOUNTED CONCEALED HINGE
Installation Manual
Thank you for using our product. Before installation,
please read this manual thoroughly to ensure correct installation.
Please keep this manual handy for future reference.

ABOUT THE PRODUCT

Surface mount on the door frame enables easy installation
●
(no frame side mortising).
Allows vertical, horizontal and depth adjustment.
●
The opening angle is 125°.
●
Durability: successfully passed 300,000 open/close private cycles.
●

FOR YOUR SAFETY AND CORRECT INSTALLATION

Meaning of symbols
Warning
Prohibited
Caution
Caution:
If not followed, injury or damage may result.
Install on a door frame that can withstand the weight and impact of opening and closing the door. Be sure to use the
provided screws and tighten them securely. If the mounting strength is insufficient, the door may malfunction and cause injury.
Do not use this product for any other purpose, or with doors that are outside the specifications of this manual.
If using a door closer, certain types may cause the door to not close properly or cause damage.
Please check the compatibility of the closer before use.
Follow the specified dimensions, specifications, and alignment of the door and frame.
Warping, tilting or twisting of the frame or door may cause operation failure.
This product is a part for architectural fittings. After installation, please check the function and safety of the final
product. Please inform the end user how to use the product safely.
Make sure to check the screws for slack at regular intervals
(one month from first usage, half a year, and then one time every year is recommended).
A door stopper must be installed to assure open position does not exceed 125°.
Failure to do so will result in damage or breaking of the hinges, and the door may fall.
INSTALLATION DRAWING (EXAMPLE)
Reference surface
C1
of door frame
Door frame
Door exterior
Door
(Reference
surface of door)
Max. 3/16" (5 mm) 1-3/16"
(30 mm)
Min. 1-1/2" (38 mm)
Left-hand opening shown. The right-handed opening is symmetrical.
