1
Chassis views and technical
specifications

Chassis views

The following figures are for illustration only. The label Hard Disk on the front panel refers to a drive
slot.
MSR3610-I-DP/MSR3610-I-XS/MSR3610-IE-DP/MSR3610-
IE-ES/MSR3610-IE-XS

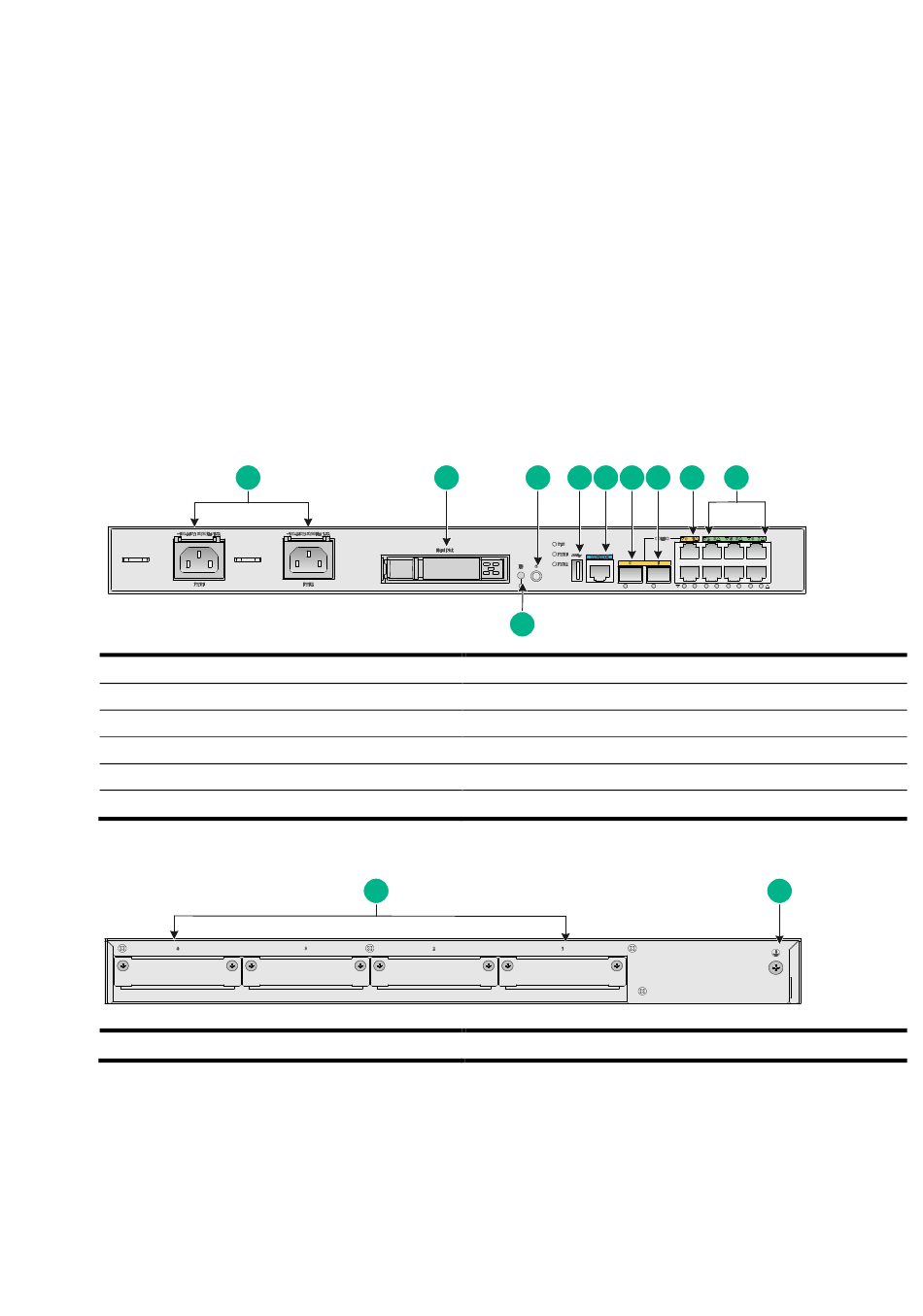

Figure1-1 Front panel
(1) AC power receptacles PWR1 and PWR2
(3) Power button/LED
(5) Console port (CONSOLE)
(7) Ethernet fiber port SFP1 (combo interface)
(8) Ethernet copper ports GE0 and GE1 (combo interfaces)
(9) Ethernet copper ports GE2 to GE7
Figure1-2 Rear panel
(1) SIC interface module slots 1 to 4
1
1
2 3 4 5
10
(2) Drive slot
(4) USB port
(6) Ethernet fiber port SFP0 (combo interface)
(10) Drive button (HD)
(2) Grounding screw
1-1
6 7 8 9
2
