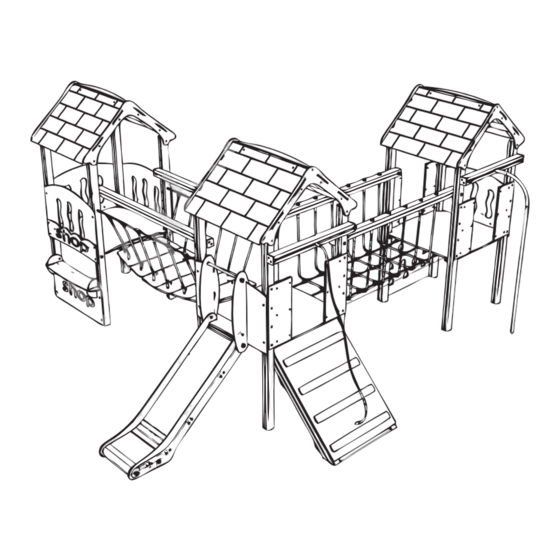

- Page 1 All manuals and user guides at all-guides.com ZENITH THREE Installation Instructions REF: Z103 - ZENITH THREE pg 1 of 22...
-
Page 2: Parts Required
(90 x 90 CLATTERBRIDGE FLOOR) (90 x 90 STANDARD FLOOR) (PRE-ASSEMBLED PANEL) (ZENITH TOWERS STANDARD FLOOR 90x90) (HEX CLIMBER) (RAMP ASSEMBLY) (HEXBOARD RAMP) (RAMP ROPE) LEFT (SLIDE SIDE) RIGHT (SLIDE METAL FRAME) (SLIDE SIDE) REF: Z103 - ZENITH THREE pg 2 of 22... - Page 3 (PLAYTEC BARRIER PANEL - FOR FLAT SIDE TIMBER) (SLIDE CLIPS) (PLAYTEC ASSEMBLED “SHOP” PANEL) x1 PAIR (PLAYTEC SHOP BOTTOM PANEL) (PLAYTEC SHOP BRACKET - PAIR A) x1 PAIR (PLAYTEC SHOP SHELF PANEL) (PLAYTEC SHOP BRACKET - PAIR B) REF: Z103 - ZENITH THREE pg 3 of 22...
- Page 4 PARTS required (FIREFIGHTERS POLE AND BRACKET) (NET TUNNEL) (CLATTERBRIDGE) (FM80‘ Brass screws’) (M12 x 200SQUARE CUP HEX BOLTS) (FM40‘ Brass screws’) (M12 x 150 SQUARE CUP HEX BOLTS) (M12 ´NYLOC´) (Covered Ends) REF: Z103 - ZENITH THREE pg 4 of 22...
- Page 5 (FM80 ‘ Brass screws’) (FRONT ROOF) (BACK ROOF) PARTS required (RUSTIC ROOF ) (HALF ROUND TIMBERS) x192 (FM80 ‘ Brass screws’) x6 LEFT (TOP RUSTIC ROOF) (SIDES RUSTIC ROOF) x6 RIGHT (SIDES RUSTIC ROOF) REF: Z103 - ZENITH THREE pg 5 of 22...
-
Page 6: Tools Required
All manuals and user guides at all-guides.com TIMBERS required Z103g Z103f Z103g Z103f Z103k Z103l Z103e Z103e Z103e Z103c Z103j Z103i Z103c Z103h Z103d Z103c Z103b Z103a TOOLS required REF: Z103 - ZENITH THREE pg 6 of 22... -
Page 7: Foundation Details
All manuals and user guides at all-guides.com Foundation Details CLIMBER NET TUNNEL CLATTERBRIDGE RAMP SHOP FRONT SLIDE FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil REF: Z103 - ZENITH THREE pg 7 of 22... -
Page 8: Surfacing Details
All manuals and user guides at all-guides.com Surfacing Details = MINIMUM SPACE = SURFACE AREA 4.75m 1.70m 3.92m 2.50m REF: Z103 - ZENITH THREE pg 8 of 22... - Page 9 Z103d Z103c Z103b Z103a ATTACH METAL FLOOR FRAMES AND HEX FLOORS Using 4x150mm M12 SQUARE CUP HEX BOLTS/ 4x Nylocs / 4x RED CAPS (PER FLOOR) ENSURE: FLOOR CURVE FACES CLATTERBRIDGE REF: Z103 - ZENITH THREE pg 9 of 22...
-
Page 10: Installation Instructions
Using 2x @200mm M12 SQUARE CUP HEX BOLTS / 2x NYLOCS / 2x RED CAPS / 10x FM80 Brass Screws RAMP HOLE - 148mm from the top of the floor - 850mm from the ground -1412mm from the top Z103d Z103c Z103b Z103a REF: Z103 - ZENITH THREE pg 10 of 22... - Page 11 2x NYLOCS / 2x COVERED ENDS - RAMP ROPE Z103l Z103b Z103c Z103a Attach the SLIDE to TIMBERS Z103a/c and the HEXBOARD FLOOR Using 3x ‘FM40 Brass Screws’ / 2x ‘FM80 Brass Screws’ Z103c Z103a REF: Z103 - ZENITH THREE pg 11 of 22...
- Page 12 ATTACH Z103k USING 2 X 200mm CUP SQUARE BOLTS / 2 X M12 NYLOCS / 2 X COVERED ENDS/ ATTACH POLE INTO METAL BRACKET - TIGHTEN INTO PLACE AND FIX TO MIDDLE OF TIMBER USING FM80 BRASS SCREWS. Z103i Z103h Z103k REF: Z103 - ZENITH THREE pg 12 of 22...
- Page 13 Fig2 - ATTACH ROPES USING 4 X M12 NYLOCS / 4 X COVERED ENDS Fig3 - ATTACH CLATTERBRIDE CHAIN USING 4 X M12 NYLOCS / 4 X COVERED ENDS FIG1 FIG2 REPEAT FOR OTHER SIDE FIG1 FIG1 FIG2 FIG2 FIG3 FIG3 FIG3 REF: Z103 - ZENITH THREE pg 13 of 22...
- Page 14 All manuals and user guides at all-guides.com Installation Instructions Installation Instructions ATTACH 3 X SIDE PANELS USING FM80 BRASS WOOD SCREWS ATTACH RAMP BARRIER SIDES TO Z103a/b TIMBERS USING FM80 BRASS WOOD SCREWS REF: Z103 - ZENITH THREE pg 14 of 22...
- Page 15 ATTACH HEXBOARD CLIMBER TO Z103j/e TIMBERS USING 4 X FM80 BRASS WOOD SCREWS Z103j Z103e Z103h Z103i ATTACH BARRIER PANELS to CLIMBER and FIREFIGHTERS POLE USING 16 X FM80 BRASS WOOD SCREWS REF: Z103 - ZENITH THREE pg 15 of 22...
- Page 16 Fig2 - ATTACH ROPES USING M12 NYLOCS / COVERED ENDS Fig3 - ATTACH NET TUNNEL THREAD BAR USING 6 X M12 NYLOCS / 6 X COVERED ENDS FIG1 FIG2 FIG1 FIG2 FIG1 FIG1 FIG2 FIG1 FIG3 FIG3 REF: Z103 - ZENITH THREE pg 16 of 22...
- Page 17 Installation Instructions Installation Instructions ATTACH SHOP FRONT BOTTOM PANEL TO TIMBERS Z103c and Z103e USING FM80 BRASS WOOD SCREWS Z103e Z103c Attach the PLAYTEC SHOP ‘PAIR A’ BRACKETS to the BOTTOM PANEL REF: Z103 - ZENITH THREE pg 17 of 22...
- Page 18 All manuals and user guides at all-guides.com Installation Instructions Attach the SHOP SHELF PANEL to ‘PAIR A’ BRACKETS Attach the ‘PAIR B’ BRACKETS to SHELF PANEL and TIMBERS USING FM80 BRASS WOOD SCREWS REF: Z103 - ZENITH THREE pg 18 of 22...
- Page 19 All manuals and user guides at all-guides.com Installation Instructions Attach the SHOP PANEL to TIMBERS (PRE-ASSEMBLED) Using ‘Brass Screws’ PLEASE ENSURE TOP OF PRE-ASSEMBLED SHOP PANEL IS IN LINE WITH OTHER STANDARD PANELS ON THE TOWER REF: Z103 - ZENITH THREE pg 19 of 22...
- Page 20 All manuals and user guides at all-guides.com Installation Instructions Attach the roof Parts (NORMAL ROOF) Using ‘TORKTAINERS’ and ‘Brass Screws’ REF: Z103 - ZENITH THREE pg 20 of 22...
- Page 21 All manuals and user guides at all-guides.com Installation Instructions Attach the roof Parts (RUSTIC ROOF) Using ‘Brass Screws’ QTYx2 Both Sides REF: Z103 - ZENITH THREE pg 21 of 22...
-
Page 22: Additional Dimensions
All manuals and user guides at all-guides.com Additional Dimensions 5.00m 5.88m REF: Z103 - ZENITH THREE pg 22 of 22...
