Summary of Contents for Creative Play AC102

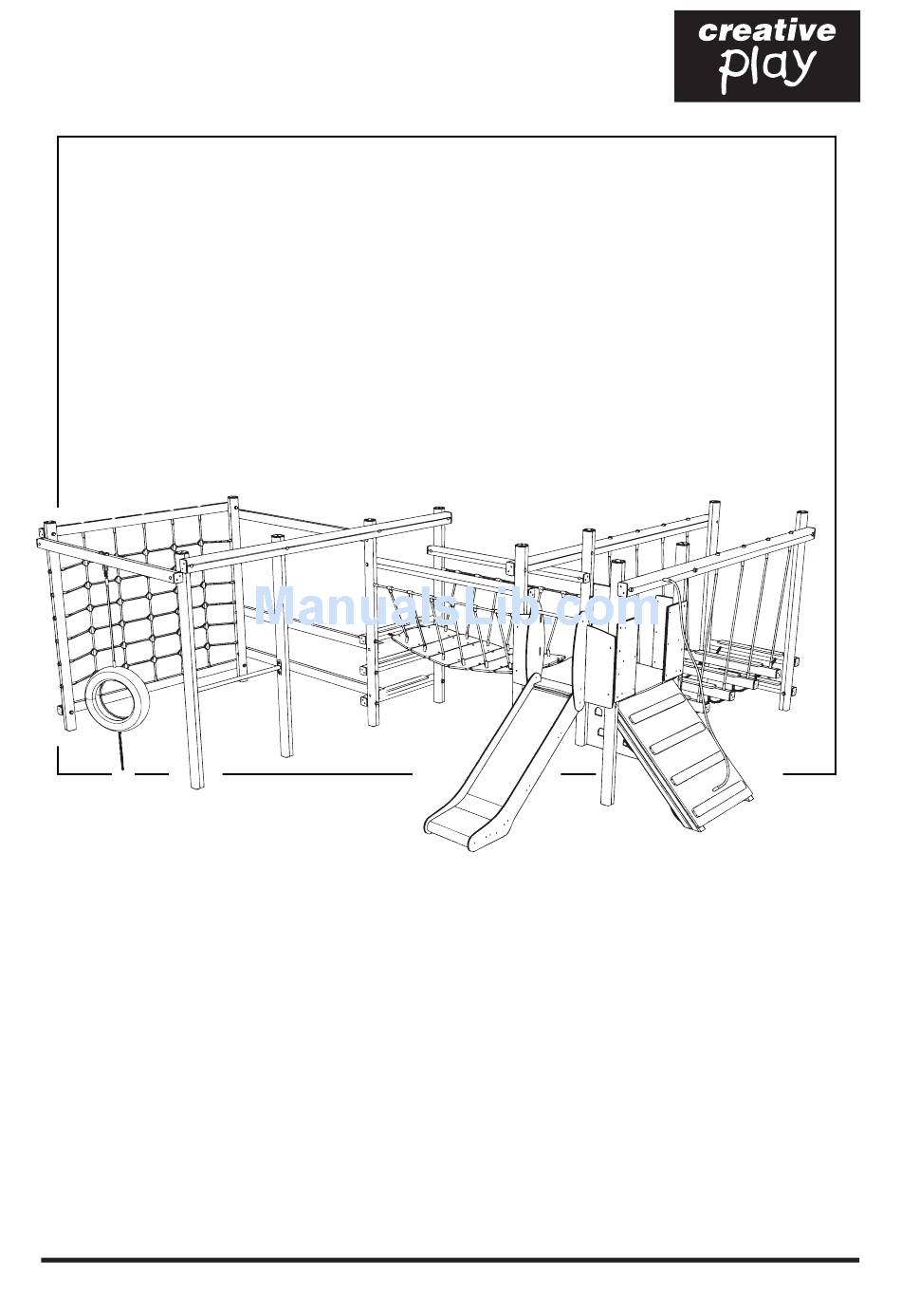

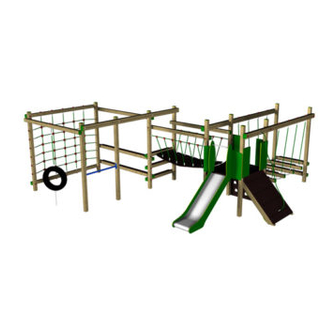

- Page 1 TRENT ACTIVITY CENTRE Installation Instructions REF: AC102 - TRENT ACTIVITY CENTRE pg 1 of 19...
-
Page 2: Parts Required
(Log Walk Pre-assembly) LEFT (CLATTERBRIDGE) (SLIDE SIDE) RIGHT (SLIDE SIDE) (1m SLIDE) (CLATTERBRIDGE 90 x 90 FLOOR) (1m CLIMBING WALL) (ZENITH STANDARD FLOOR 90x90) (FLAT SIDES) (ROPE CLIMB) (GROOVED SIDES) (RAMP ROPE) REF: AC102 - TRENT ACTIVITY CENTRE pg 2 of 19... - Page 3 (M12 x 150 Square Cup HEX bolt) (small end caps) (M12 x 200 Square Cup HEX bolt) (FM40 ‘Brass screws’) (FM80 ‘Brass screws’) (M12 ‘NYLOC’) (M12 x 80 Eyebolt) (M12 x 130 Eyebolt) (Quicklink) (D-Shackle ) REF: AC102 - TRENT ACTIVITY CENTRE pg 3 of 19...
-
Page 4: Tools Required
90x90 3000 AC101q 90x90 2400 AC102c 90x90 3000 AC102a 90x90 2400 AC101h 90x90 3000 AC101s 120x90 3455 AC101i 90x90 3000 AC101t 120x90 3600 AC101j 90x90 AC101v 120x90 3600 TOOLS required REF: AC102 - TRENT ACTIVITY CENTRE pg 4 of 19... -
Page 5: Foundation Details
Foundation Details FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil 1023 RAMP CLATTERBRIDGE CROSSING SLIDE TYRE REF: AC102 - TRENT ACTIVITY CENTRE pg 5 of 19... -
Page 6: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: AC102 - TRENT ACTIVITY CENTRE pg 6 of 19... - Page 7 AC102c AC102d Attach the floor to the timbers AC101b/c and place the Hexboard on top Using 4x @150mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 7 of 19...
- Page 8 Using 6x @200mm M12 SQUARE CUP HEX BOLTS / 6x NYLOCS / 6x RED CAPS Attach the timbers AC101l/k to the TIMBERS AC101a Using 4x @200mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 8 of 19...
- Page 9 Attach 800mm x 90mm Slats to 210mm from AC102d Attach the TIMBER AC101s to the TIMBERS AC101d/i/h, AC102d Using 4x @200mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS AC102d REF: AC102 - TRENT ACTIVITY CENTRE pg 9 of 19...
- Page 10 AC102a AC102a AC102d AC102b AC102c Attach the TIMBER AC101p to the TIMBERS AC102b/c Using 4x @200mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS AC102b AC102c REF: AC102 - TRENT ACTIVITY CENTRE pg 10 of 19...
- Page 11 Using 2x @200mm M12 SQUARE CUP HEX BOLTS / 2x NYLOCS / 2x RED CAPS / 10x FM80 Brass Screws RAMP HOLE - 148mm from the top of the floor - 850mm from the ground -1412mm from the top REF: AC102 - TRENT ACTIVITY CENTRE pg 11 of 19...
- Page 12 Attach the EYEBOLTS to the TIMBERS AC101l/m Using 4x @130mm M12 EYEBOLT / 4x NYLOCS / 4x RED CAPS AC102d Attach the TYRES to the SWING HANGERS Using 1x D-SHACKLE / 4x M8 Plastic covers REF: AC102 - TRENT ACTIVITY CENTRE pg 12 of 19...
- Page 13 Attach the CLATTERBRIDGE to the EYEBOLTS , METAL FLOOR and to the TIMBERS AC101b/d, AC102d Using (2x @80mm) (2x @130mm) M12 EYEBOLT/ 6x NYLOCS / 6x RED CAPS / 4 QUICKLINKS AC102d REF: AC102 - TRENT ACTIVITY CENTRE pg 13 of 19...
- Page 14 Attach the TIMBERS AC101j and 1m CLIMBING HEXBOARD to AC101b/c Using 14x FM80 ‘Brass Screws’ Attach the EYEBOLTS to AC101j and HEXBOARD Using 2x @130mm M12 EYEBOLT / 2x NYLOCS / 2x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 14 of 19...
- Page 15 Installation Instructions Attach the LOG WALK to the EYEBOLTS and AC101t/v Using 4x QUICKLINK / 8x NYLOCS / 8x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 15 of 19...
- Page 16 Attach STANDARD BAR to the TIMBERS AC101h/i Using 4x FM80 ‘Brass Screws’ / 4x Small end caps Attach the RAMP ROPE to the ramp and AC101v Using 2x NYLOCS / 2x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 16 of 19...
- Page 17 Attach the SLIDE to the HEXBOARD FLOOR Using 3x ‘FM40 Brass Screws’ / 2x ‘FM80 Brass Screws’ Insert the SLIDE SIDES to the SLIDE and to the timbers AC101b/c 4x ‘FM80 Brass Screws’ REF: AC102 - TRENT ACTIVITY CENTRE pg 17 of 19...
- Page 18 Attach the RAMP and LOG WALK SIDE PANELS Using 14x ‘FM80 Brass Screws’ RAMP SIDE PANEL (4x Brass Screw holes) each panel LOG WALK SIDE PANEL (3x Brass Screw holes) each panel REF: AC102 - TRENT ACTIVITY CENTRE pg 18 of 19...
-
Page 19: Additional Dimensions
Additional Dimensions REF: AC102 - TRENT ACTIVITY CENTRE pg 19 of 19...
