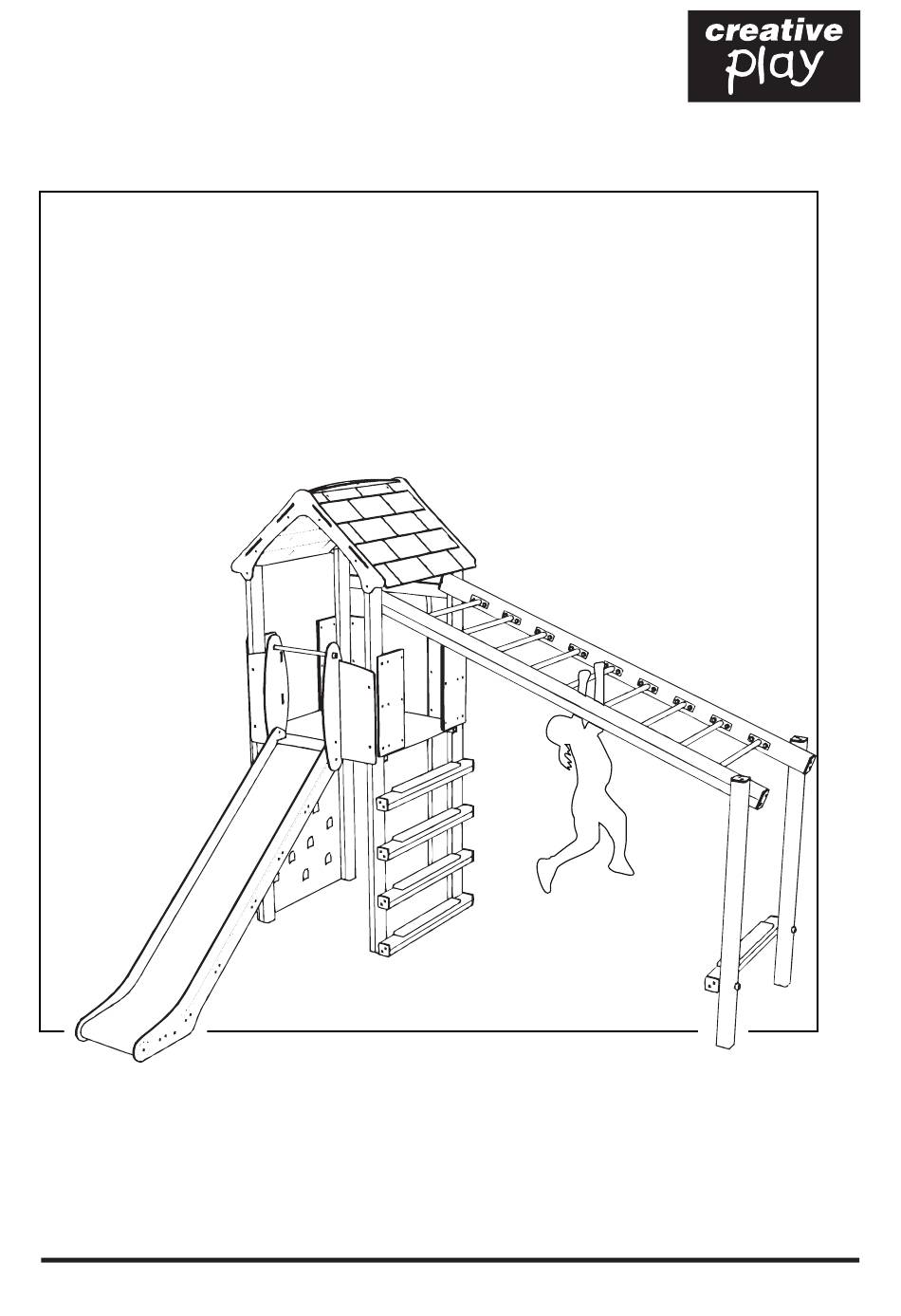

- Page 1 ZENITH ONE MULTI LADDER Installation Instructions REF: Z108 - ZENITH ONE MULTI LADDER pg 1 of 15...
- Page 2 PARTS required ( PLAYTEC ) x1 LEFT (SLIDE SIDE) x1 RIGHT (SLIDE SIDE) (1.5m SLIDE) (SIDE PANEL) PARTS required ( HEXBOARD ) (90 x 90 FLOOR) (1.5m CLIMBING WALL) REF: Z108 - ZENITH ONE MULTI LADDER pg 2 of 15...
- Page 3 (ZENITH TOWERS STANDARD FLOOR 90x90) (FIREMAN’S POLE) (FM40 ‘ Brass screws’) (M12 x 160 SQUARE CUP HEX BOLTS) (FM80 ‘ Brass screws’) (M12 x 200 SQUARE CUP HEX BOLTS) (M12 ´NYLOC´) (End Caps) REF: Z108 - ZENITH ONE MULTI LADDER pg 3 of 15...
- Page 4 (FRONT ROOF) (BACK ROOF) PARTS required (RUSTIC ROOF ) (HALF ROUND TIMBERS) (FM80 ‘ Brass screws’) x2 LEFT (SIDES RUSTIC ROOF) (TOP RUSTIC ROOF) x2 RIGHT (SIDES RUSTIC ROOF) REF: Z108 - ZENITH ONE MULTI LADDER pg 4 of 15...
-
Page 5: Tools Required
PARTS required (TIMBERS) ZML2 ZML5P ZML6 ZML6 ZML7 ZML5 x4 ZML5 ZML1 ZML4 ZML3 ZML7 TOOLS required REF: Z108 - ZENITH ONE MULTI LADDER pg 5 of 15... -
Page 6: Foundation Details
Foundation Details Fireman Pole 1.5m Slide FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil REF: Z108 - ZENITH ONE MULTI LADDER pg 6 of 15... -
Page 7: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: Z108 - ZENITH ONE MULTI LADDER pg 7 of 15... - Page 8 ZML7 ZML3 ZML2 ZML4 ZML7 Attach the floor to the timbers ZML1/2/3/4 and place the Hexboard on top Using SQUARE CUP HEX BOLTS/NUTS / RED CAPS ZML1 ZML3 ZML4 REF: Z108 - ZENITH ONE MULTI LADDER pg 8 of 15...
- Page 9 Using SQUARE CUP HEX BOLTS/NUTS / RED CAPS ZML5P ZML1 ZML3 ZML7 ZML4 ZML7 Attach the Standard Bars to the timbers ZML6 Using ‘Brass Screws’ and SMALL CAPS 1.5m Tower Side REF: Z108 - ZENITH ONE MULTI LADDER pg 9 of 15...
- Page 10 Attach the Ladder to the timbers ZML3/4/7 Using SQUARE CUP HEX BOLTS/NUTS / RED CAPS ZML7 ZML3 ZML4 ZML7 Attach the 1.5m Climbing Wall to the timbers ZML1/2 Using ‘Brass Screws’ ZML1 ZML2 REF: Z108 - ZENITH ONE MULTI LADDER pg 10 of 15...
- Page 11 Installation Instructions Attach the Side Panels to the timbers ZML1/2/3/4 Using ‘Brass Screws’ Attach the Fireman’s Pole to the timber ZML5P Using ‘Brass Screws’ ZML5P REF: Z108 - ZENITH ONE MULTI LADDER pg 11 of 15...
- Page 12 Installation Instructions Attach the SLIDE to the HEXBOARD FLOOR Using ‘Brass Screws’ ZML2 ZML4 Insert the SLIDE SIDES to the SLIDE and to the timbers ZML2/4 Using ‘Brass Screws’ REF: Z108 - ZENITH ONE MULTI LADDER pg 12 of 15...
- Page 13 Installation Instructions Attach the roof Parts (NORMAL ROOF) Using ‘TORKTAINERS’ and ‘Brass Screws’ REF: Z108 - ZENITH ONE MULTI LADDER pg 13 of 15...
- Page 14 Installation Instructions Attach the roof Parts (RUSTIC ROOF) Using ‘Brass Screws’ QTYx2 Both Sides REF: Z108 - ZENITH ONE MULTI LADDER pg 14 of 15...
-
Page 15: Additional Dimensions
Additional Dimensions REF: Z108 - ZENITH ONE MULTI LADDER pg 15 of 15...
