Summary of Contents for Creative Play Waterplay Maxi

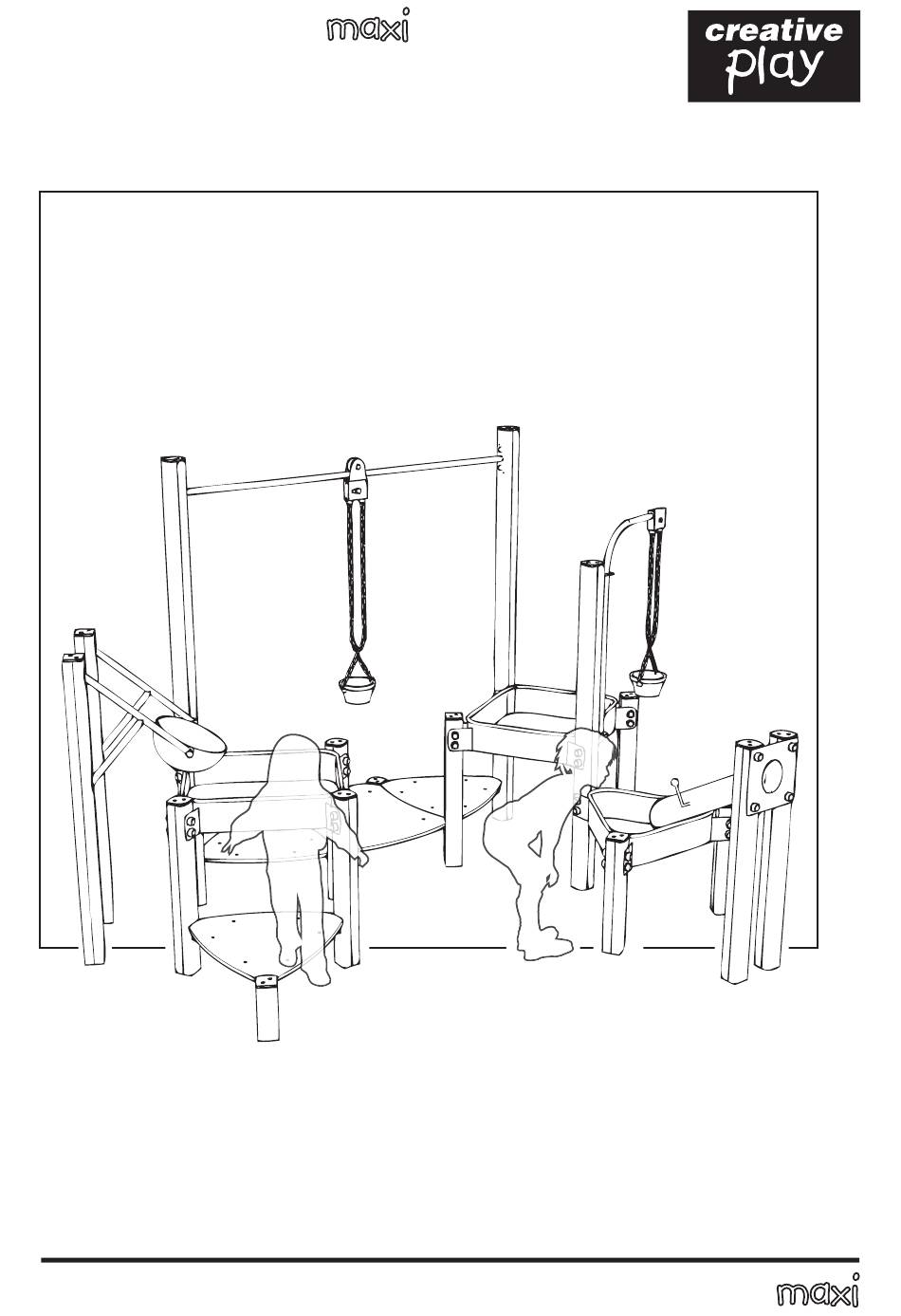

- Page 1 WATERPLAY Installation Instructions REF: WSP105 - WATERPLAY pg 1 of 14...
-
Page 2: Parts Required
PARTS required Square tray Triangle tray QTY x 2 QTY x 1 Square floor Triangle floor QTY x 1 QTY x 3 Sand Lift Rail QTY x 1 Sand Tube QTY x 1 Rotable Sand Lift Moveable Sand Lift Sand swing QTY x 1 QTY x 1 QTY x 1... - Page 3 PARTS required (FM80 ´Brass Screws´) (M12 120 square hex bolt) (QUCKLINK) x118 (Small caps RED) (M12 ´NYLOC´) (End Caps) PARTS required (TIMBERS) WSP5d WSP5f WSP5e WSP5g WSP5j WSP5h WSP5j WSP5c WSP5h WSP5i WSP5b WSP5i WSP5b WSP5a maxi pg 3 of 14 REF: WSP105 - WATERPLAY...
-
Page 4: Tools Required
TOOLS required maxi pg 4 of 14 REF: WSP105 - WATERPLAY... -
Page 5: Foundation Details
Foundation Details FINISHED GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE maxi pg 5 of 14 REF: WSP105 - WATERPLAY... -
Page 6: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA maxi pg 6 of 14 REF: WSP105 - WATERPLAY... - Page 7 Installation Instructions Installation Instructions Steps INDEX maxi pg 7 of 14 REF: WSP105 - WATERPLAY...
- Page 8 Installation Instructions Installation Instructions Attach the SQUARE TRAYS to the timbers WSP5 b/c/d - c/d/f/g Using SQUARE HEX BOLTS/NUTS / RED CAPS WSP5b WSP5f WSP5b WSP5g WSP5d WSP5c WSP5c WSP5d * Standard SQUARE TRAY Ilustration of fixings Attach the TRIANGLE TRAY to the timbers WSP5 h/g Using SQUARE HEX BOLTS/NUTS / RED CAPS WSP5h WSP5h...
- Page 9 Installation Instructions Installation Instructions Attach the TRIANGLE FLOOR to the timbers WSP5 a/b - c/d/e Using SQUARE HEX BOLTS/NUTS / RED CAPS WSP5b WSP5d WSP5b WSP5c * Standard TRIANGLE BASE Ilustration of fixings QTY x2 WSP5a WSP5e Attach the SQUARE FLOOR to the timbers WSP8c/e Using SQUARE HEX BOLTS/NUTS / RED CAPS * Standard SQUARE BASE WSP5c...
- Page 10 Installation Instructions Attach the ROTABLE SAND LIFT to the timber WSP1c Using SQUARE HEX BOLTS/NUTS / RED CAPS WSP5f QUICKLINK maxi pg 10 of 14 REF: WSP105 - WATERPLAY...
- Page 11 Installation Instructions Attach the SAND SWING to the timbers WSP5j Using ´Brass Screws´ and Small RED CAPS WSP5j WSP5j Attach the SAND LIFT RAIL Using ´Brass Screws´ and SMALL RED CAPS WSP5d WSP5h maxi pg 11 of 14 REF: WSP105 - WATERPLAY...
- Page 12 Installation Instructions Attach the MOVEABLE WATER LIFT to SAND LIFT RAIL Using SQUARE HEX BOLTS/NUTS / RED CAPS QUICKLINK maxi pg 12 of 14 REF: WSP105 - WATERPLAY...
- Page 13 Installation Instructions Attach the SAND TUBE to the timbers WSP5i Using ´Brass Screws´ and Small RED CAPS WSP5i WSP5i maxi pg 13 of 14 REF: WSP105 - WATERPLAY...
-
Page 14: Additional Dimensions
Additional Dimensions maxi pg 14 of 14 REF: WSP105 - WATERPLAY...
