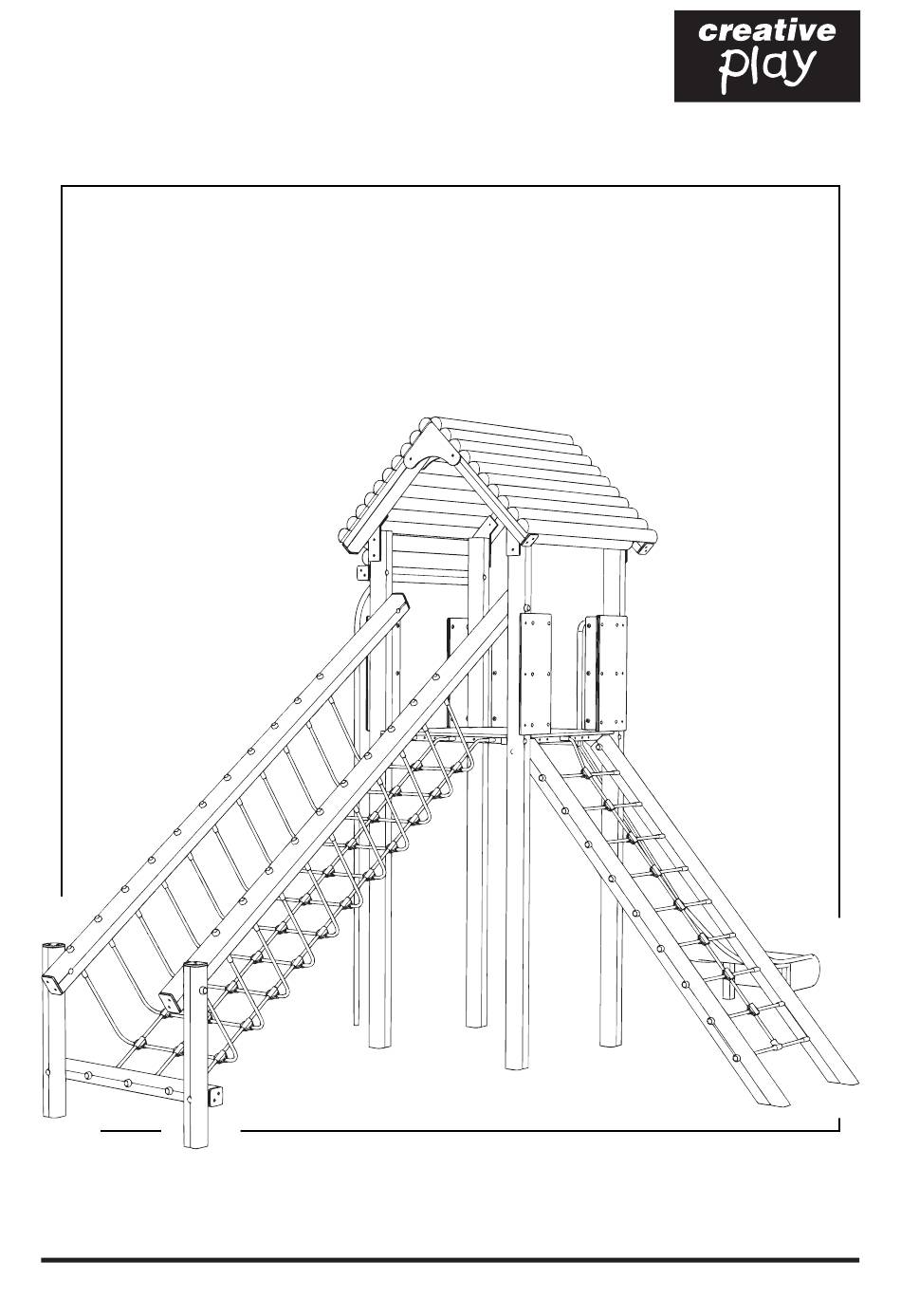

- Page 1 FORT LEAVENWORTH Installation Instructions REF: ZM102 - FORT LEAVENWORTH pg 1 of 14...
-
Page 2: Parts Required
PARTS required (FIREFIGHTERS POLE/NET SIDES) (SLIDE SIDES) (120x90 FLOOR) (2m Spiral SLIDE) (LEFT ROOF) (INCLINED NET) (RIGHT ROOF) (NET RAMP) (L ROOF) REF: ZM102 - FORT LEAVENWORTH pg 2 of 14... - Page 3 METAL required (Firefighters POLE RING) (METAL PLATE) (Firefighters Pole) TIMBERS required REF: ZM102 - FORT LEAVENWORTH pg 3 of 14...
-
Page 4: Tools Required
(M12 x 230 Square Cup HEX bolt) (M12 x 200 Square Cup HEX bolt) x119 (end caps) (FM80 ‘Brass screws’) (M12 x 150 Square Cup HEX bolt) (M12 ‘NYLOC’) TOOLS required REF: ZM102 - FORT LEAVENWORTH pg 4 of 14... -
Page 5: Foundation Details
Foundation Details FIG.1 350 Concrete + 150 Soil 600 Concrete + 150 Soil RAMP Firefighters Pole INCLINED 1025 2031 SLIDE 1000 REF: ZM102 - FORT LEAVENWORTH pg 5 of 14... -
Page 6: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: ZM102 - FORT LEAVENWORTH pg 6 of 14... - Page 7 Attach one plate on every side, with staggered heights (4 POST = 16PLATES) Attach the FLOOR to the Timbers ZM102b/c/d/e Using M12 - 4x 150mm square cup bolt / 4x NYLOCS / 4x COVERED END CAPS QTY x1 REF: ZM102 - FORT LEAVENWORTH pg 7 of 14...
- Page 8 Using M12 - 4x 150mm square cup bolt / 4x NYLOCS / 4x COVERED END CAPS Attach the Timber ZM102ad to the timbers WO101ae Using (2x 200mm) M12 - square cup bolt / 2x NYLOCS / 2x Covered end cap REF: ZM102 - FORT LEAVENWORTH pg 8 of 14...
- Page 9 Using M12 - 4x 200mm square cup bolt / 4x NYLOCS / 4x COVERED END CAPS Attach the RAMP NET and INCLINED NET to the timbers WO102f/g Using 47x NYLOCS / 47x Covered end cap REF: ZM102 - FORT LEAVENWORTH pg 9 of 14...
- Page 10 Attach the TIMBER WO102j to the TIMBERS WO102d/e Using (2x 200mm) M12 - square cup bolt / 2x NYLOCS / 2x Covered end cap Attach the FIREMAN’S POLE to the Timber WO102j Using 5 x FM80 ‘Brass Screws’ REF: ZM102 - FORT LEAVENWORTH pg 10 of 14...
- Page 11 Attach the SLIDE to the FLOOR and the SLIDE PLAYTEC to the timbers WO102c/e Using SLIDE FITTINGS and 6 x FM80 ‘Brass Screws’ Attach the 120 PLAYTEC SIDE to the Timber WO102j Using 5 x FM80 ‘Brass Screws’ REF: ZM102 - FORT LEAVENWORTH pg 11 of 14...
- Page 12 Installation Instructions Attach the HALF ROUNDS to the timbers WO102c/e ZM102-r2 Using SLIDE FITTINGS and 6 x FM80 ‘Brass Screws’ REF: ZM102 - FORT LEAVENWORTH pg 12 of 14...
- Page 13 Installation Instructions Attach the HALF ROUND to the TIMBER ZM101aa/ab ZM102-r1 Using 52x FM80 ‘Brass screws’ QTY x 1 Both Sides REF: ZM102 - FORT LEAVENWORTH pg 13 of 14...
-
Page 14: Additional Dimensions
Additional Dimensions REF: ZM102 - FORT LEAVENWORTH pg 14 of 14...
