FORT BELKNAP
Installation Instructions
REF: ZM101 - FORT BELKNAP
pg 1 of 30

Advertisement

loading
Need help?

Need help?

Do you have a question about the FORT BELKNAP and is the answer not in the manual?

Questions and answers

Summary of Contents for Creative Play FORT BELKNAP

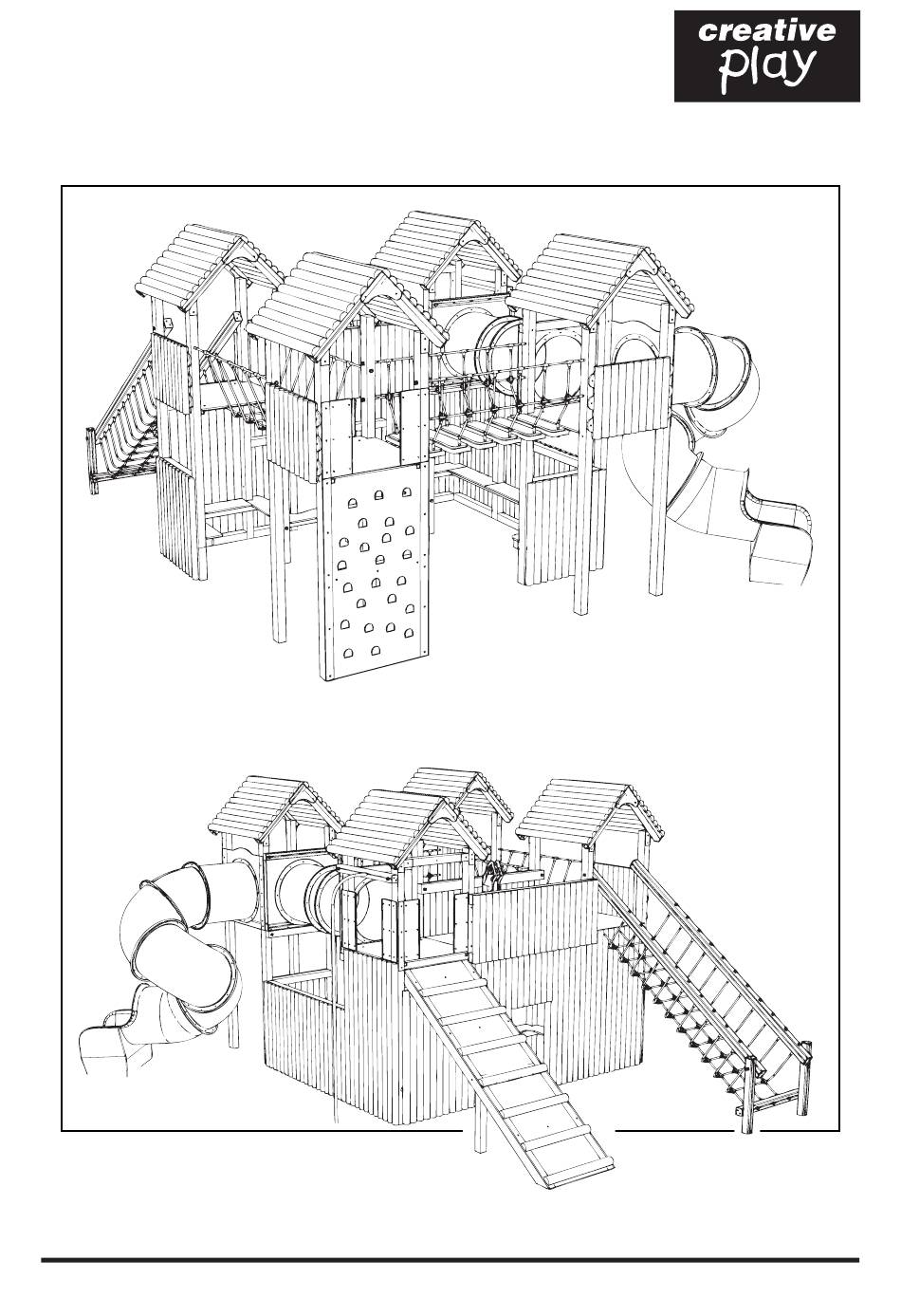

  • Page 1 FORT BELKNAP Installation Instructions REF: ZM101 - FORT BELKNAP pg 1 of 30...
  • Page 2: Parts Required

    PARTS required (Tunnel long Part) (Tunnel short Part) (2m Spiral SLIDE) (ROPE BRIDGE ) (RAMP ROPE ) (CLATTERBRIDGE 2.0) (NET RAMP) REF: ZM101 - FORT BELKNAP pg 2 of 30...
  • Page 3 (FIREFIGHTERS POLE SIDES) (TOP TALKING TUBE) (L ROOF) (PLAYTEC L) (PLAYTEC T) (LEFT ROOF) (RIGHT ROOF) (LEFT RAMP ROOF) (RIGHT RAMP ROOF) (BOTTOM TALKING TUBE) (TUNNEL COVER) (SLIDE COVER) (HALF RING) (CLIMBING WALL) REF: ZM101 - FORT BELKNAP pg 3 of 30...
  • Page 4 HEXBOARD required (BOTTOM RAMP) (TOP RAMP) (90 SIDE) (FRONT FLOOR) (MIDDLE SEAT) (120 SIDE) (120x90 FLOOR) (BACKLEFT SEAT) (Cover) (120x90 CLATTERBRIDGE FLOOR) (CENTER SEAT) (FRONT LEFT SEAT) (FRONT RIGHT SEAT) REF: ZM101 - FORT BELKNAP pg 4 of 30...
  • Page 5 ZM101y 120x90 2100 ZM101z 120x90 2100 ZM101-r6 ø100 1862 ZM101aq 120x90 3350 ZM101-r7 ø100 90 x 90 timber ZM101-r8 ø100 2000 ZM101-r9 ø100 1650 CODE TYPE SIZE QTY ZM101aa 90x90 1000 REF: ZM101 - FORT BELKNAP pg 5 of 30...
  • Page 6: Tools Required

    (M12 x 200 Square Cup HEX bolt) x900 (FM80 ‘Brass screws’) (M12 x 170 Square Cup HEX bolt) (7.5 x 50 ‘Brass screws’) (M12 ‘NYLOC’) (M12 x 150 Square Cup HEX bolt) TOOLS required REF: ZM101 - FORT BELKNAP pg 6 of 30...
  • Page 7: Foundation Details

    Foundation Details FIG.1 350 Concrete + 150 Soil 600 Concrete + 150 Soil Clatterbridge Spiral Slide Rope Tunnel Bridge Firefighters Pole 90 x 90 Ramp Ramp 90 x 90 REF: ZM101 - FORT BELKNAP pg 7 of 30...
  • Page 8: Surfacing Details

    Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: ZM101 - FORT BELKNAP pg 8 of 30...
  • Page 9 ZM101c/d/e/f /g/h/i/j/k/l/m/n/o/p and install them Follow fundation details and using 128 x FM80 ‘Brass Screws’ Counterbores BACK facing outside FRONT NOTES: Attach one plate on every side, with staggered heights (16 POST = 64PLATES) REF: ZM101 - FORT BELKNAP pg 9 of 30...
  • Page 10 Using M12 - 16x 150mm square cup bolt / 16x NYLOCS / 16x COVERED END CAPS QTY x4 Attach the Timbers ZM101w/y/z to the timbers ZM101e/f/g/h Using M12 - (4x 200mm), (4x230mm) SQUARE CUP HEX BOLTS/ 8x NYLOCS / 4x COVERED END CAPS REF: ZM101 - FORT BELKNAP pg 10 of 30...
  • Page 11 Installation Instructions Attach theTimbers ZM101b/q and Hexboard to the timbers ZM101c/e/g/i Using 15x FM80 ‘Brass Screws’ HEXBOARD Attach theTimbers ZM101x to the timbers ZM101b/y Using 16x FM80 ‘Brass Screws’ 4x FM120‘Brass Screws’ REF: ZM101 - FORT BELKNAP pg 11 of 30...
  • Page 12 Installation Instructions Attach the FRONT FLOOR to the Timbers ZM101s/y/x Using 8x FM80 ‘Brass Screws’ Attach theTimbers ZM101x to the timbers ZM101s/y Using 30x FM80 ‘Brass Screws’ / 4x FM120 ‘Brass Screws’ REF: ZM101 - FORT BELKNAP pg 12 of 30...
  • Page 13 Attach the Timbers ZM101q/ak to the timbers WO101j/o/p Using 14x FM80 ‘Brass Screws’ 8x FM120 ‘Brass Screws’ Attach theTimbers ZM101x to the timbers ZM101s/y Using 14x FM80 ‘Brass Screws’ 4x FM120 ‘Brass Screws’ REF: ZM101 - FORT BELKNAP pg 13 of 30...
  • Page 14 Using M12 - (2x 230mm) ,(4x 200mm) square cup bolt / 6x NYLOCS / 2x COVERED END CAPS Attach the Timbers ZM101x to the timbers ZM101s/y Using M12 - (1x 170mm) / 1x NYLOCS / 2x FM120 ‘Brass Screws’ REF: ZM101 - FORT BELKNAP pg 14 of 30...
  • Page 15 Using (2x 170mm) M12 - square cup bolt / 2x NYLOCS / Attach the Timbers ZM101x to the timbers ZM101s/y Using M12 - (1x 170mm) / 1x NYLOCS / 2x FM120 ‘Brass Screws’ REF: ZM101 - FORT BELKNAP pg 15 of 30...
  • Page 16 Using (1x 170mm) (1x 200mm) M12 - square cup bolt / 2x NYLOCS / 1x Covered end cap / 8 x FM80 ‘Brass Screws’ Attach the HEXBOARD SEATS to the timbers ZM101s/ag/afai/ah Using 21 x FM80 ‘Brass Screws’ REF: ZM101 - FORT BELKNAP pg 16 of 30...
  • Page 17 Using (1x 170mm) (3x 200mm) M12 - square cup bolt / 4x NYLOCS / 3x Covered end cap Attach the HALF ROUND to HEXBOARD RAMP and to the ZM101-r9 timbers ZM101v Using 30x FM80 ‘Brass Screws’ SIDE VIEW REF: ZM101 - FORT BELKNAP pg 17 of 30...
  • Page 18 Using (2x 200mm) M12 - square cup bolt / 2x NYLOCS / 2x Covered end cap Attach the Timber ZM101t to the timbers WO101c/e/ad Using (4x 200mm) M12 - square cup bolt / 4x NYLOCS / 4x Covered end cap REF: ZM101 - FORT BELKNAP pg 18 of 30...
  • Page 19 Using 14x FM 80Brass Screws and TUNNEL FIXINGS *TUNNEL PLAYTEC TUNNEL LONG PART TUNNEL LONG PART 2x *HALF RING PLAYTEC TUNNEL SHORT PART *Holes on the PLAYTEC PIECES TO BE DRILLED ON SITE *TUNNEL PLAYTEC REF: ZM101 - FORT BELKNAP pg 19 of 30...
  • Page 20 Using (4x 200mm) M12 - square cup bolt / 4x NYLOCS / 4x Covered end cap / 18x FM80 Brass Screws Bolts Brass Screws Attach the ROPE BRIDGE to the TIMBERS WO101d/f/k/l and Metal Floors Using 8x NYLOCS / 8x Covered end cap (ROPE BRIDGE ) REF: ZM101 - FORT BELKNAP pg 20 of 30...
  • Page 21 Attach the CLATTERBRIDGE to the TIMBERS WO101l/n/o/ and Metal Floors Using 12x NYLOCS / 12x Covered end cap (CLATTERBRIDGE ) Attach the hexboard SIDE PANELS to the TIMBERS WO101l/n/o/ Using 18x FM80 Brass Screws REF: ZM101 - FORT BELKNAP pg 21 of 30...
  • Page 22 Using (2x 200mm) M12 - square cup bolt / 2x NYLOCS / 2x Covered end cap / 5x FM80 Brass Screws Attach the FIREFIGHTERS COVER, RAMP COVER and ZM101-r10 Using 18x FM80 Brass Screws REF: ZM101 - FORT BELKNAP pg 22 of 30...
  • Page 23 Using 29X FM80 Brass Screws Attach the TIMBERS WO101al to the TIMBERS WO101i/j Using Slide Fixings / 10x FM80 Brass Screws Holes to be drilled on site Reposition Metal floor BOLT (each side) REF: ZM101 - FORT BELKNAP pg 23 of 30...
  • Page 24 Using (2x 150mm) M12 - square cup bolt / 2x NYLOCS / 2x Covered end cap/ 84x FM80 Brass Screws Attach the timber to the metal floor Attach the HALF ROUND to the TIMBERS ZM101b/r/q/ ZM101-r3/6/7/8/9 Using 104 x FM80 Brass Screws REF: ZM101 - FORT BELKNAP pg 24 of 30...
  • Page 25 Installation Instructions Attach the HALF ROUND to the HEXBOARD ZM101-r3/8 Using 60x 7.5 x 60 ‘Brass screws’ Attach the TIMBER ZM101am to the TIMBERS ZM101g/i Using 12 x FM80 Brass Screws REF: ZM101 - FORT BELKNAP pg 25 of 30...
  • Page 26 Installation Instructions Attach the HALF ROUND to the TIMBER ZM101aa/ab ZM101-r1 Using 256x FM80 ‘Brass screws’ QTY x 3 Both Sides REF: ZM101 - FORT BELKNAP pg 26 of 30...
  • Page 27 Installation Instructions Attach the SUPPORT TIMBERS Using 60x FM80 ‘Brass screws’ / 16x FM120 ‘Brass screws’ REF: ZM101 - FORT BELKNAP pg 27 of 30...
  • Page 28 Using 2x NYLOCS / 2x Covered end cap DRILL HALF ROUND AND HEXBOARD *MAKE SURE YOU HAVE A SCRAP TIM- BER AGAINST THE UNDERSIDE OF THE HEXBOARD WHEN DRILLING (this is to ensure the hex board doesn’t ‘splinter’) REF: ZM101 - FORT BELKNAP pg 28 of 30...
  • Page 29: Additional Dimensions

    Additional Dimensions REF: ZM101 - FORT BELKNAP pg 29 of 30...
  • Page 30 Installation Instructions CLATTERBRIDGE SLATS NEED TO BE DRILLED ON SIDE SIDE NET HEXBOARD 6x FM40 Brass Screws ZM101ap QTY x6 ROPE - R6 12x RED CAPS 12x NYLOCS 20x HALVES REF: ZM101 - FORT BELKNAP pg 30 of 30...
