Kimball Office President Assembly Instructions

President/Senator
Task/Reception Station

Tools Required

Level
Tape Measure
Cordless Drill

Package Contents

2 Flat Brackets
(attach worksurfaces)
32 #10 x 1" Panhead Screws
(worksurfaces)
Foam tape (light blocker)

Installation

1. Task/Reception Stations are comprised of a Corner Unit,
one Left Return, and one Right Return. These units will not
stand alone, nor attach to other units in the series. Position
the units in their approximate desired location. (Figure A).
2. Unroll the foam tape and apply a single strip of tape, gray
side down, to the center of the exposed ends of the Corner
Unit. Remove the protective film from the exposed side of
each piece of tape. The foam tape is used as a light blocker
when panels are installed next to each other. (Figure A).
3. Level all units. Attach two flat brackets to the underside of
the worksurface on the Corner Unit on each side at the
locations shown in Figure B, using the provided #10 x 1"
Panhead Screws. Center the brackets with the edge of the
worksurface.
4. Position the Returns against the Corner Unit. Pull all Units
together so that the Corner and Return Unit worksurfaces
are flush and tight against each other with no gaps.
Note: The worksurfaces can be unscrewed from cleats
and adjusted to align, if necessary.
Align the Corner Unit Modesty Panels and the Return
Modesty Panels so they are flush and tight against each
other with no gaps. This can be done by adjusting the leg
levelers up/down on the Corner and Return Units.
(Figure B).
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741516 Revision A-04
#2 Phillips Head Bit
" Drill Bit
2 Flat Brackets
(attach modesty panels)
32 #8 x " Panhead Screws
(modesty panels)
Casegoods Assembly Instructions

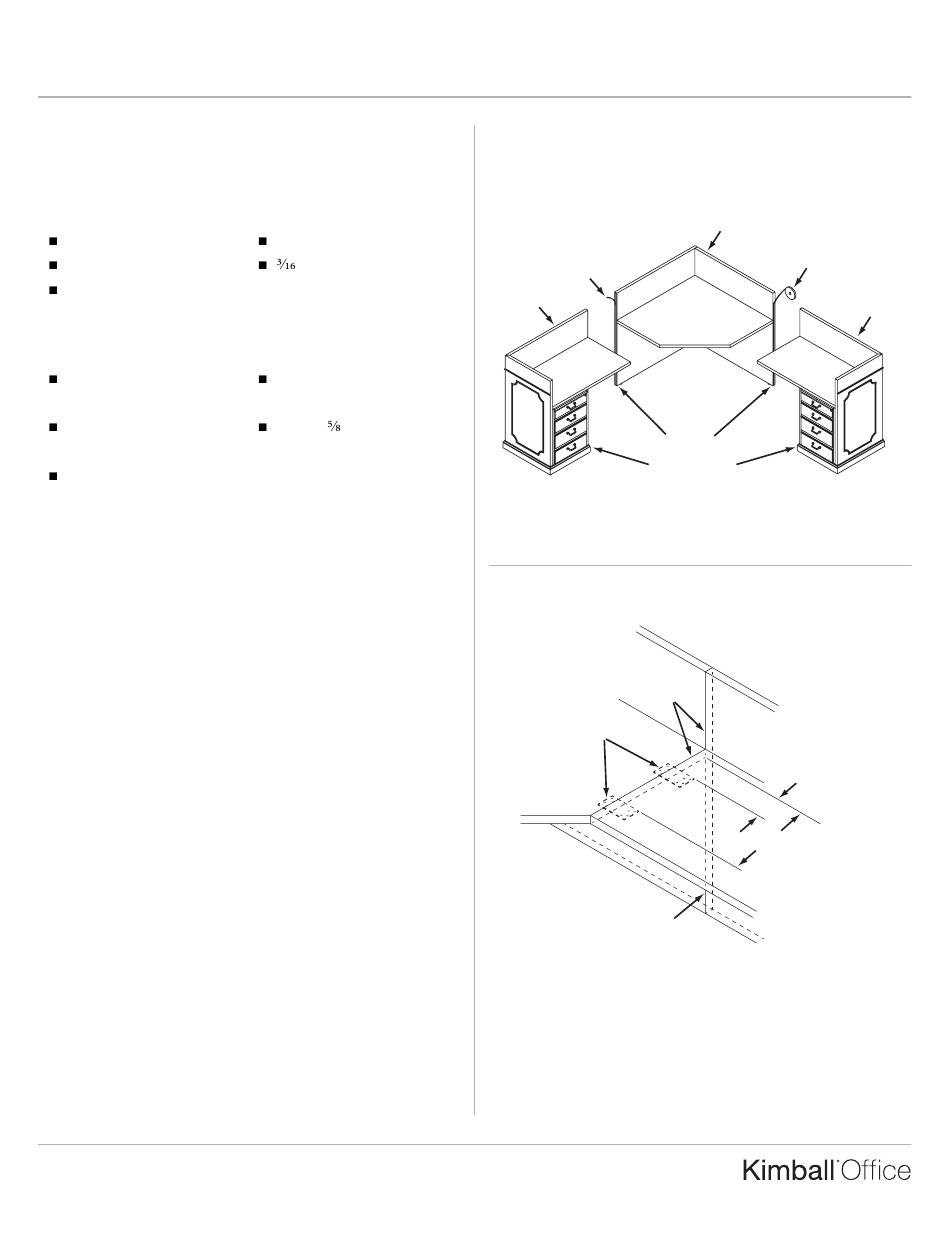

Figure A
Peel off
Protective Film
Left Return
Use Levelers
to adjust/align
Figure B
Flush with
no gaps
Center brackets on
edge of worksurface
Flush with
no gaps
Page 1 of 2
Corner Unit
Apply Foam Tape
Right Return
4"
19"
