Kimball Office President Assembly Instructions

President
Component Lateral File,
Pedestals, and Storage Unit
Tools Required
Tape Measure
Power Screwdriver
Level
Package Contents
For Base:
2 #8 x 1 1 ⁄ " Panhead Screws
4
(per lateral file or pedestal)
2 #8 x 5 ⁄ " Panhead Screws
8
(per lateral file or pedestal)
4 #8 x 1 1 ⁄ " Panhead Screws
4
(per storage unit)
Installation
1. The component assembly uses a combination of modular
storage components and a component top and base which is
ordered separately. (Figure A). Remove shipping screws that
secure drawers and discard. Remove drawers from pedestals
by untying the anti-tip interlock cord. Review cord
attachment before removing drawers as cord must be re-tied.
Note: When drawers are re-installed make sure they are
returned to the same locations.
2. Place worksurface upside down on a clean, soft surface.
Position pedestals upside down on underside of worksurface
so they are flush with the back of the top and equal distance
from side to side. (Figure B). If a kneespace credenza is being
created, insert pedestals 1
3. Attach pedestal to underside of worksurface utilizing
pre-bored holes of cleats/stretcher rails and provided
#8 x 1 1 ⁄ " panhead screws. (Figure B).
2
Note: Special care should be taken not to over drive the
screws through the worksurface.
Note: If installing file pedestals only, proceed to Step 6.
4. If installing a combination of file and storage units, the base
will need to be installed to the storage units at this time,
before turning unit upright. The base attaches to the
underside of storage pedestals and inside of file pedestals.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741566 Revision C-05
#2 Phillips Head Bit
3 ⁄ " Drill Bit
16
For Top:
8 #8 x 1 1 ⁄ " Panhead Screws
2
(per modular unit)
1 ⁄ " from each edge of the top.
2
Casegoods Assembly Instructions

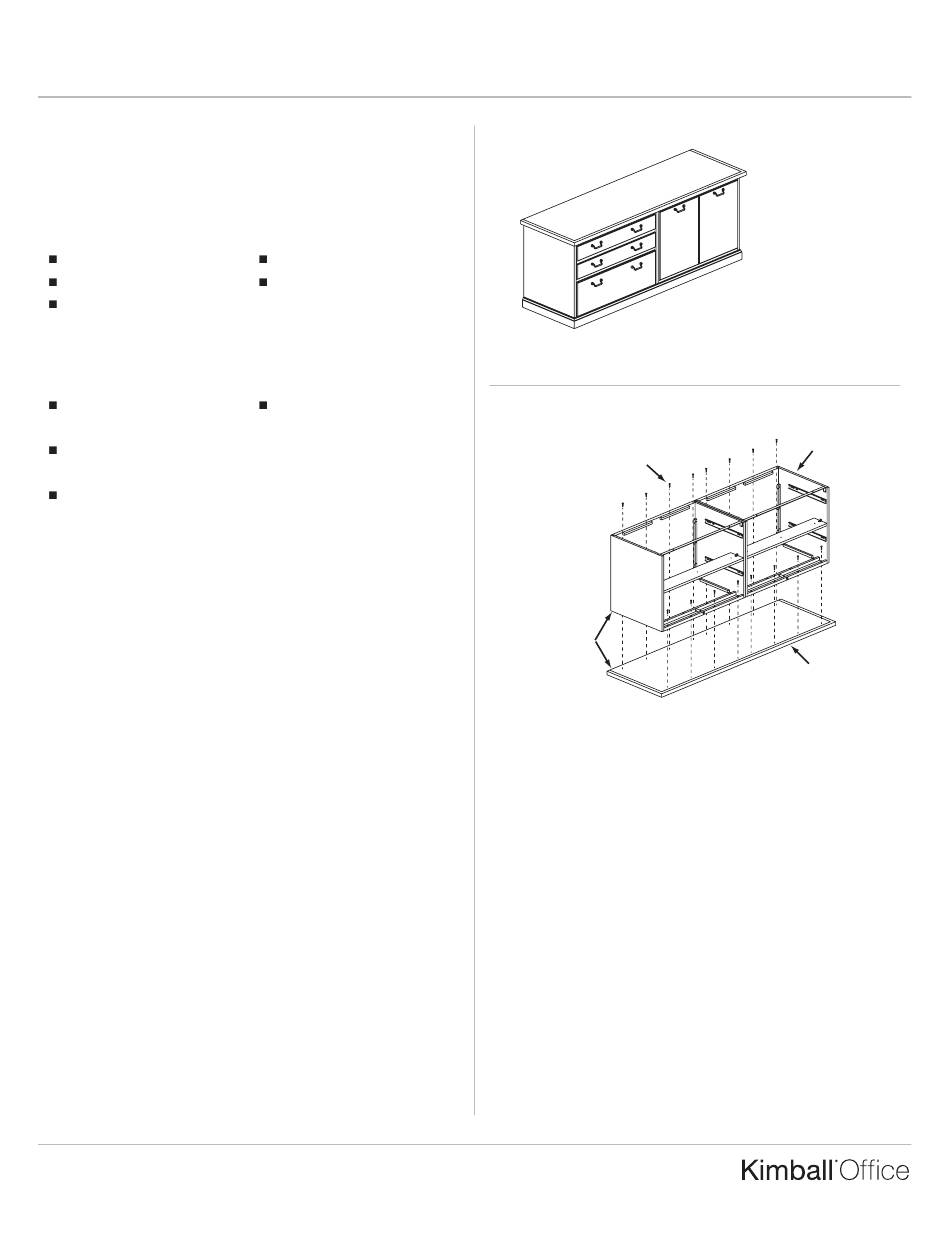

Figure A
Figure B
#8 x 1 1 ⁄ "
2
Panhead Screw
Pedestals flush
with back, equal
distance from
each end
Page 1 of 2
