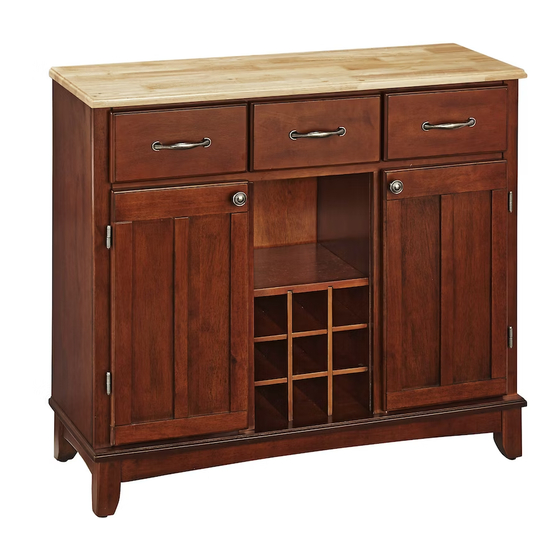

Buffet
IMPORTANT NOTE
.
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
A.
B.
Side Panel
Side Panel
1 Pc.
1 Pc.
K.
L.
Front Upright
Fixed Shelf
2 Pcs.
1 Pc.
O.
P .
Wine Grid
Wine Grid
2 Pcs.
2 Pcs.
Hex Wrench
1 pc.
Small Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver, Drill, 3/8" Drill Bit Level
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
C.
D.
Middle Panel
Middle Panel
1 Pc.
1 Pc.
M.
Base
1 Pc.
Q.
Shelf
2 Pcs.
R.
Door
1 Pc
M6x35
Cam Lock
Head Cap Bolt
4 Pcs. (+1 extra)
14 Pcs. (+2 extra)
M6x50
Head Cap Bolt (long)
Cross Dowel
8 Pcs. (+1 extra)
8 Pcs. (+1 extra)
E.
F.
Back Panel
Back Upright
3 Pcs.
2 Pcs.
M3.5x13
Wood Screw (short)
Cam Lock Screw
for Base Drawer
14 Pcs. (+1 extra)
12 Pcs. (+1 extra)
M3.5x25
Wood Screw (long)
Adjustable Pin
8 Pcs. (+2 extra)
for Side Drawer
24 Pcs. (+1 extra)
,
G.
Back Stretcher
1 Pc.
H.
Back Stretcher
1 Pc.
I.
Front Stretcher
1 Pc.
J.
Front Stretcher
1 Pc.
N.
Leg
2 Pcs.
S.
Door
(Please refer to the last page of these
instructions for drawer assembly steps.)
1 Pc
M4x25
Machine Screw
8 Pcs.
M3.5x16
Wood Screw
Pull Handle
for Back Panel
3 Pcs.
12 Pcs. (+1 extra)
T.
Drawer
3 Pcs.
Knob
2 Pcs.
