88 5180 181
Arts & Crafts

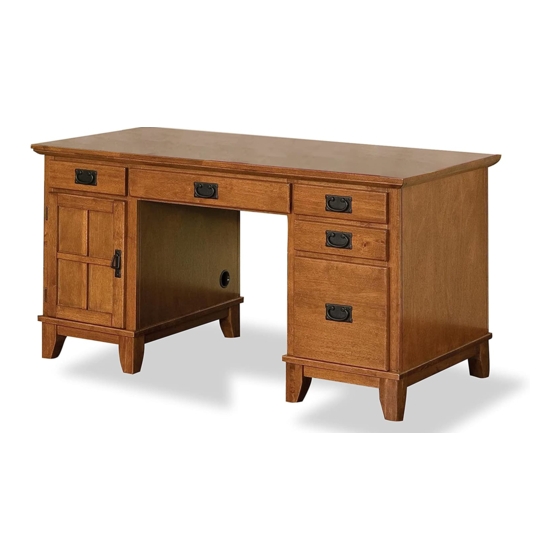

Computer Desk
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Left Unit Part List
D.
Front Rail
1 pc.
E.
Front Rail
1 pc.
I.
Base
1 pc.
Hardware List
Small
Hex Wrench
1 pc.
Wood Screw
4 pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
F.
Side Panel
1 pc.
K.
J.
Drawer
Leg
1 pc.
2 pcs.
(Knock-Down Construction, please refer to
the last page of these instructions for steps
to assemble drawers)
Hex Wrench
Head Cap Bolt
1 pc.
8 pcs. (+1 extra)
Wood Screw (Long)
8 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
Left Unit
G.
Side Panel
1 pc.
Cam Lock
8 pcs.(+1 extra)
Adjustable Pin
Cam Lock Screw
8 pcs.(+1 extra)
4 pcs. (+2 extra)
Tools recommended for assembly : Level
H.
Back Panel
1 pc.
L.
M.
Door
Shelf
1 pc.
1 pc.
Machine Screw
Drawer
4 pcs.
Pull Handle
1 pcs.
Door
Pull Handle
1 pc.
Revised date : 27Feb2012
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles Arts & Crafts 88 5180 181
Summary of Contents for Home Styles Arts & Crafts 88 5180 181
- Page 1 4 pcs. (+2 extra) 4 pcs. (+1 extra) 8 pcs. (+1 extra) 1 pc. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com Revised date : 27Feb2012...
- Page 2 Assembly Instructions 2/4 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future. Cam Lock Screw STEP 1 Put Cam Lock Screws into the pre-drilled holes of Side Panel (F),(G) and tighten.
- Page 3 Assembly Instructions 3/4 STEP 3 Attach Base (I) to the unit with Head Cap Bolts. Attach Leg (J) to Base (I) with Head Cap Bolts. (Figure 1) Head Cap Bolt (Figure 2) Machine Screw STEP 4 Turn the unit to its upright position. Slide Drawer (K) into place.
-
Page 4: Part List
Assembly Instructions 4/4 Drawer (K) STEP 1 Attach K1 to K3 and K4, using Phillips screwdriver long wood screws (4X) tighten halfway. Attach K2 to K3 and K4 using long wood screws (4X) Figure 1 tighten halfway. (see Figure 1) MAKE SURE ROLLER IS ON THE BACK STEP 2... -
Page 5: Hardware List
Pull Handle 12 pcs. (+1 extra) 28 pcs. (+1 extra) 8 pcs.(+1 extra) 3 pcs. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com Revised date : 27Feb2012... - Page 6 Assembly Instructions 2/5 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future. Cam Lock Screw STEP 1 Put Cam Lock Screws into the pre-drilled holes of Side Panel (N), (O) and tighten.
- Page 7 Assembly Instructions 3/5 STEP 3 Attach Base (I) to the unit with Head Cap Bolts. Attach Leg (J) to Base (I) with Head Cap Bolts. Head Cap Bolt STEP 4 Turn the unit to its upright position. Slide Drawer (K) and (P) into place.
- Page 8 Assembly Instructions 4/5 Drawer (K) STEP 1 Attach K1 to K3 and K4, using Phillips screwdriver long wood screws (4X) tighten halfway. Attach K2 to K3 and K4 using long wood screws (4X) Figure 1 tighten halfway. (see Figure 1) MAKE SURE ROLLER IS ON THE BACK STEP 2...
- Page 9 Assembly Instructions 5/5 Drawer ( ) P STEP 1 Attach P1 to P3 and P4, using Phillips screw driver long wood screws (8X) tighten halfway. Attach P2 to P3 and P4 using long wood screws (8X) Figure 1 tighten halfway. (see Figure 1) MAKE SURE ROLLER IS ON THE BACK STEP 2...
- Page 10 24 pcs. (+1 extra) 2 pcs. 1 pc. 1 pcs. 6 pcs. (+1 extra) 1 pc. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com Revised date : 27Feb2012...
- Page 11 Assembly Instructions 2/2 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future. STEP 1 Attach Rail (C5) and Back Part (C4) to Side Part (C2) with Head Cap Bolts, then attach Side Part (C3) to...
