IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.
Part List
A.
Seat
1 pc.
Hardware List
Wrench (large)
1 pc.
Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tool(s) required for assembly: Slotted screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 06654 0083

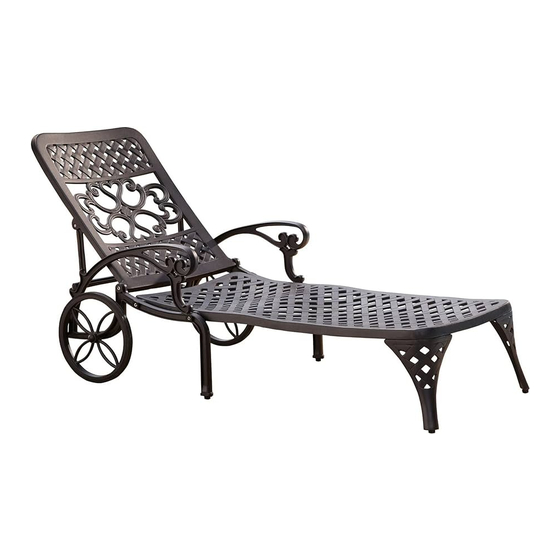

Chaise
E.
Support
1 pc.
M8x35
Bolt
Flat Washer (medium)
6 pcs. (+1 extra)
6 pcs. (+1 extra)
Large
Hex Wrench
Flat Washer (large)
1 pc.
2 pcs. (+1 extra)
M10x78
Flat Washer (small)
Wheel Bolt
2 pcs. (+1 extra)
2 pcs. (+1 extra)
B.
C.
Arm
Arm
1 pc.
1 pc.
F.
Leg
2 pcs.
Spring Washer (medium)
6 pcs. (+1 extra)
Spring Washer (large)
2 pcs. (+1 extra)
Spring Washer (small)
2 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
Back
1 pc.
G.
Wheel
2 pcs.
M8
Nut Cap
Nut (medium)
6 pcs. (+1 extra)
6 pcs. (+1 extra)
M10
M8x40
Head Cap Bolt
Nut (large)
2 pcs. (+1 extra)
6 pcs. (+1 extra)
M6
M6x50
Nut (small)
Round Head Bolt
2 pcs. (+1 extra)
2 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles 20 06654 0083
Summary of Contents for Homestyles 20 06654 0083
- Page 1 Nut (small) Round Head Bolt 1 pc. 2 pcs. (+1 extra) 2 pcs. (+1 extra) 2 pcs. (+1 extra) 2 pcs. (+1 extra) 2 pcs. (+1 extra) Tool(s) required for assembly: Slotted screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/5 Head Cap Bolt STEP 2 Attach Arms (B) and (C) to unit with Head Cap Bolts, tightening Head Cap Bolts only halfway. (See Figure 2) Tighten all Head Cap Bolts. Figure 2...
- Page 4 Assembly Instructions 4/5 Flat Washer (large) Spring Washer (large) Nut (large) Plastic Ring Wheel Bolt STEP 3 Orientate Wheels (G) so plastic ring in wheels (G) is to outside, then attach Wheels (G) to unit with Wheel Bolts, Flat Washers (large), Spring Washers (large) and Nuts (large). (See Figure 3) Wrench (large) Nut (large)
- Page 5 Assembly Instructions 5/5 Nut (small) Spring Washer (small) Flat Washer (small) Round Head Bolt Head Cap Bolt STEP 4 Turn unit over to its upright position. Attach Back (D) to unit with Head Cap Bolts, tightening bolts only halfway. Attach Support (E) to Back (D) with Round Head Bolts, Flat Washers (small), Spring Washers (small) and Nuts (small), tightening Round Head Bolts only halfway.
- Page 6 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
